High Performance Industrial computers:

Industrial computers come in a wide range of formats, but all are designed to provide long-term quality and reliability in a range of industries, including digital signage and emergency services.

Ranging from standard industrial PCs to more complex SOMs, embedded computers, panel pcs, rugged computers, and embedded box to rack mount computers, you need to know that you have the right solution before committing to a hardware decision that may not suit your business.

Tekdis LLC offers industrial computing power in a range of form factors, from an industrial IOT, industrial automation, industrial PC to complete control system solutions that suit your specific needs. From interfacing and communication to operating systems, we appreciate that every company has unique requirements and we can help you to fulfill them.

Our team are even happy to help with the installation and maintenance of Power-Over-Ethernet systems, such as IP cameras and card readers. If your company is specialised and requires precise technology, we can integrate it into your existing system.

Units with built in intel core, Jetson or Xavier modules, to MXM based Nvidia GPUs or PCIe expandable are available.

AI is becoming more and more popular, so you require processing power if you're to keep up with it. Tekdis offers a range of processing levels designed to work with a selection of GPUs and AI requirements, giving you the ultimate flexibility in your infrastructure. This works closely with our range of display options, including embedded single board computers, Open Frame Monitors, LTE Gateways and Industrial Networking products.

If you're interested in high performance industrial computing solutions for your business, get in touch with the Tekdis LLC team today and find out more about what we can do for you.

Filter
Category
CPU
DIN-Mountable
Memory
AI Enabled
POE Ports
USB Ports
LAN Ports
IP Rating
Digital I/O Ports
Expansion
Mini-PCIe Expansion

193 Results Shown

Page
per page
Set Descending Direction
  1. ICO120-E3350 DIN-rail Fanless Embedded System Celeron N3350
    ICO120-E3350 DIN-rail Fanless Embedded System Celeron N3350

    DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, COM/CAN/DIO, 2 LAN, 2 USB, and HDMI

    Key Features:

    • Extreme cost-effective with fanless and cableless design
    • Intel Celeron processor N3350, reliable F1 stepping version CPU
    • COM/CAN/DIO, 2 USB, and 2 GbE LAN
    • Wide operating temperature range from -40°C to +70°C
    • 9 to 36 VDC wide range power input (typical: 12-24 VDC)
    • OVP, UVP, OCP, RPP power protection design
    • eAPI for intelligent remote monitoring software integration
  2. eBOX710A Fanless Embedded System 11th/10th Gen Intel
    eBOX710A Fanless Embedded System 11th/10th Gen Intel

    Fanless Embedded System with LGA1200 Socket 11th/10th Gen Intel Core i9/i7/i5/i3 or Celeron Processor, Intel H420E, HDMI, DisplayPort, 6 USB, 4 LAN, PCIe x4 slot, and 9 to 48 VDC

    Key Features:

    • 10th/11th gen Intel Core i9/i7/i5/i3 or Celeron processor up to 65W
    • 4 GbE LAN and 4 COM ports
    • Dual 2.5" SATA HDD drive bays
    • 2 HDMI and 1 DisplayPort with dual view supported
    • -40 °C to +70 °C wide operating temperatures
    • Wide range power input from 9 to 48 VDC
    • 1 PCIe x4 slot for I/O card
    • Flexible I/O window slot for mPCIe modules
  3. NDiS-B338 Fanless Embedded PC Celeron J6412
    NDiS-B338 Fanless Embedded PC Celeron J6412

    Slim/fanless player with extended temperature durability, HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface

    Key Features:

    • Intel Celeron J6412 processor
    • Support 3 x HDMI 2.0 output
    • Support 12V~24V DC input
    • Compact and slim design (H: 38.8mm)
    • 2 x DDR4 up to 32G
    • 1 x M.2 2280 Key M for optional storage device
    • 1 x M.2 3042/3052 Key B for optional LTE or 5G modules
    • 1 x mini-PCIe for optional Wi-Fi and LTE
    • Fanless design
  4. NISE70-T01/T02/T03 Celeron Dual Core Fanless System
    NISE70-T01/T02/T03 Celeron Dual Core Fanless System

    Intel Celeron 6305E Processor Dual Core Fanless System

    Key Features:

    • Onboard Intel Celeron 6305E Processor
    • 4 x HDMI
    • 3 x USB 3.0, 1 x USB 2.0
    • 1 x RS232/422/485, 1 x RS232
    • 3 x GbE LAN ports; support WoL, teaming and PXE
    • Onboard TPM 2.0 chip
    • 1 x M.2 socket for storage/4G LTE/5G modules
    • 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
    • Support operating temperature from-5 to 55 Celsius degree
    • Support+12V to 24VDC input; support ATX power mode
  5. AIE900A-AO Fanless Edge AI System w/ NVIDIA Jetson AGX Orin
    AIE900A-AO Fanless Edge AI System w/ NVIDIA Jetson AGX Orin

    Fanless Edge AI System with NVIDIA Jetson AGX Orin, 1 HDMI, 2 2.5GbE, 8 PoE, 6 USB, 8-CH DI/DO, and 2 COM/CAN for 5G and Robotics Applications

    Key Features:

    • NVIDIA Jetson AGX Orin with 1792-core NVIDIA Ampere GPU
    • 1 M.2 Key B slot for 5G/LTE, 1 M.2 Key E slot for Wi-Fi 6(E)
    • 24 VDC with ignition power control
    • Supports eight PoE for IP cameras and LiDAR connectivity
    • -30°C to +50°C operating temperature range
    • Supports device management and optional OTA deployment powered by Allxon
  6. AIE100A-ONX Fanless Edge AI System w/ NVIDIA Jetson Orin NX SoM
    AIE100A-ONX Fanless Edge AI System w/ NVIDIA Jetson Orin NX SoM

    Fanless Edge AI System with NVIDIA Jetson Orin NX SoM, 1 x HDMI, 1 x GbE LAN, 1 x GbE PoE and 2 x USB, Remote Management Service Empowered by Allxon

    Key Features:

    • NVIDIA Jetson Orin NX with 1024-core NVIDIA Ampere GPU
    • High AI computing performance for GPU-accelerated processing
    • Ideal for edge AI smart city applications
    • Supports one 15W GbE PoE for camera
    • Wide operating temperature from -30°C to +50°C
    • JetPack supported
    • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
  7. DRP-R150C - 150W 24V output
    DRP-R150C - 150W 24V output

    150W, Singe Output 24V Continuous Output Power, Power DRP-R150C Sharing, Redundancy Function and Din-Rail Mounting.

  8. iBoot-G2+ Web Power Switch
    iBoot-G2+ Web Power Switch

    Control up to 3 independent outlets to protect even more devices.

    Key Features:

    • Web-Controlled Power Switch
    • Expansion to 3 Outlets
    • AutoPing and HeartBeat - Auto Reboot
    • Cloud Service - Manage from Anywhere
    • UL Listed for Safety and Reliability
  9. iBoot-G2S Web Power Switch
    iBoot-G2S Web Power Switch

    Has a built-in 10/100 network switch that makes installation in those hard-to-reach locations a breeze.

    Key Features:

    • Web-Controlled Power Switch
    • Integrated 10/100 Network Switch
    • AutoPing and HeartBeat - Auto Reboot
    • Cloud Service - Manage from Anywhere
    • UL Listed for Safety and Reliability
  10. DRPC-120-BT Fanless DIN-Rail Embedded System
    DRPC-120-BT Fanless DIN-Rail Embedded System

    Fanless embedded system, Intel Bay-Trail E3845 1.91 GHz

    Key Features:

    • Intel Atom E3845 1.91GHz
    • 1 x 2.5' SATA HDD/SSD drive bay
    • DDR3L 1.35V SO-DIMM support
    • Programmable OLED display
    • 8-bit digital I/O (4-bit inputs/outputs)
    • IEI iRIS-2400 solution
  11. DRPC-130-BT Fanless DIN-Rail Embedded System
    DRPC-130-BT Fanless DIN-Rail Embedded System

    A fanless embedded system powered by the Intel Atom x5-E3930 processor, it is designed for harsh environment applications, and supports DIN rail mounting method.

    Key Features:

    • Fanless design
    • Intel Atom x5-E3930 processor 1.3GHz (up to 1.8 GHz, dual-core)
    • Supports DDR3L SO-DIMM (system max. 8 GB)
    • Supports one mSATA and one 2.5” SATA HDD
    • Wide range DC power input (12 V ~ 24 V)
    • Extended temperature fanless design supports -20°C ~ 60°C (with SSD)
    • Two PCIe Mini card slots
    • Four RS-232/422/485 serial interfaces
    • 8-bit digital I/O (4-bit output, 4-bit input)
    • Supports two GbE, four USB 3.0 and two HDMI 1.4b
    • Low power consumption
    • DIN rail mounting support
    • RoHS compliant
  12. E2SS-32R1
    E2SS-32R1

    2.5” to Dual SATA III RAID Module

  13. E2SS-32R2
    E2SS-32R2

    2.5” to Dual M.2 RAID Module

  14. EBC-3000
    EBC-3000

    Mini-ITX Chassis for High Power Consumption Applications

  15. EBC-3100
    EBC-3100

    Mini-ITX Chassis for High Power Consumption Applications

  16. eBOX100-312-FL - Pentium N4200 Fanless Embedded PC, PXE remote boot
    eBOX100-312-FL - Pentium N4200 Fanless Embedded PC, PXE remote boot

    Fanless Embedded System with Intel Celeron N3350 & Pentium N4200, 2 HDMI, 2GbE LANs and 6 USB

  17. eBOX560-300-FL - Pentium N3710, 2 HDMI supporting 4k resolution
    eBOX560-300-FL - Pentium N3710, 2 HDMI supporting 4k resolution

    Fanless Embedded System with Intel® Pentium® N3710 1.6 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCIe Mini Card

  18. eBOX560-500-FL - i7-6600U, Ultra compact design
    eBOX560-500-FL - i7-6600U, Ultra compact design

    Fanless Embedded System with Intel® Core™ i7-6600U/i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and PCI Express Mini Card Slot

  19. eBOX560-512-FL - i5-7300U, 2x HDMI, TPM 1.2
    eBOX560-512-FL - i5-7300U, 2x HDMI, TPM 1.2

    Fanless Embedded System with Intel® Core™ i5-7300U & Celeron® 3965U, 2 HDMI, 2 GbE LANs, 4 USB 3.0 and PCI Express Mini Card Slot

  20. eBOX565-312-FL - Celeron N3350, 1-CH PoE
    eBOX565-312-FL - Celeron N3350, 1-CH PoE

    Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE

  21. eBOX565-500-FL - i5-6300U, supports 9.5K, WoL & PXE
    eBOX565-500-FL - i5-6300U, supports 9.5K, WoL & PXE

    Fanless Embedded System with Intel® Core™ i5-6300U/i3-6100U & Celeron® 3955U, 2 HDMI, 2 GbE LANs, 4 USB 3.0, 2 COM and 9 to 36 VDC

  22. eBOX625-312-FL - Pentium N4200, 2x mPCIe, 1 SIM slot
    eBOX625-312-FL - Pentium N4200, 2x mPCIe, 1 SIM slot

    Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/ Pentium® N4200 2.5 GHz, HDMI, VGA, 2 GbE LANs, 6 USB and 3 COM

  23. eBOX625-853-FL - Celeron N3160, Intel VT-x
    eBOX625-853-FL - Celeron N3160, Intel VT-x

    Fanless Embedded System with Intel® Celeron® Processor N3160, VGA, HDMI, 4 COM, 2 GbE LANs, 4 USB, and 2 PCI Express Mini Card Slots

  24. eBOX627-312-FL - Pentium N4200, 9~36vDC, wide op temp range
    eBOX627-312-FL - Pentium N4200, 9~36vDC, wide op temp range

    Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC

193 Results Shown

Page
per page
Set Descending Direction

Industrial Computing Solutions

Every industry relies on industrial computing for a variety of uses. From automation to machine vision to digital signage to emergency service fleets, industrial computers offer reliability and long-term availability. Some of the most common industrial computing solutions include systems on modules (SOMs), motherboards, embedded box computers, and rack mount computers.

At Tekdis, we offer a wide selection of industrial computers to fit a variety of needs. Building complete solutions to fit customer requirements, we know how to choose the best storage, communication modules, and licensing for operating systems so that you find the best computing solution for your business.

With Tekdis products, you can:

  • Enjoy models with power-over-ethernet to connect IP cameras or RFID readers

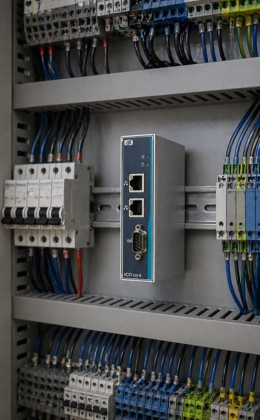

  • Utilise DIN rail mounting options for mounting into cabinets and routing cables
  • Integrate the latest AI processing to stay up-to-date with the latest trends
  • Choose from a range of displays, including open frame monitors, LTE gateways, and industrial networking products

No matter what industry you’re in, you need quality industrial computing solutions. We know that everyone’s needs are different, and we are prepared to find the perfect technology for your purposes. Get in touch with our team today to find out how we can offer solutions to fit your exact requirements.

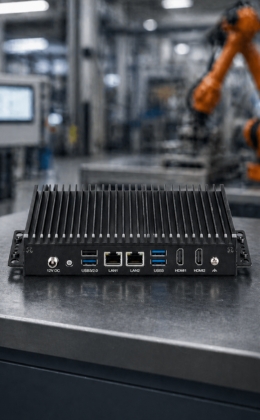

Embedded Computers/PCs

In the broadest definition, embedded computers or personal computers refer to any computer that uses hardware and software to perform a very particular function. They are designed to fill a specific purpose. These computers are very reliable and work with a variety of applications for convenience and utility.

You can find these kinds of microprocessors or microcontroller-based systems in many of your everyday items: calculators, cell phones, cameras, vending machines, cars, even your coffee pot. Because they are designed to complete one specific task, these computers are stripped-down, slim, and lightweight. Compare this to the desktop computer which performs innumerable functions but also takes up much more space.

You can identify embedded computers with four characteristics:

  1. Small Form-Factor. Space efficiency is a priority when designing embedded computers since they often need to fit into small devices.
  2. Lower Power Components. With power-efficient processors and low thermal design power, there is no need for bulky cooling components.
  3. Minimal Upgradeability/Expansion. Embedded computers are designed for a specific task, so there isn’t much room for upgrading/altering their performance.
  4. Low Hardware Cost. The simplistic design makes for low-costs manufacturing.

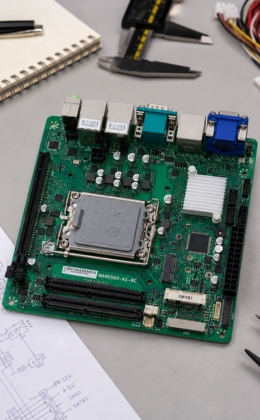

Embedded Single Board Computers (SBCs)

Available in a range of form factors with CPU and IO options, embedded single board computers (SCBs) are useful for many applications. Options include PICO, ATX, COM Express, SMARC, Q7-sized systems on modules, and more.

Plug COM Express, SMARC, and Q7-sized systems on modules into a carrier board with the high-density connector and the board will provide the IO. Also, use the PCMG for backplane-based designs in rack systems.


Types of CPU

ARM-Based

Featuring fewer transistors, ARM-based CPUs are low-cost, consume less power, and create less heat. Because of these features, they are lightweight, portable, and great for battery-powered devices. Tekdis offers ARM-based modules and single-board computers that support both Linux and Android OS.

AMD/Nvidia

For complex graphic applications like gaming and digital signage, AMD offers high-performing GPU solutions. Nvidia is also a leading supplier of x86 CPUs and chipsets for robotics, advanced driver advisory systems, license plate recognition technology, and intelligent machines.

Atom/Celeron/Pentium

Intel Atom processors are ideal for small and compact computing needs, including smartphones, tablets, and other internet-enabled mobile devices. For next-level performance, Celeron and Pentium are great alternatives. They feature improved graphics but are still economical.

i3/i5/i7

i3 processors have two cores and perform specific functions for targeted applications. Core i5 processors have four to six cores and are mid-tier processors. Core i7 has as many as eight cores and features the highest specs. The higher the number of cores, the higher the clock speed, which improves overall performance. i5 and i7 are used for more extensive processing, decoding, and graphics performance. While i3 and i5 require a Windows IOT Value license, i7 requires a high-end license.

Xeon

Xeon processors are some of the highest quality in the industry. They have the most cores and the highest clock speeds as a result. This Intel brand of x86 microprocessor supports error-checking and correcting memory, perfect for non-consumer workstations, servers, and embedded applications.




Brands Used for Embedded PCS/Computers

Tekdis offers embedded computing boards from two manufacturers: Axiomtek and IEI Technology. These two manufacturers are some of the most respected in Taiwan.

Axiomtek

Axiomtek was developed in 1990. Today, their innovative designs are recognised all over the world. For reliable, state-of-the-art computing solutions, there is no better supplier. They take great pride in their products and it shows. As the leading designer and manufacturer of industrial computers and embedded field, they offer a wide range of solutions, including:

  • Embedded board
  • System on module
  • Single board computer
  • Embedded system
  • Industrial barebone
  • Network appliance
  • Touch panel computer
  • Human-machine interface
  • Medical PC
  • Industrial network
  • Digital signage

IEI Technology

Ideal for computer-based applications, IEI technology works in alliance with Intel, Microsoft, and Amazon to offer a variety of devices, systems, applications, and more to the industrial computing industry. They strive to make advanced technology convenient and easy to use for all. IEI Technology products can be used for computer-based applications such as:

  • Factory automation
  • Computer telephony integration
  • Networking appliances
  • Security
  • Systems

It is also popular in fields like:

  • rtificial intelligence
  • The internet of things
  • National defense
  • Emergency services
  • Transportation
  • Communication base stations
  • Medical instruments.




Features of Embedded PCS/Computers

8th/9th GEN CPU

Enjoy the highest clock speeds from core series embedded motherboards in 8th and 9th generation CPUs. These are offered in many i3, i5, and i7 models and have the highest clock speeds available.

9~36VDC Vehicle Use

9~36VDC are the most common embedded PC for automotive and industrial installs because of their wide input voltage. This feature is necessary for mobile applications and in battery-backed environments.

NVidia GPU

When it comes to embedded AI processors, there is no better supplier than Nvidia. From the NANO to TX2 to Xavier models, Nvidia GPUs are widely popular for robotics, advanced driver advisory systems, license plate recognition, and intelligence machines. AI processing ranges include 1050, 1080, RTX2080, Tesla, and Quadro models.

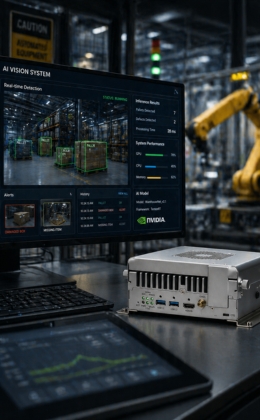

AI Processing

With artificial intelligence (AI) continually being integrated into everyday life, Tekdis offers a variety of Nvidia AI hardware to fit your needs. AI requires FPU/GPU to make efficient calculations and human-like decisions. Utilise AI for applications like machine learning, license plate recognition, advanced driver assistance systems, driverless vehicles, and robotics.

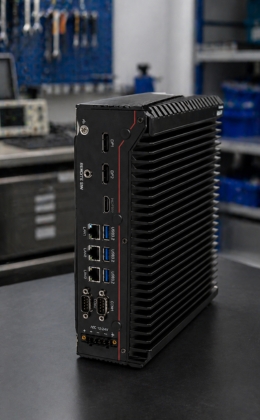

Fanless

In an industrial setting where excessive dust and dirt circulate through the air, fanless PCs are essential. Instead of using cooling fans, heat is conducted through the case or through the airflow over the machine. This protects the machine from dust, prolonging its life, and it also makes for silent operation. Tekdis has a growing offering of fanless options that are great for digital signage, industrial automation, mobile computing, and medical applications.

IP67 Rated

Dustproof and water-resistant, IP67 is a must if your industrial computers are exposed to excessive dust or water. This is ideal for abattoirs, mining, military, and traffic control. No dust will enter into the machine, and it can be immersed in a meter of water for 30 minutes without damage.

Box

In terms of mounting methods and form factors, the Box PC is the most commonly used format. Box PCs are great for just about any application, including but not limited to cabinet enclosures, vehicles, digital signage displays, and other industrial applications.

CAN module

Controller area network (CAN) allows communication between microcontroller and devices. Popular for automotive and robotics applications, Tekdis offers mPCIe, M.2, and PCIe CAN bus controller cards. Use these modules to run J1938 and OBD II. It can also run along with host drivers that conform to OPENCAN and SocketCAN.

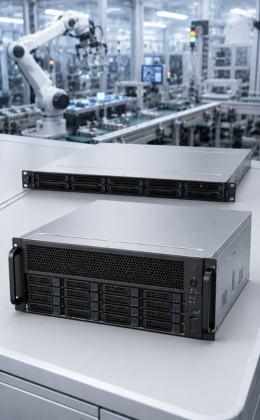

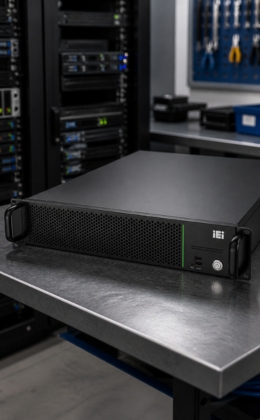

1U Rack

The 1U rack allows for the installation of single expansion cards. A rack unit is defined as 1.75 inches wide. Use a Tekdis 1U rack chassis for a variety of backplanes and processor cards.

2U Rack

Like the 1U rack, the 2U rack allows for the installation of single expansion cards. While a 1U measures 1.75 inches wide, the 2U measures 3.5 inches wide. Use a Tekdis 2U rack chassis for a variety of backplanes and processor cards.

4U Rack

Like the 1U rack, the 4U rack allows for the installation of single expansion cards. While a 1U measures 1.75 inches wide, the 4U measures 5.25 inches wide. Use a Tekdis 4U rack chassis for a variety of backplanes and processor cards.
