SKU: EMPL-G2P2

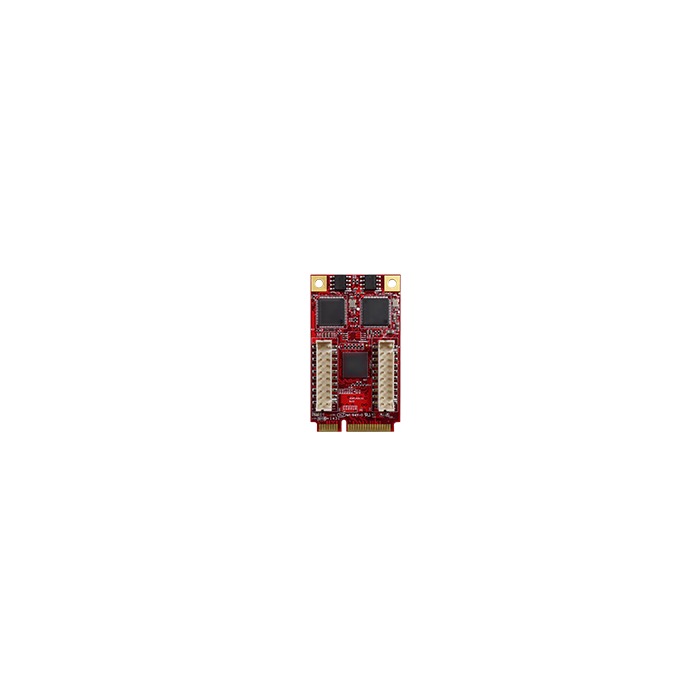

mPCIe to dual Isolated PoE+ Module

Datasheet

Description

mPCIe to dual Isolated PoE+ Module

· Supports dual isolated GbE LAN ports

· Two independent PSE channels

· Supports 19V~24V power input via 4pin header

· Complies with IEEE 802.3at, up to 25.5W at 52V per PoE port.

· Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 1.7KV HiPOT protection

· Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

· Industrial temperature -40 ºC to 85 ºC

Product Data Sheet

Specifications

Module Name	EMPL-G2P2
Module Type	mPCIe to dual Isolated PoE+ Module
Function	PoE
Form Factor	mPCIe
Input I/F	PCI Express 2.1 x 1
Output I/F	PoE+ x 2
Output connector	RJ45 x 2
TDP	25.5W x 2 (52V x 0.98A)
Dimensions (W x L x H/mm)	Main Board: 30 x 50.9 x 7.6 mm Daughter Board: 72.7 x 58.2 x 23.6 mm
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit) Linux: kernel 2.4 series, 2.6.x and 3.x version.
