SKU: EMP2-X203

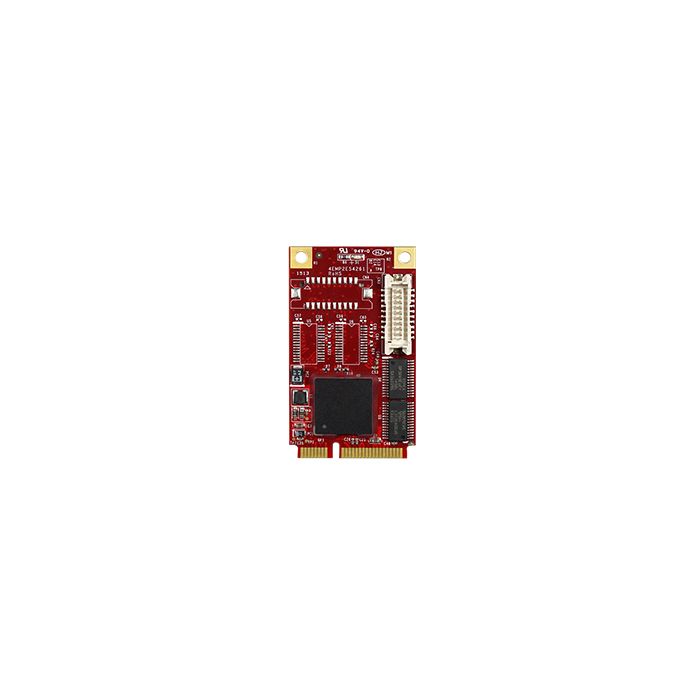

mPCIe to 2x 422/485 Module

Datasheet

Description

· PCI-Express specification Rev. 2.0 compliant

· 4800 to 921.6Kbps serial data rate. 16550 compatible. 256-byte FIFOs

· Industrial temperature(-40 ºC to 85 ºC) operation

· Flexible design with DB-9 connectors and cable

· ESD up to 15KV(Electrostatic Discharge) protection circuit to prevent system damage

· Supports CTS/RTS hardware flow control

· 30μ ” golden finger, 3 years warranty

· Industrial design, manufactured in innodisk Taiwan

Product Data Sheet

Specifications

Module Name	EMP2-X203
Module Type	mPCIe to two RS232 Module
Function	Serial
Form Factor	mPCIe
Input I/F	PCI Express 2.0 x 1
Output I/F	RS-232
Output connector	DB-9 x 2
TDP	0.45W (3.3V x 135mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 6.7
Temperature	Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), 8/8.1(32/64 bit), 10, WES7, CE7.0 Linux: Kernel 2.6.x and above. (We can provide Linux source for modification.)
