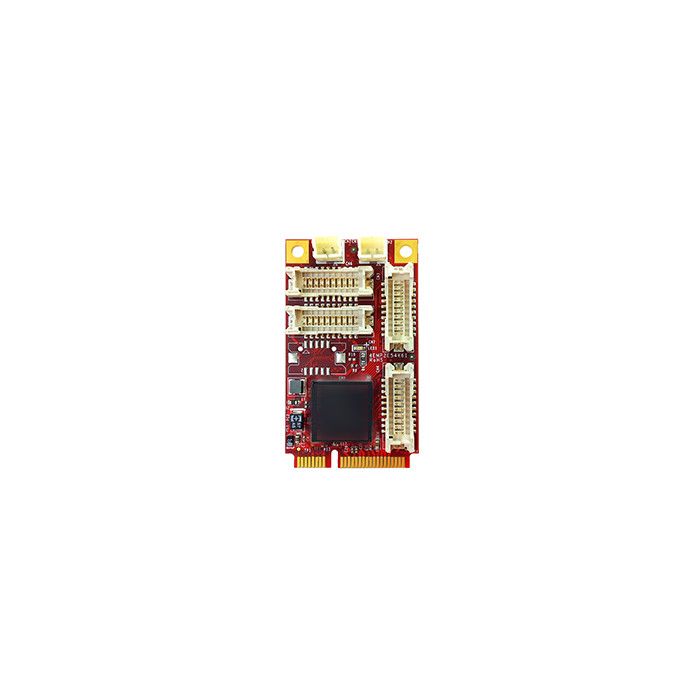

SKU: EMP2-X801

mPCIe to eight RS-232/422/485 Module

Datasheet

Description

· PCIe 2.0 compliant. RS-232/422/485 mode configurable by software

· 4800 to 3Mbps serial data rate (RS-232 921.6Kbps) serial data rate. 16C550 compatible. 256-byte FIFOs

· Industrial temperature(-40 ºC to 85 ºC) operation

· Flexible design with cable and daughter board x 8 (DB-9 connectors)

· Termination Resistor and 5V/12V output by jumper setting on daughterboard

· ESD(Electrostatic Discharge) protection circuit to prevent system damage

· 30μ” golden finger, 3-year warranty

· Industrial design, manufactured in Innodisk Taiwan

Product Data Sheet

Specifications

Module Name	EMP2-X801
Module Type	mPCIe to eight RS-232/422/485 Module
Function	Serial
Form Factor	mPCIe
Input I/F	PCI Express 2.0 x 1
Output I/F	RS-232/422/485
Output connector	DB-9 x 8
TDP	0.478W (3.3V x 145mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 8.45
Temperature	Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), 8/8.1(32/64 bit), 10, WES7, CE7.0 Linux: Kernel 2.6.x and above.(We can provide Linux source for modification.)
