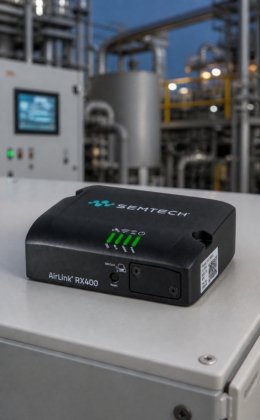

5G/LTE Gateways, Routers and Antennas
Critical applications require cellular connectivity with the highest security and reliability. Enabling secure financial transactions, routing data in rugged outdoor environments or communication for emergency services, transit and industrial applications, the same applies. Whether migrating from 2G/3G migration to 4G LTE, LTE-Advanced and 5G-ready devices, Tekdis cellular routers offer a range of proven, purpose-built solutions for high-performance connectivity in retail, industrial, transport and commercial applications where wired connections aren’t possible. The Airlink range also offers cloud based (ALMS) and “on-premise” (AMM) management platforms so customers can maintain the health of their devices on mass. To find out more about our range contact our team today.
-
UR41 4G Mini Industrial Cellular RouterLow Power Mini Industrial Router
Key Features:
- Compact size for suiting small embedded scenarios
- Global 4G LTE CAT4/3G network with multiple carrier networks
- Easy to connect with diverse wired devices through DI/DO/RS232/RS485 interfaces
- Power-saving design for both idle mode and standby mode providing users with an energy-saving option
- NXP industrial-grade processor
- Rugged enclosure with IP30 protection
- Desk or wall mounting
- Wide operating temperature range from -40°C to 60°C
-
AirLink® XR80 4G/5G High-Performance Multi-Network Router5G High-Performance Multi-Network Router for Public Safety, Field Service Fleets and Mission-Critical Fixed Applications
Key Features:
- Expandable 4G/5G
- 5×4 MU MIMO Wi-Fi 6
- 2x 1 Gigabit and
- 1x 5 Gigabit Ethernet
- Single/Dual Serial
- GNSS with Dead Reckoning
- IP64 Rated
- AirLinkOS with AirLink Complete
-

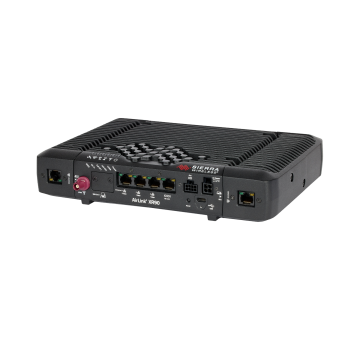

AirLink® XR90 5G High-Performance Multi-Network Vehicle Router5G High-Performance Multi-Network Vehicle Router for Transit, Rail and First Responder Fleets.
-

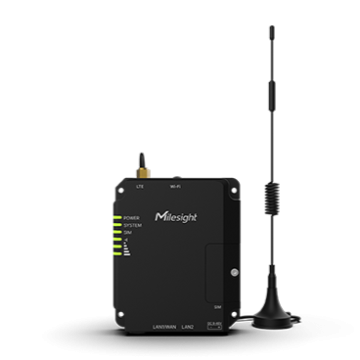

UR32L Lite 3G/4G Industrial Cellular Router Dual LANFor partner & project pricing, please contact us.
POE OPTIONAL - Accessories included - AC PSU, Cellular Paddle antennas, Din rail clip
-

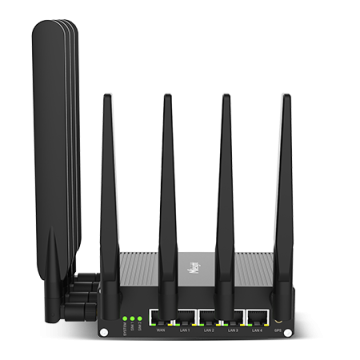

UR75 5G Industrial Cellular Router Dual SIM, POE & WiFi5G Industrial Cellular Router, WiFi, GPS, Dual SIM, 5*PoE Eth, RS232/485, I/O, Micro SD, PoE
Key Features:
- Fast Speed 4G/5G Network – speed upgrades, low latency, massive capacity + increased bandwidth
- Rich Interfaces – 2×2 MIMO 802.11ac WiFi, 5 x PoE Eth, 1 x RS232 + 1 x RS485, 1 x Digital Input & Output
- Quick Network Backup – Dual SIM ensures link failover and avoids roaming cost
- High Reliability – Qualcomm Quad-Core processor
- Remote Management – Device management in bulk on Milesight DeviceHub
- Fit into Any Hard Environment – Operating temperature -40 to 70°C
-
UR35 - 3G/4G Industrial Cellular Router Dual SIM 5 x LAN and WiFiFor partner & project pricing, please contact us.
3G/4G + WIFI MODEL
UR35 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multiple M2M/IoT applications.Key Features:
- Hardened and rugged Enclosure
- Supports Wi-Fi Client and AP Mode
- 1 RS232 and 1 RS485 Serial Port
- 1 Digital Input and 1 Digital Output
- OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE
- Wide Operating Temp Range and Input Voltage
-

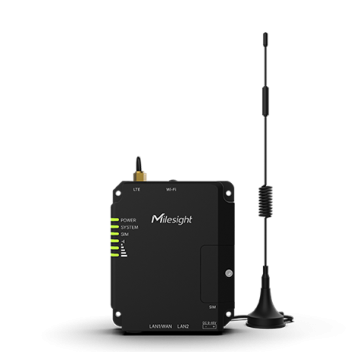

UR32 - 3G/4G Industrial Cellular Router Dual SIMUR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for M2M/IoT applications. Optional Wifi and POE (PSE)
Accessories included - AC PSU, Cellular and Wifi Paddle antennas, Din rail clip
-
Airlink Product Comparison ChartDownload the PDF to find the right networking solution for your project
-
FX30S Serial LTE-MThe FX30 is the industry’s smallest, most rugged programmable 3G/4G LTE cellular gateway. Providing an integrated, secure embedded application environment, tightly integrated with the cloud, scalable and global deployments of IoT applications for any connected machine or infrastructure.
-
FX30 LTE-M GlobalThe FX30 LTE M is the industry’s smallest, most rugged programmable 3G/4G LTE cellular gateway. Providing an integrated, secure embedded application environment, tightly integrated with the cloud, scalable and global deployments of IoT applications for any connected machine or infrastructure.
-
AirLink LX60 Dual Ethernet LTE + Wifi Router, 1104049- Dual Gigabit Ethernet, RS-232 and multiple I/O
- LTE and Global LTE-M/NB-IoT variants -
AirLink RV55 Rugged LTE-A Pro RouterThe industry's most rugged, compact, LTE-A Pro router, designed for connecting critical remote assets & infrastructure, and vehicles.
Key Features:
- LTE-A PRO up to 600/150Mps
- Dual SIM automatic network failover
- High performance GNSS
- 1 x GbE, 2 x RS232 (DB9), 1 x Digital inputs
- Optional Dual-Band – Dual Chipset Wi-Fi
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management: Cloud – ALMS, Hosted – AMM
-
Airlink RV50x 4Gx Low Power GatewayLow Power LTE Gateway - GbE, GPS, RS232 and USB
Key Features:
- 10/100/1000 Ethernet (RJ45)
-
RS-232 serial port (DB-9)
-
USB 2.0 Micro-B Connector
-
3 SMA antenna connectors (primary, diversity, GPS)
-
Active GPS antenna support
-
IPsec, GRE, and OpenVPN Client
-
Up to 5 concurrent tunnels
-
Custom event triggers and reports
-
ALEOS Application Framework (AAF)
-
Airlink MP70 High Performance LTE Vehicle RouterHigh-performance, LTE-Advanced vehicle router with GPS+CAN for mission-critical applications.
Key Features:
- LTE-A up to 300/50Mps, LTE-A PRO version 600/150Mbps
- Dual SIM automatic network failover
- Opt. Dual band 2.4/5GHz 802.11ac Wifi AP/Client/WAN mode
- GNSS - GPS, GLONASS, Galileo, Beidou
- 4 x GbE with WAN failover
- OBD II/ J1939/ J1708 interface over serial
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management - Cloud – ALMS, Hosted – AMM
-
MG90 5G LTE Multi-Network Vehicle RouterMulti-Network Vehicle Router Single or Dual LTE, Dual Wifi and GPS
-
AirLink LX60 Dual Ethernet LTE Router 1104048- Dual Gigabit Ethernet, RS-232 and multiple I/O
- LTE and Global LTE-M/NB-IoT variants -
AirLink LX40 CAT 4 LTE Router (1104183)The AirLink LX40 is a small LTE router that provides "out-of-the-box" LTE and Wi-Fi connectivity and is easy to set up. In fixed, protected environments, the LX40 supports security, digital signage, and IoT applications.
-
GX450 (Replaced by RV50x, MP70)End of LifeIn-vehicle network connectivity via Ethernet, Serial, WiFi and USB
Replaced by MP70/RV50x/RV55 -
ES450 4G Consumer GatewayEnd of LifeEnterprise 4G LTE gateway with single GbE and out of band management
