EMPS-3401

SKU: EMPS-3401

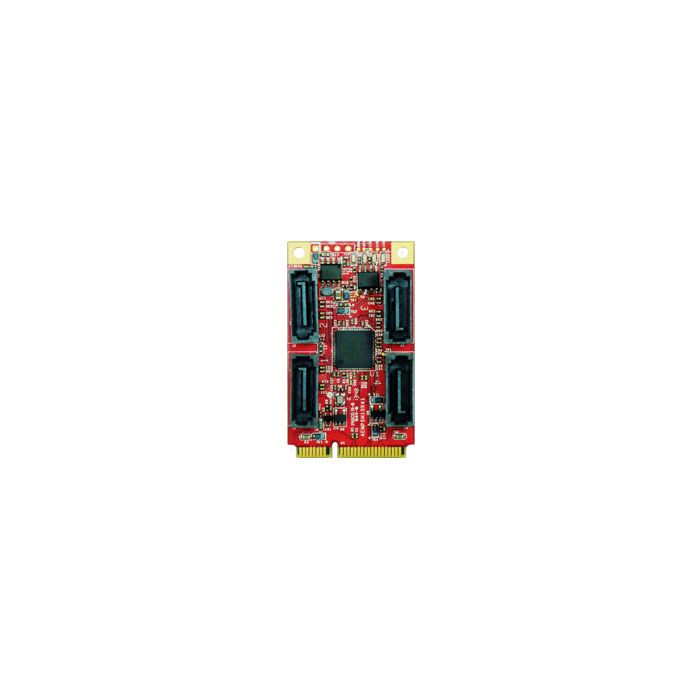

mPCIe to four SATA III Module

Description

mPCIe to four SATA III Module



·         mPCIe to four SATA III ports

·         Supports AHCI, Port-Multiplier

·         Supports Native Command Queuing

·         Supports error reporting, recovery and correction

·         30μ" golden finger, 3 years warranty

·         Industrial design, manufactured in Innodisk Taiwan

Download

More Information

Specifications
Module Name EMPS-3401
Module Type mPCIe to four SATA III Module
Form Factor mPCIe
Input I/F PCI Express 2.0
Output I/F SATA III
Output connector SATA 7pin x 4
TDP 2.74W (3.3V x 830mA)
Dimensions (W x L x H/mm) 30 x 50.9 x 10.9
Temperature STD temp: 0°~70°C
Wide temp: -40°~85°C
Environment Vibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
