SKU: EMPS-32R1

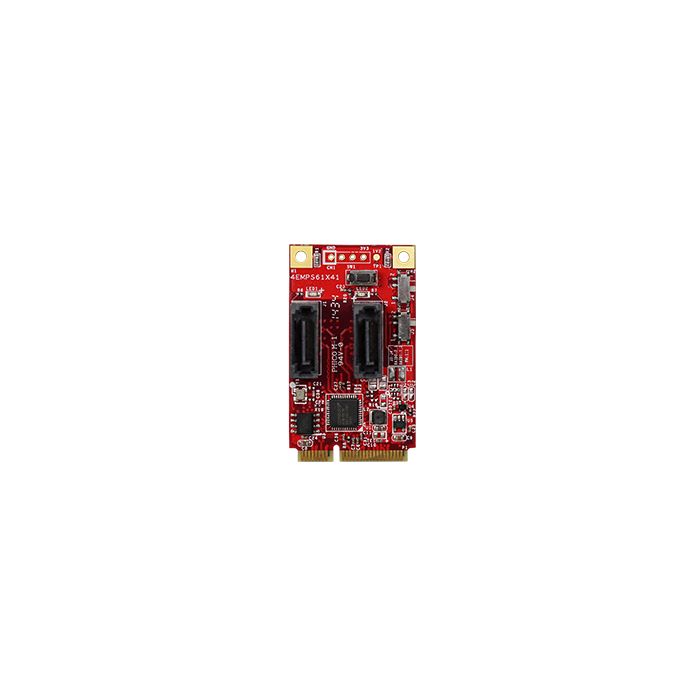

mPCIe to dual SATA III RAID Module

Description

mPCIe to dual SATA III RAID Module

· mPCIe to dual SATA III ports

· Low power consumption

· Supports AHCI, Port-Multiplier

· Supports Native Command Queuing

· Supports Hardware RAID 0, RAID1

· 30μ" golden finger, 3 years warranty

· Industrial design, manufactured in Innodisk Taiwan

Specifications

Module Name	EMPS-32R1
Module Type	mPCIe to dual SATA III RAID Module
Form Factor	mPCIe
Input I/F	PCI Express 2.0
Output I/F	SATA III
Output connector	SATA 7pin x 2
TDP	1.98W (3.3V x 600mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 10.75
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	1. RAID Mode Setting: [J3:J4] RAID0: 2:1, RAID1: 1:2, PM: 1:1 2. Press tact switch SW1 for reset.
