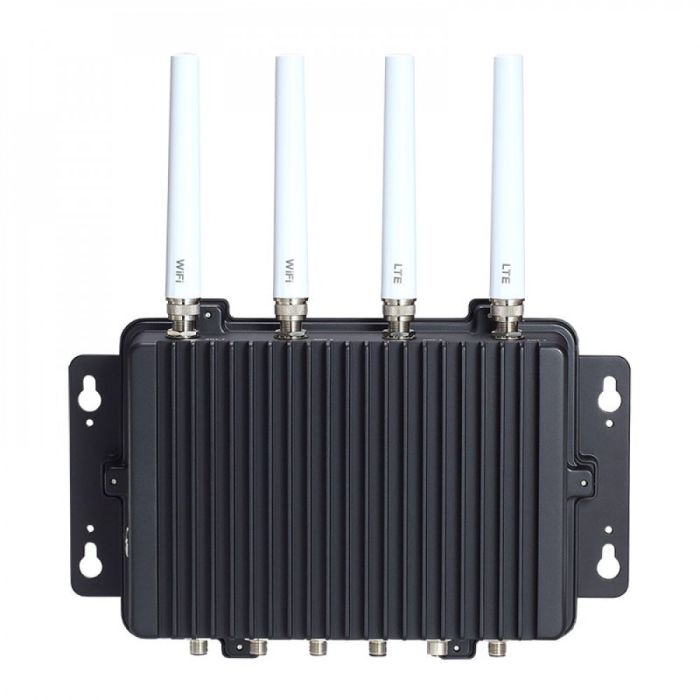

eBOX800-511-FL Rugged IP67 Fanless Embedded System

In stock
SKU
eBOX800-511-FL-DC-3965U/7300U
Brand: Axiomtek

Rugged IP67-rated Fanless Embedded System with Intel Core i5-7300U & Celeron 3965U, 1 VGA, 1 GbE LAN, 2 USB, 2 COM and 9 to 36 VDC

Key Features:

  • IP67-rating for outdoor use
  • Intel Core i5-7300U & Celeron 3965U onboard
  • 4 N-jack antenna openings with waterproof design
  • 9 to 36 VDC wide-range power input
  • -30°C to +60°C operating temperature range
  • Features M12 lockable I/Os
  • Trusted Platform Module 1.2 (TPM 1.2)
Enquire Now
Enquire about this product:

The eBOX800-511-FL is a fanless embedded system with IP67-rated housing and M12 connectors for mission-critical environments. This rugged embedded system is powered by the onboard 7th generation Intel Core i5-7300U and Celeron 3965U and comes with one 204-pin DDR4-2133 SO-DIMM slot with system memory of up to 16GB.

This unit is designed for enabling to function in harsh environments with power protection, a broad range of operating temperature from -30°C to 60°C, operating shock tolerance up to 3G and 9-36V wide range DC input. Additionally, there are M12 lockable connectors and N-jack type waterproof antenna openings to satisfy the performance needs for outdoor critical applications such as facility condition monitoring.

Furthermore, the fanless embedded box computer comes in vast expansion possibilities, including flexible I/O connectors and two 2 PCI Express Mini Card slots. For enhanced platform security, the eBOX800-511-FL implements Trusted Platform Module (TPM) 1.2 support.

 Features:

  • IP67-rating for outdoor use
  • Intel® Core™ i5-7300U & Celeron® 3965U onboard
  • 4 N-jack antenna openings with waterproof design
  • 9 to 36 VDC wide range power input
  • -30°C to +60°C operating temperature range
  • Features M12 lockable I/Os
  • Rich I/O options for customized designs and mission-critical projects
  • Trusted Platform Module 1.2 (TPM) 1.2
CPU
  • Intel® Core™ i5-7300U/Celeron® 3965U onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (M12)
USB
  • 2 x USB 2.0 (M12)
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (Intel® i219-LM, M12)
Display
  • 1 x VGA (M12)
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5” HDD drive bay (max. up 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x Half-size PCI Express Mini Card slot (USB +PCI Express signal)
Others
  • 1 x ATX power switch w/indicator
  • 4 x N-jack antenna opening with water proof design
  • TPM 1.2 supported
Power Supply
  • 9 to 36 VDC
Watchdog Timer
  • 255 levels, 1 ~ 255 sec.
Construction
  • Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F) (with i5-7300U, W.T. SSD/DRAM)
Relative Humidity
  • 10% to 95% , non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 210 x 366.83 x 83 mm (8.27" x 14.44" x 3.27")
Weight (net/gross)
  • 4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win10 IoT & Linux
Mounting
  • Wall mount
  • VESA mount
