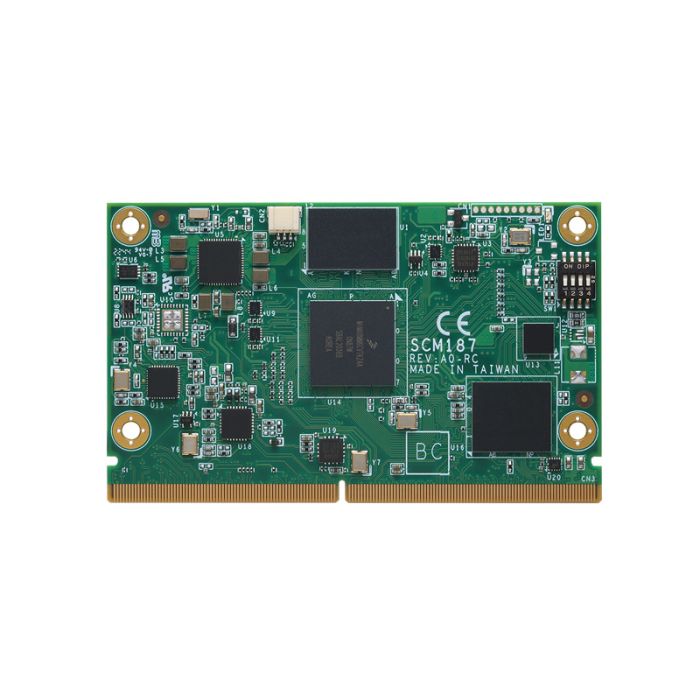

SCM187 RISC Embedded SMARC v2.1 SoM Quad Core 1.6 GHz SoC, 4GB RAM 8GB eMMC
Axiomtek SCM187 RISC Embedded SMARC v2.1 SoM i.MX 8M Mini Quad Core 1.6 GHz SoC 4GB RAM 8GB eMMC
Key Features:
- SMARC 2.1 (82 x 50 mm)
- NXP i.MX 8M Mini Quad A53 Core processor
- Dual CANbus 2.0B
- Dual-channel 24-bit LVDS
- HDMI up to FHD Resolution (option)
- 10/100/1000 Mbps Ethernet
- USB 2.0
- MIPI-CSI
- Audio
- Yocto 4.0
The RISC SCM187 is a powerful and compact Single Board Computer (SBC) that utilizes the NXP i.MX 8M Mini 1.6GHz SoC with Quad A53 processor. This SBC is designed for embedded applications that require efficient and reliable computing capabilities. The board comes with 4GB LPDDR4 system memory, providing ample space for running applications smoothly.
In terms of connectivity, the RISC SCM187 offers a variety of options. It includes 2 UART interfaces for transmitting and receiving data, as well as 3 USB 2.0 ports for connecting external devices. The board also features 1 Gigabit Ethernet port for fast and stable network connectivity. Additionally, it supports dual-channel 24-bit LVDS or HDMI output for display purposes.
The RISC SCM187 provides multiple interfaces for various communication and peripheral devices. It includes 2 CANBus interfaces, 3 I2C interfaces, 14 GPIO pins, 1 QSPI interface, and 1 SPI interface, offering flexibility for interfacing with a wide range of devices. The board also supports a MIPI-CSI camera input and an I2S audio interface for multimedia applications.
For storage, the RISC SCM187 includes a SDIO 3.0 interface and an onboard 8GB eMMC, ensuring reliable and efficient data storage capabilities. It also offers expansion options with a PCIe Gen2 x1 slot for additional peripherals or expansion cards. Furthermore, the board supports a TPM 2.0 module (optional) for enhanced security features.
The RISC SCM187 is designed to operate in harsh environments with its wide temperature range of -40°C to +85°C. It complies with CE certification standards, ensuring high-quality and reliable performance. The compact dimensions of 82 x 50 mm and a board thickness of 1.2 mm make it suitable for space-constrained applications.
Key Features:
- SMARC 2.1 (82 x 50 mm)
- NXP i.MX 8M Mini Quad A53 Core processor
- Dual CANbus 2.0B
- Dual-channel 24-bit LVDS
- HDMI up to FHD Resolution (option)
- 10/100/1000 Mbps Ethernet
- USB 2.0
- MIPI-CSI
- Audio
- Yocto 4.0
|
Core System |
|
|
CPU |
NXP i.MX 8M Mini 1.6GHz SoC with Quad A53 |
|
System Memory |
LPDDR4 4GB |
|
Operating System |
Yocto 4.0, Linux Kernel 5.15.32 |
|
Storage |
1 x SDIO3.0 interface |
|
1 x 8GB eMMC |
|
|
RTC |
Battery on the baseboard is required |
|
Power Requirement |
+5V ± 5% |
|
I/O |
|
|
Graphics |
1 x Dual-channel 24-bit LVDS or 1 x HDMI up to FHD Resolution (option) |
|
Ethernet |
1 x 10/100/1000 Mbps Ethernet |
|
USB |
3 x USB 2.0 |
|
COM |
2 x UART TX/RX/RTS/CTS |
|
2 x UART TX/RX (for debug console) |
|
|
I2C |
3 x I2C interface |
|
QSPI |
1 x QSPI |
|
SPI |
1 x SPI |
|
CANBus |
2 x CANBus |
|
GPIO |
14 x GPIO |
|
OS Flash |
1 x OS Flash |
|
Audio |
1 x I2S |
|
Camera Input |
1 x MIPI-CSI 4-lane |
|
Security |
1 x TPM 2.0 (option, none in default) |
|
Storage |
1 x SDIO3.0 interface |
|
PCIe |
1 x PCIe Gen2 x1 |
|
Debug Header |
1 x Debug Header |
|
Mechanical and Environmental |
|
|
Dimensions |
82 x 50 mm (3.23” x 1.97”) |
|
Board Thickness |
1.2 mm ± 0.1 mm |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
