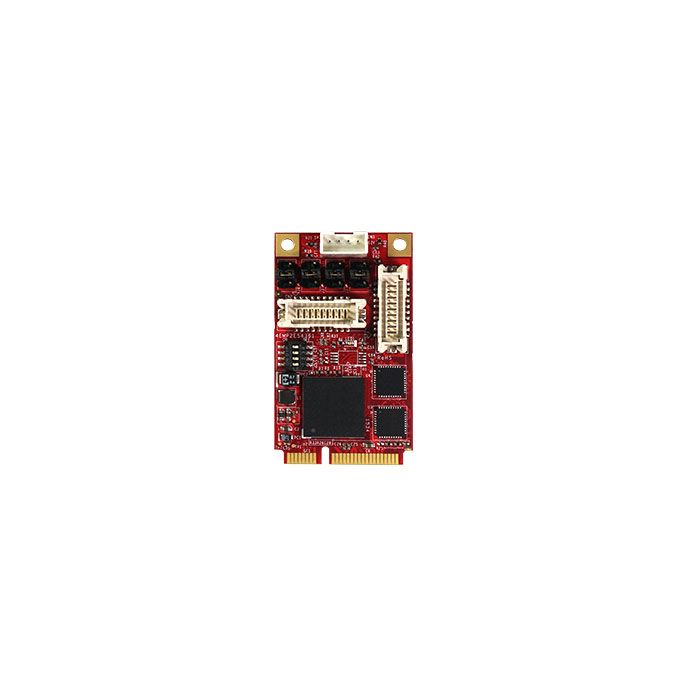

EMP2-X404, mPCIe to 4x 422/485 module
In stock
SKU:
EMP2-X404
mPCIe to 4x 422/485 Module
Downloads:
Enquire Now
Enquire about this product
| Module Name | EMP2-X404 |
| Module Type | mPCIe to four RS-232/422/485 Module |
| Function | Serial |
| Form Factor | mPCIe |
| Input I/F | PCI Express 2.0 x 1 |
| Output I/F | RS-232/422/485 |
| Output connector | DB-9 x 4 |
| TDP | 0.5W (3.3V x 150mA) |
| Dimensions (W x L x H/mm) | 30 x 50.9 x 8 |
| Temperature | Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment | Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| Notes | Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), 8/8.1(32/64 bit), 10, WES7, CE7.0 Linux: Kernel 2.6.x and above. (We can provide Linux source for modification.) |
