SKU: EMPL-G201

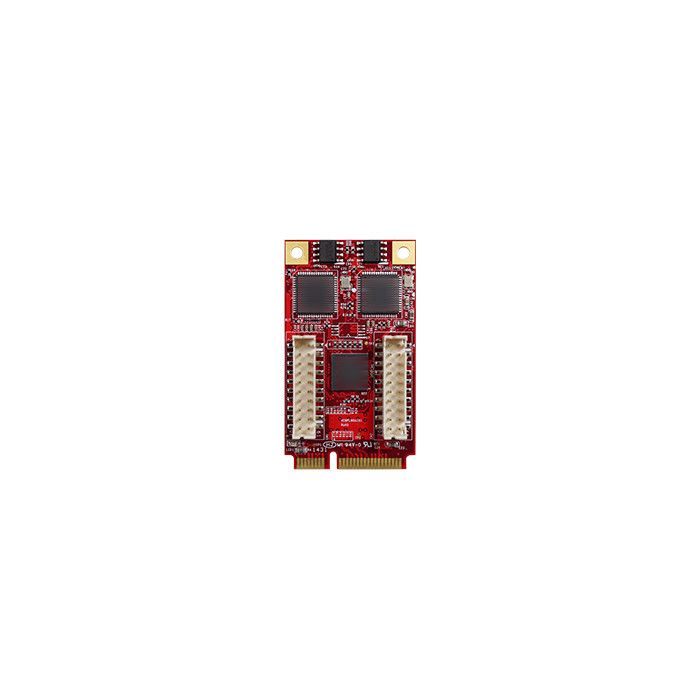

mini PCIe to Dual GbE LAN Module

Datasheet

Description

mini PCIe to Dual GbE LAN Module

· Dual isolated GbE LAN ports

· Complies with EN61000-4-5 1kV Surge protection

· Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection

· Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV

· Flexible daughter board with cable to fit into different system

· Optional terminal mounting hole or bracket for daughter board

· Optional Industrial Temperature (-40°C to +85°C) support

· 30μ ” golden finger, 3 years warranty

· Industrial design, manufactured in innodisk Taiwan

Product Data Sheet

Specifications

Module Name	EMPL-G201
Module Type	mini PCIe to Dual GbE LAN Module
Function	LAN
Form Factor	mPCIe
Input I/F	PCI Express 2.0 x 1
Output I/F	Isolated Dual GbE LAN
Output connector	RJ45 x 2
TDP	1.485W (3.3V, 450mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 7.6
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit) Linux: kernel 2.4 series, 2.6.x and 3.x version.
