SKU: EMPV-1201

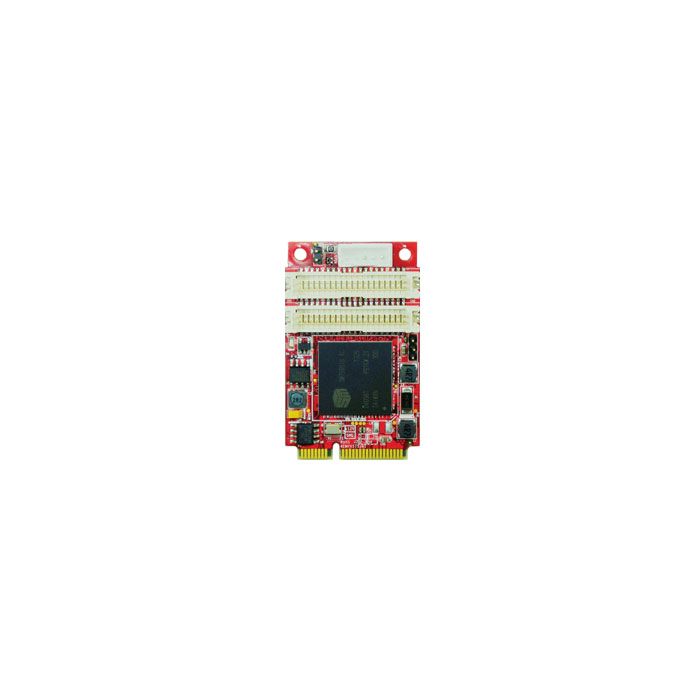

mPCIe to dual VGA & HDMI (or DVI) module

Datasheet

Description

mPCIe to dual VGA & HDMI (or DVI) module

· VGA Output up to 1920x1080. up to 75Hz vertical rate

· HDMI up to 1080P, Ultra low power consumption

· Allow for 90º, 180º, and 270º rotation of on-screen images

· DVI-D Single Link up to 1080P.

· Optional Industrial Temperature (-40°C to +85°C) support.

· 30μ” golden finger, 3 years warranty

· Industrial design. Manufactured in innodisk Taiwan

Product Data Sheet

Specifications

Module Name	EMPV-1201
Module Type	mPCIe to dual VGA & HDMI (or DVI) module
Form Factor	mPCIe
Input I/F	PCI Express 1.0
Output I/F	VGA x 2, HDMI x 1, DVI-D Single Link x 1 (Alternative)
Output connector	40pin 1.25mm x 2(40DP-1.25)
TDP	1.98W(3.3V x 600mA)
Dimensions (W x L x H/mm)	ST: 50.95 x 31.5 x 7 WT: 50.95 x 31.5 x 8.83
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	OS Support : Windows XP (32 bit), Windows 7/8/8.1/10 (32/64 bit) Linux Ubuntu 12.04-16.04(32/64bit), Linux Fedora 17- 21(32/64bit), Linux CentOS/Redhat 6.5 (32/64bit)-7.2(64bit) Different CN2 cable for HDMI or DVI-D(Alternative). Please download driver from Myinnodisk website.
