Slim Bezel Industrial Panel PCs for Modern HMI Applications
Cincoze slim bezel industrial panel PCs combine clean, modern design with the durability required for industrial environments. Part of the Cincoze Display Computing CRYSTAL product line, these panel PCs are built for factory HMI, machine control, process visualization and space-constrained equipment integration.
Key Features
Slim Bezel Design
A bezel width of less than 3 mm helps reduce integration constraints where cabinet space is limited or a cleaner front-facing appearance is required.
High-Resolution Display
Full HD display options with a 178° wide viewing angle provide clear visibility from multiple positions, with anti-glare coating for bright indoor environments.
Industrial Durability
IP66 front-panel protection, 7H-hardness Glass-Glass touch construction and long-life backlighting support reliable use in harsh environments.
Flexible Configuration
Cincoze Convertible Display System technology allows display and computing modules to be combined across multiple performance and screen size options.
Why Choose Cincoze Slim Bezel Industrial Panel PCs?
Built for Fast, Flexible Deployment
Cincoze’s modular architecture allows I/O and functional expansion to be configured based on project needs. Options such as DIO, PoE and ignition control help support a wide range of industrial use cases.
Designed for Industrial Environments
Industrial EMC compliance, IP66 front-panel protection and wet touch capability help maintain performance in environments exposed to dust, water spray, vibration and electrical noise.
Lower Downtime and Maintenance Costs
With Convertible Display System technology, the display or computing module can be replaced separately instead of replacing the full unit, helping reduce maintenance cost and downtime.
Cincoze Slim Bezel Industrial Panel PC Selection Guide
Choose the computing module that suits the performance needs of your application, then pair it with a slim bezel display module to match the screen size and installation requirements.

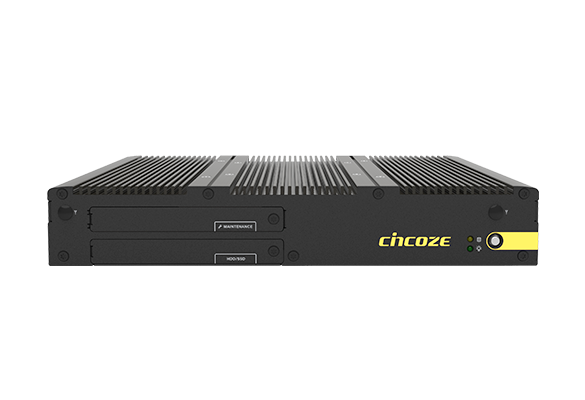

P2000 Series Computer Module
- Intel® Meteor Lake-PS Core™
- Supports up to DDR5 4800MHz 64GB memory
- M.2 Key E Type 2230 socket
- PCI / PCIe x4 expansion slot, varies by model
- Safety standard: UL, cUL, CB, IEC, EN 62368-1
- EMC standard: EN 61000-6-2/4

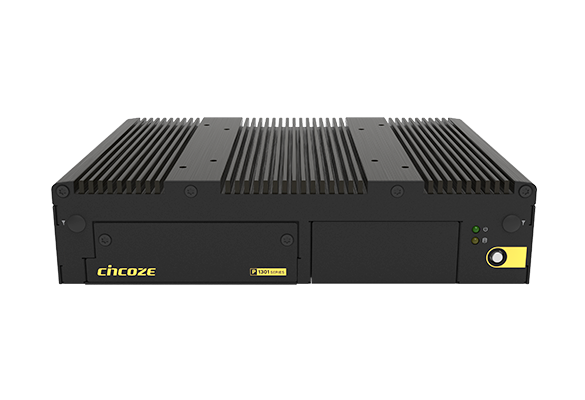

P1000 Series Computer Module
- Intel® Alder Lake-N
- Supports up to DDR5 4800MHz 16GB memory
- M.2 Key E Type 2230 socket
- M.2 Key B Type 3042 / 3052 socket
- Safety standard: UL, cUL, CB, IEC, EN 62368-1
- EMC standard: EN 61000-6-2/4

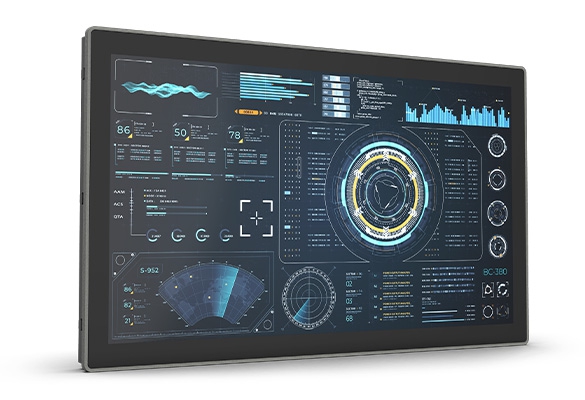

Slim Bezel Display Module
- 10" to 21.5" display sizes
- Full HD LCD, 1920 x 1080
- Wide viewing angle of 178°
- Aluminum die-cast front frame
Applications
Cincoze Industrial Panel PCs from Tekdis LLC
Tekdis LLC supplies industrial panel PCs and embedded computing solutions for system integrators, OEMs and industrial projects across North America. Contact our team to discuss Cincoze slim bezel panel PC options, configuration requirements and availability.
