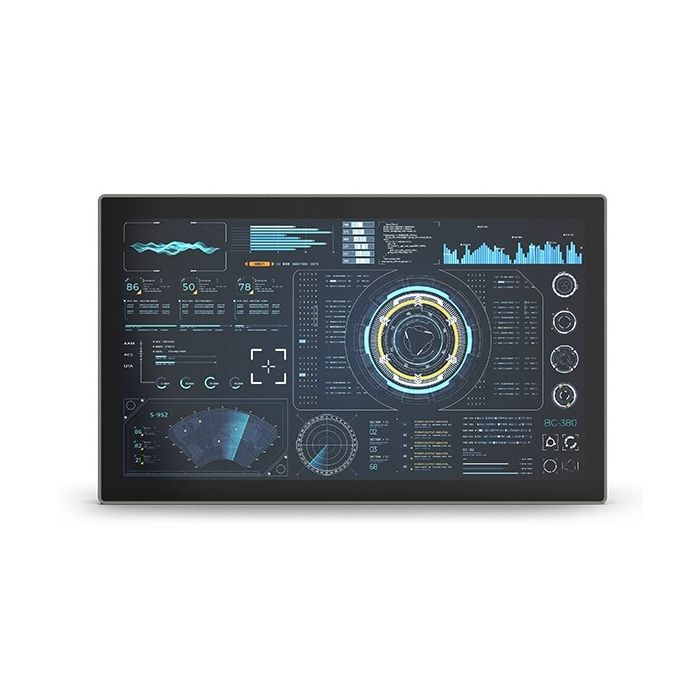

CV-221C/P2002 Series 21.5” High Performance Slim Bezel Panel PC

SKU: CV-221C-R10/P2002x-ix-xx-R10

21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core Embedded Computer, Projected Capacitive Touch, and AG Coating

Key Features:

21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
Projected Capacitive Touch with Anti-Glare Coating.
Wide Viewing Angle of 178°/178°
Onboard Intel® 6th Generation Core™ Processor U Series (15W)
Supports Triple Independent Display
2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
Front Panel IP66 Compliant

Datasheet

Description

Product Overview

The Cincoze CV-221C / P2002 Series is a 21.5" Full HD industrial panel PC designed for HMI, automation and smart manufacturing environments. Featuring a slim bezel design, projected capacitive multitouch support and anti-glare coating, it delivers a responsive and durable interface for industrial control and visualisation applications. Powered by Intel Core embedded computing platforms, the series combines reliable processing performance, rugged construction and flexible connectivity for continuous operation in demanding environments.

Key Features

21.5 Inch Full HD Display

21.5-inch Full HD display with 1920 × 1080 resolution
16:9 widescreen format for industrial monitoring and visualisation
Projected capacitive multitouch interface for intuitive operation
Anti-glare coating improves readability in bright environments

Excellent Computing Performance

Equipped with Intel® 6th Gen Core™ U-series processors
Delivering high computing performance at 15W low power consumption
Meets industrial demands for both performance and energy efficiency
Supports continuous operation in demanding environments

Slim Bezel Industrial Design

Slim bezel construction for modern panel integration
Flat front surface simplifies cleaning and maintenance
Fanless architecture for silent operation and reduced maintenance
Compact profile suitable for machinery and control cabinets

Rugged Industrial Construction

Front IP66 compliant protection against dust and water
Designed for harsh industrial and factory environments
Reliable operation for continuous industrial workloads
Suitable for manufacturing, automation and machine control systems

Flexible Connectivity and Expansion

Multiple LAN, USB and serial communication interfaces
Supports integration with industrial controllers and peripherals
Expansion support for storage and communication modules
Designed for scalable deployment across industrial systems

Applications and Use Cases

The CV-221C / P2002 Series is suitable for:

Industrial HMI and operator panels
Smart manufacturing and factory automation
Machine control and process monitoring
Production line visualisation systems
Industrial edge computing deployments

CV-221C/P2002 Dimensions/Drawings

CV-221C/P2002E Dimensions/Drawings

Download

Datasheet

More Information

Brand

Cincoze

Specifications

CV-221C

Model Name		CV-221C
Display	LCD Size	• 21.5” (16:9)
	Max. Resolution	• 1920x1080
	Brightness (cd/m2)	• 300
	Contrast Ratio	• 5000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.24825 (H) x 0.24825 (V)
	Viewing Angle (H-V)	• 178 / 178
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touch Type	• Projected Capacitive
	Anti-Glare	• V
	Wet Touch Tracking	• V
Physical	Dimension ( W x D x H )	• 522.4 x 318.3 x 63.4 mm
	Weight Information	• 5.28 kg
	Mechanical Construction	• Die-Casting Flat Surface
Power	Power Consumption	• 24.8 W (Max.)
Environment	Front Panel Protection	• IP 66 Compliant
	Operating Temperature	• 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow
	Storage Temperature	• -20°C - 60°C (-4°F to 140°F)
	Relative Humidity	• 90% RH @ 40°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles.
	Industrial Environment	• EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019
	Railway	• EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019

P2002 Series

Model Name		P2002	P2002E
System	Processor	Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W
	Memory	2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB
	BIOS	AMI 64Mbit SPI BIOS
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 520
	Maximum Display Output	Supports Triple Independent Display
	CDS	1x CDS Connector for Cincoze Display Module
	VGA	1x VGA Connector(1920 x 1080 @60Hz), DB-15
	DVI-D	1x DVI-D Connector (1920 x 1080 @ 60Hz)
Audio	Audio Codec	Realtek® ALC888, High-Definition Audio
	Speaker-out	1x Speaker-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210
	USB	4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)
	Serial Port	6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
Storage	SSD/HDD	2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
	mSATA	2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
	CFast	1x CFast Socket (Gen3)
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	PCI Express		• 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L)
	SIM Socket	1 x Front Accessible SIM Socket
	Universal Bracket	1x Universal I/O Bracket
	CFM (Control Function Module) Interface	2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other Function	Instant Reboot	Support 0.2sec Instant Reboot technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Reset Button	1x Reset Button
	External Fan Connector	1x External Fan Connector, 4-pin Terminal Block
Power	Power Button	1x ATX Power On/Off Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	254.5 x 220 x 54mm	254.5 x 220 x 72 mm
	Weight Information	2.92 kg	3.18 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating System	Microsoft® Windows®	Windows®10, Windows® 8.1, Windows® 7
Operating System	Linux	Linux® Kernel 4.4
Environment	Operating Temperature	Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 85C
	Relative Humidity	95% RH @ 40˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

Ordering Information

**Available Models**
Model No.	Product Description
CV-221C-R10/P2002-i5-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2002E-i5-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2002E-i5-E4-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCIe x4 expansion slot
CV-221C-R10/P2002E-i5-PI-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-6300U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCI expansion slot
CV-221C-R10/P2002-i3-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2002E-i3-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2002E-i3-E4-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCIe x4 expansion slot
CV-221C-R10/P2002E-i3-PI-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-6100U Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, AG Coating, and 1x PCI expansion slot

**Model Configuration**
	CV-221C	P2002(i3/i5)	P2002E(i3/i5/E4/PI)
CV-221C/P2002	V	V	--
CV-221C/P2002E	V	--	V

**Package Checklist**
CV-221C/P2002 Series Panel PC x1	Power Terminal Block Connector (Female) x 1
Panel Mounting Kit x 14	Screw Pack x 1
Fan Terminal Block Connector x 1	Remote Power On/Off Terminal Block Connector x 1
DIO Terminal Block Connector (Female) x 2

**Optional Modules and Accessories**
Model No.	Description
MEC-COM-M212-DB9	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
CFM-IGN100	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100	CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 15 mm)(For P2002 only)
CFM-PoE101	CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) (For P2002E only)
RC-E4-01	Riser Card with 1x PCIex4 Slot (For P2002E only)
RC-PI-01	Riser Card with 1x PCI Slot (For P2002E only)
UB0503	1x Universal Bracket with 2x DB9 Cutout (154 x 17 mm)
UB0504	1x Universal Bracket with 4x DB9 Cutout (154 x 17 mm)
UB0511	1x Universal Bracket with 2x RJ45 Cutout (154 x 17 mm)
UB0514	1x Universal Bracket with 2x USB Cutout (154 x 17 mm)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN (For P2002E only)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3	US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
