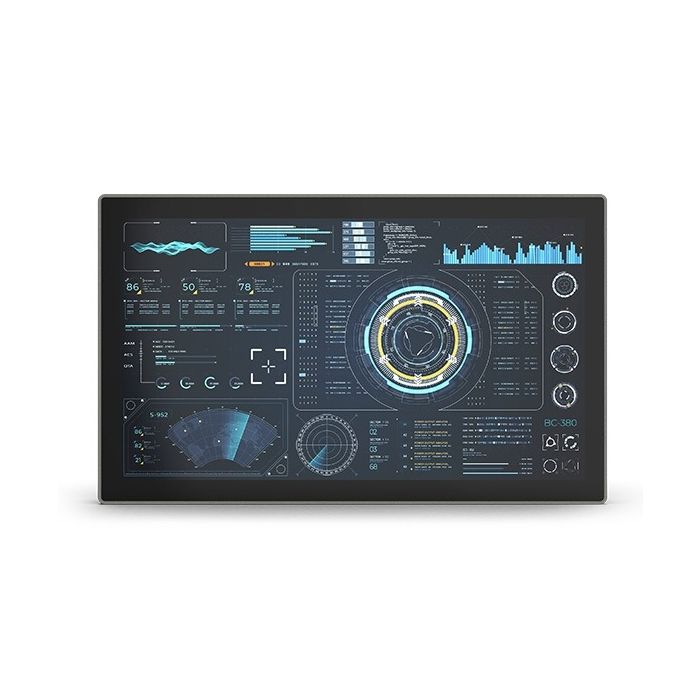

CV-221C/P2202 Series 21.5” High Performance Slim Bezel Panel PC
21.5" FHD 16:9 Slim Bezel Panel PC with 12th Gen. Intel® Core™ Processor Embedded Computer, Projected Capacitive Touch, and AG Coating
Key Features:
- 21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
- Projected Capacitive Touch with Anti-Glare Coating.
- Wide Viewing Angle of 178°/178°
- Onboard Intel® Alder Lake-P U-Series Core™ Processor
- 2 x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
- Quad Independent Display (CDS / HDMI / DP / VGA)
- 1x M.2 Key E Type 2230 Socket for Storage/Wireless/Bluetooth/Intel CNVi Module Expansion
- Front Panel IP66 Compliant
Description
Product Overview
The Cincoze CV-215 / P2202 Series is a 15.6" industrial panel PC designed for HMI, smart manufacturing and industrial automation applications. Powered by Intel Core Ultra processors, it combines responsive processing performance, integrated AI acceleration, and rugged industrial construction in a slim-bezel touchscreen platform. With projected capacitive multitouch support, modular expansion and front IP66 protection, the series is built for demanding factory, machine control and industrial monitoring environments.
Key Features
15.6 Inch Industrial Display
-
15.6-inch Full HD display with 1920 × 1080 resolution
-
Projected capacitive multitouch interface for responsive control
-
Wide viewing angles for improved visibility in industrial settings
-
Slim bezel design for modern machine and panel integration
Intel Core Ultra Performance
-
Intel Core Ultra processor platform with integrated AI acceleration
-
Designed for industrial visualisation, HMI and edge processing workloads
-
Supports DDR5 memory for fast and stable operation
-
Suitable for multitasking and intelligent automation applications
Rugged Industrial Design
-
Front IP66 compliant protection against dust and water
-
Flat front panel for easy cleaning and industrial deployment
-
Designed for continuous operation in demanding environments
-
Fanless construction reduces maintenance and improves reliability
Flexible Expansion and Connectivity
-
M.2 expansion support for storage, wireless and communication modules
-
Dual LAN for industrial networking and data communication
-
Multiple USB and serial ports for peripherals and automation systems
-
Supports integration with sensors, controllers and industrial equipment
Industrial Integration Features
-
Panel mount design for machinery and cabinet installation
-
Digital I O support for automation and control functions
-
Multiple display outputs for system expansion and monitoring
-
Suitable for machine interface and process visualisation applications
Applications and Use Cases
The CV-215 / P2202 Series is suitable for:
-
Industrial HMI and operator control panels
-
Smart manufacturing systems
-
Factory automation and machine control
-
Production line monitoring and visualisation
-
Industrial edge computing and data display
CV-221C/P2202 Dimensions/Drawings
CV-221C/P2202E Dimensions/Drawings
Download
More Information
| Brand | Cincoze | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
CV-221C
P2202 Series
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Model No. |
Description |
|---|---|
|
CV-221C-R10/P2202-i5-R10 |
21.5" FHD 16:9 Slim Bezel Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor Embedded Computer, Projected Capacitive Touch, and AG Coating |
|
CV-221C-R10/P2202E-i5-R10 |
21.5" FHD 16:9 Slim Bezel Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
|
CV-221C-R10/P2202-i3-R10 |
21.5" FHD 16:9 Slim Bezel Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor Embedded Computer, Projected Capacitive Touch, and AG Coating |
|
CV-221C-R10/P2202E-i3-R10 |
21.5" FHD 16:9 Slim Bezel Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating |
|
CV-221C |
P2202(i3/i5) |
P2202E(i3/i5) |
|
|---|---|---|---|
|
CV-221C/P2202 |
V |
V |
-- |
|
CV-221C/P2202E |
V |
-- |
V |
|
CV-221C/P2202 Series Panel PC x1 |
Thermal Pad x1 |
|
Power Terminal Block x1 |
Screw Pack x5 |
|
Remote Power On/Off Terminal Block Connector x1 |
Panel Mounting Kit x14 |
|
DIO Terminal Block Connector x2 |
DIN Rail Mounting Kit x1 |
|
PCI / PCIe Card Installation Kit x1 (For P2202E Only) |
|
Model No. |
Description |
|---|---|
|
CFM-IGN101 |
CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
|
CFM-PoE04 |
CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only) |
|
CFM-PoE05 |
CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only) |
|
RC-E4-02 |
Riser Card with 1x PCIe x4 Slot (For P2202E Only) |
|
RC-PI-02 |
Riser Card with 1x PCI Slot (For P2202E Only) |
|
MEC-COM-M212-TDB9 |
Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only) |
|
MEC-COM-M334-TDB9 |
Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only) |
|
MEC-USB-M102-30 |
Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only) |
|
MEC-LAN-M102-30 |
Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only) |
|
UB1203 |
1x Universal Bracket with 2x DB9 Cutout (For P2202E Only) |
|
UB1211 |
1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only) |
|
UB1214 |
1x Universal Bracket with 2x USB Cutout (For P2202E Only) |
|
URM01 |
Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
|
GST120A24-CIN |
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST220A24-CIN |
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
|
GST360A24-CIN |
Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
