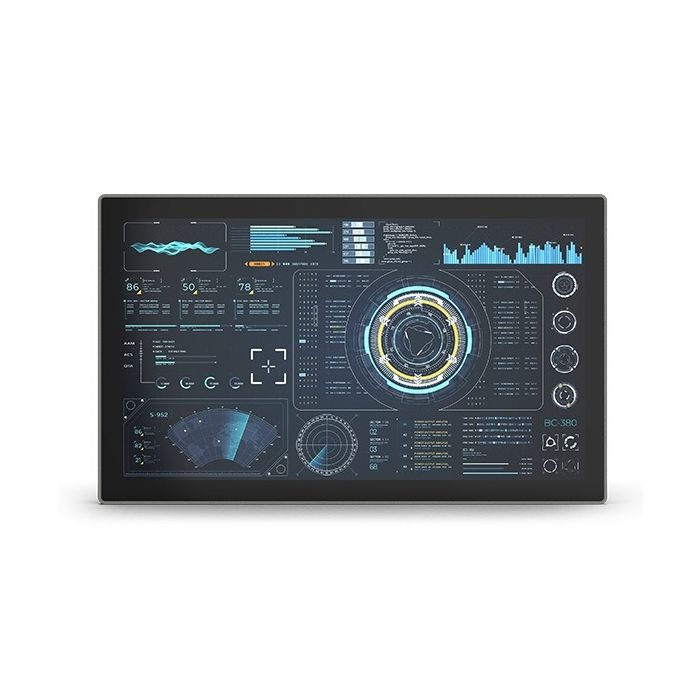

CV-221C/P2302 Series 21.5” High Performance Slim Bezel Panel PC

SKU: CV-221C-R10/P2302x-R10

21.5" FHD 16:9 Slim Bezel Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer, Projected Capacitive Touch, and AG Coating

Key Features:

  • 21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
  • Projected Capacitive Touch with Anti-Glare Coating.
  • Wide Viewing Angle of 178°/178°
  • Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
  • 1x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/Storage/Add-on Card Expansion
  • 1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
  • Front Panel IP66 Compliant
Datasheet

Description

Product Overview

The Cincoze CV-221C / P2302 Series is a 21.5" FHD slim bezel industrial panel PC designed for HMI, production visualisation and industrial control applications. Powered by Intel Core Ultra processors, it combines strong processing performance, AI acceleration and modular expansion in a rugged touchscreen platform. With projected capacitive touch, anti glare coating and a front IP66-rated design, the series is well-suited to factory automation, machine control, smart manufacturing and industrial display environments.

Key Features

21.5 Inch Industrial Touch Display

  • 21.5-inch Full HD display with 1920 × 1080 resolution

  • Projected capacitive touch with anti-glare coating

  • Wide 178-degree viewing angles for clear operator visibility

  • Slim bezel design for modern panel integration

Intel Core Ultra Performance

  • Intel Core Ultra processor platform for responsive industrial workloads

  • Integrated NPU acceleration for AI-based image processing and recognition

  • Supports DDR5 memory for high-speed operation

  • Designed for HMI, visualisation and edge control applications

Modular Expansion Design

  • M.2 expansion for wireless, Bluetooth, 5G, GNSS, storage, and add-on cards

  • Optional PCI or PCIe expansion support on compatible configurations

  • Supports modular I O expansion for application-specific requirements

  • Designed to scale across different industrial deployment needs

Rugged Industrial Construction

  • Front panel IP66 compliant protection against dust and water

  • Die-cast flat surface design for durability and easy cleaning

  • Wide operating temperature support for harsh environments

  • Suitable for factory floors, control panels and industrial machinery

Rich I/O and System Integration

  • Dual 2.5GbE LAN for high-speed networking

  • Multiple USB and serial ports for peripherals and equipment integration

  • Digital I/O for automation and control signals

  • Multiple display outputs for flexible system configuration

Applications and Use Cases

The CV-221C / P2302 Series is suitable for:

  • Industrial HMI and operator panels

  • Production process visualisation

  • Smart manufacturing systems

  • Machine control and automation

  • Industrial monitoring and data display

CV-221C/P2302 Dimensions/Drawings





CV-221C/P2302E Dimensions/Drawings



Download

Datasheet

More Information

Brand Cincoze
Specifications

CV-221C

Model Name

CV-221C

Display

LCD Size

• 21.5” (16:9)

Max. Resolution

• 1920x1080

Brightness (cd/m2)

• 300

Contrast Ratio

• 5000: 1

LCD Color

• 16.7M

Pixel Pitch (mm)

• 0.24825 (H) x 0.24825 (V)

Viewing Angle (H-V)

• 178 / 178

Backlight LED Life Time

• 50,000 hrs (LED Backlight)

Touch Screen

Touch Type

• Projected Capacitive

Anti-Glare

• V

Wet Touch Tracking

• V

Physical

Dimension ( W x D x H )

• 522.4 x 318.3 x 63.4 mm

Weight Information

• 5.28 kg

Mechanical Construction

• Die-Casting Flat Surface

Power

Power Consumption

• 24.8 W (Max.)

Environment

Front Panel Protection

• IP 66 Compliant

Operating Temperature

• 0°C - 60°C (32°F to 140°F)

  - With Industrial Grade peripherals; Ambient with air flow

Storage Temperature

• -20°C - 60°C (-4°F to 140°F)

Relative Humidity

• 90% RH @ 40°C (non-condensing)

EMC

• CE, UKCA, FCC, ICES-003 Class A

EMI

• CISPR 32 Conducted & Radiated: Class A

• EN/BS EN 55032 Conducted & Radiated: Class A

• EN/BS EN 50121-3-2 Conducted & Radiated: Class A

• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A

• EN/BS EN 61000-3-3 Voltage fluctuations & flicker

• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A

EMS

• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m

• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV

• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV

• EN/IEC 61000-4-6 CS: 10V

(**Compliant with the standard when utilizing shielded cable.)

• EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m

• EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles.

Industrial Environment

• EMC:

  - EN/BS/IEC 61000-6-4: 2019 Class A

  - EN/BS/IEC 61000-6-2: 2019

Railway

• EMC:  EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only)

  - EN 50121-1 : 2017

  - EN 50121-3-2: 2016 + A1: 2019



P2302 Series

Model Name

P2302

P2302E

System

Processor

• Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor

  - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W

  - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W

  - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W

  - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W

  - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W

Memory

• 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 96 GB

BIOS

• AMI BIOS

Graphics

Graphics Engine

• Intel® Graphics

Maximum Display Output

• Supports Quad Independent Display

CDS

• 1x CDS Connector (1920 x 1080 @60Hz)

DP

• 1x DisplayPort Connector (4096 x 2304@60Hz)

  * Verified maximum resolution: 3840x2160@ 60Hz

HDMI

• 1x HDMI Connector (3840 x 2160 @30Hz)

VGA

• 1x VGA Connector (1920 x 1080 @60Hz)

Audio

Audio Codec

• Realtek® ALC888, High Definition Audio

Line-out

• 1x Line-out, Phone Jack 3.5mm

Mic-in

• 1x Mic-in, Phone Jack 3.5mm

I/O

LAN

• 2x 2.5GbE LAN, RJ45

 - GbE1: Intel® I226

 - GbE2: Intel® I226

COM

• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9

USB

• 2 x USB 3.2 Gen2x1 (10Gbps), Type A

• 1 x USB 3.2 Gen1x1 (5Gbps), Type A

• 1 x USB 2.0 (480Mbps), Type A

DIO

• 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage / Expansion

2.5" SSD/HDD

• 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)

M.2 Key E Socket

• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion

M.2 Key B Socket

• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/GNSS/Storage/Add-on Card Expansion

• 1x M.2 Key B Type 3042 (PCIe Gen 3x2 / USB2.0), Support Storage/Add-on Card Expansion

PCI Express

--

• 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card)

• Supports maximum dimensions of add-on card (H x L) : 111 x 169mm

SIM Socket

• 1 x Front Accessible SIM Socket

CFM (Control Function Module) Interface

• 1x CFM Interface for optional IGN Module Expansion

• 1x CFM Interface for optional PoE Module Expansion

CDS (Convertible Display System) Interface

• 1x CDS Interface for Convertible Display Module

Other Function

RAID

• RAID 0/1

Clear CMOS Switch

• 1x Clear CMOS Switch

Reset Button

• 1x Reset Button

Watchdog Timer

• Software Programmable Supports 256 Levels System Reset

OSD Button

• LCD On/Off, Brightness Up, Brightness Down

Internal Speaker

• AMP 2W + 2W

Status LED Indicator

• Power LED, Storage LED

Antenna Holes

• 6x Antenna Holes

Power

Power Button

• 1x ATX Power On/Off Button

Power Mode Switch

• 1x AT/ATX Mode Switch

Power Input

• 9 - 48VDC, 3-pin Terminal Block

Remote Power On/Off

• 1x Remote Power On/Off, 2-pin Terminal Block

Max. Power Consumption

• Intel Core™ Ultra 7 Processor 165UL: 79.7W

- Test conducted with CPU, 1x RAM, and 1x storage

- 100% load during burn-in testing

Inrush Current (Peak)

• Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V

Operating Stystem

Windows

• Windows®11, Windows®10

Linux

• Ubuntu Desktop 24.04 LTS

Physical

Dimension ( W x D x H )

• 254.5 x 190 x 49.5 mm

• 254.5 x 190 x 69 mm

Weight Information

• 2.16kg

• 2.26kg

Mechanical Construction

• Extruded Aluminum with Heavy Duty Metal

Mounting

• Wall / VESA / CDS / DIN Rail

Physical Design

• Fanless Design

• Jumper-less Design

Reliability & Protection

Reverse Power Input Protection

• Yes

Over Voltage Protection

• Protection Range: 51~58V

• Protection Type: shut down operating voltage, re-power on at the preset level to recover

Over Current Protection

• 15A

CMOS Battery Backup

• SuperCap Integrated for CMOS Battery Maintenance-free Operation

MTBF

• 206,043 Hours

  - Database: Telcordia SR-332 Issue3, Method 1, Case 3

Environment

Operating Temperature

• -40°C to 65°C (-40°F to 149°F)

  * PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (withoutthermal throttling)

  * With extended temperature peripherals; Ambient with air flow

  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temperature

• -40°C to 85°C (-40°F to 185°F)

Relative Humidity

• 95%RH @ 65°C (non-Condensing)

Shock

• Operating, 50 Grms (w/SSD, according to IEC60068-2-27)

• MIL-STD-810H

Vibration

• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-6)

• MIL-STD-810H

EMC

• CE, UKCA, FCC, ICES-003 Class A

EMI

• CISPR 32 Conducted & Radiated: Class A

• EN/BS EN 55032 Conducted & Radiated: Class A

• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A

• EN/BS EN61000-3-3 Voltage fluctuations & flicker

• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A

EMS

• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m

• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV

• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV

• EN/IEC 61000-4-6 CS: 10V

• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m

• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz

Industrial Environment

• EMC

  - EN/BS/IEC 61000-6-4: 2019 Class A

  - EN/BS/IEC 61000-6-2: 2019

Safety

• UL, cUL, CB, IEC, EN 62368-1

Ordering Information

Available Models

Model No.

Description

CV-221C-R10/P2302-R10

21.5" FHD 16:9 Slim Bezel Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer, Projected Capacitive Touch, and AG Coating

CV-221C-R10/P2302E-R10

21.5" FHD 16:9 Slim Bezel Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating



Model Configuration


CV-221C

P2302

P2302E

CV-221C/P2302

V

V

--

CV-221C/P2302E

V

--

V



Package Checklist

• CV-221C/P2302 Series Panel PC x1

• PCI / PCIe Card Installation Kit x 1 (For P2302E Only)

• Power Terminal Block x1

• Screws Pack x4

• Remote Power On/Off Terminal Block Connector x1

• Heatsink kit x1

• DIO Terminal Block Connector x2

• M.2 Key B Type 3052 to 3042 Adapter Bracket x1

• Panel Mounting Kit x14

　



Optional Modules and Accessories

Model No.

Description

CFM-IGN101

CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable

CFM-PoE08-R10

CFM Module with PoE Control Function, Individual Port 25.5W (For P2302 Only)

CFM-PoE09-R10

CFM Module with PoE Control Function, Individual Port 25.5W (For P2302E Only)

MEC-LAN-2002i

M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-40°C~+85°C), 2x RJ45 Connector

MEC-LAN-2002i-S

M.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-0°C~+70°C), 2x RJ45 Connector

MEC-USB-2002-SP

M.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C), w/ IDE 20P 90° Cable, 2x USB Type A Connector

*Only one MEC-USB-2002-SP can be installed on the P2302E

MEC-USB-2002C

M.2 2242/2260/2280 2-port USB 3.2 Board(-0°C~+70°C), 2x USB Type C Connector

MEC-COM-2012

M.2 2242/2260/2280 (B+M Key) 2-port RS-232 Serial Board (-40°C~+85°C), 2x DB9 Connector

MEC-COM-2032i

M.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector

RC-E4-02

Riser Card with 1x PCIe x4 Slot (For P2302E Only)

RC-PI-02

Riser Card with 1x PCI Slot (For P2302E Only)

UB1203

Universal Bracket with 2x DB9 Cutout for MEC-COM Expansion

UB1211

Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion

UB1233-R10

Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion

UB1234-R10

Universal Bracket with 2x USB Type A Cutout for MEC-USB (M.2 interface) Expansion

URM01

Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor

GST120A24-CIN

Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI

GST220A24-CIN

Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI

GST360A24-CIN

Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI

Related Posts

  1. Cincoze Slim Bezel Industrial Panel PCs
Builder Banner

Need something specific?

We build to order.

We can customise any solutions according to your specifications. Click below to learn more
and contact us.

Learn more Speak to a specialist
  1. Cincoze Slim Bezel Industrial Panel PCs

Product

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

Sign In
