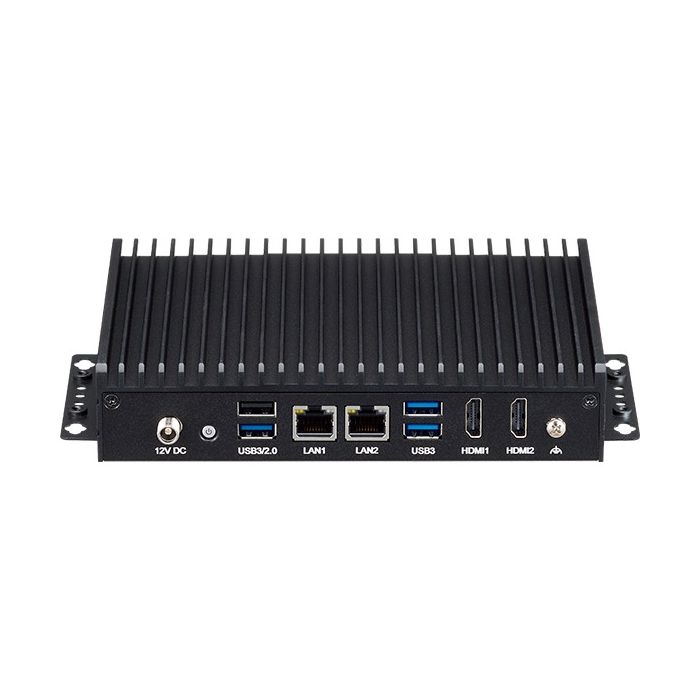

Neu-XE102-N50-4C Fanless Edge Computing System with Intel N50
Edge Computing System Powered by Intel® Processor N50
Key Features:
- Intel® processor N50
- Slim compact chassis and fanless design
- 1 x DDR4 SO-DIMM, up to 16GB
- Support 2 x HDMI® 1.4 output 4K@30Hz
- TPM 2.0 design for security
- Rich I/O connectivity: 2 x 2.5GbE LAN, 3 x USB 3.2, 1 x USB 2.0, 4 x COM
- 1 x M.2 Key M 2242, supports a PCIe 3.0 x1 NVMe storage device
- 1 x Mini PCIe slot, supports a Wi-Fi and LTE module
- DC 12V power input
Description
Product Overview
The NEXCOM Neu-XE102-N50-4C is a compact fanless edge system designed for IoT gateways, smart city deployments and digital signage applications. Powered by the Intel Processor N50, it delivers efficient performance with low power consumption in a slim, durable enclosure. With dual-display support, high-speed networking, and flexible expansion options, the system is well-suited for kiosks, transport systems, retail environments, and industrial edge deployments where reliability and connectivity are essential.
Key Features
Efficient and Low Power Performance
-
Intel Processor N50 platform with low power consumption and stable operation
-
Integrated Intel UHD graphics for multimedia and display applications
-
Supports DDR4 memory up to 16 GB for consistent system performance
-
Designed for continuous operation in embedded and edge environments
Dual Display Support
-
Dual HDMI outputs supporting up to 4K resolution
-
Suitable for digital signage, kiosks and multi-screen systems
-
Enables simultaneous content display across multiple outputs
High Speed Connectivity
-
Dual 2.5 Gigabit Ethernet ports for fast and reliable networking
-
Multiple USB ports for peripherals and data devices
-
Four serial COM ports supporting RS-232 and RS-232/422/485
-
GPIO support for system control and interface applications
Storage and Expansion
-
M.2 slot supporting PCIe SSD storage
-
Mini PCIe slot with SIM support for LTE and WiFi modules
-
Compatible with modern wireless standards, including WiFi 6
-
Flexible expansion for communication and storage requirements
Rugged Fanless Design
-
Fanless enclosure for silent operation and reduced maintenance
-
Compact chassis suitable for space-constrained installations
-
Designed to withstand vibration in industrial environments
-
Suitable for indoor and semi-industrial deployments
Applications and Use Cases
The Neu-XE102-N50-4C is suitable for:
-
IoT gateways and edge data processing
-
Self-service kiosks and retail systems
-
Digital signage and transport information displays
-
Smart city infrastructure and intelligent poles
-
Industrial automation and monitoring systems
Dimensions/Drawings
Download
More Information
| Brand | Nexcom | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
Ordering Information
Neu-XE102-N50-4C (P/N: 10W10E10201X0)
Intel® processor N50, 6W fanless system
