View Cincoze CV-221C/P2102 21.5” Slim Panel PC

SKU: CV-221C-R10/P2102x-ix-R10

21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core Embedded Computer, Projected Capacitive Touch, and AG Coating

Key Features:

21.5" Full HD LCD (1920 x 1080) with 16:9 Aspect Ratio
Projected Capacitive Touch with Anti-Glare Coating.
Wide Viewing Angle of 178°/178°
Onboard 8th Generation Intel® Core™ U Series Processor
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Front Panel IP66 Compliant

Datasheet

Description

Product Overview

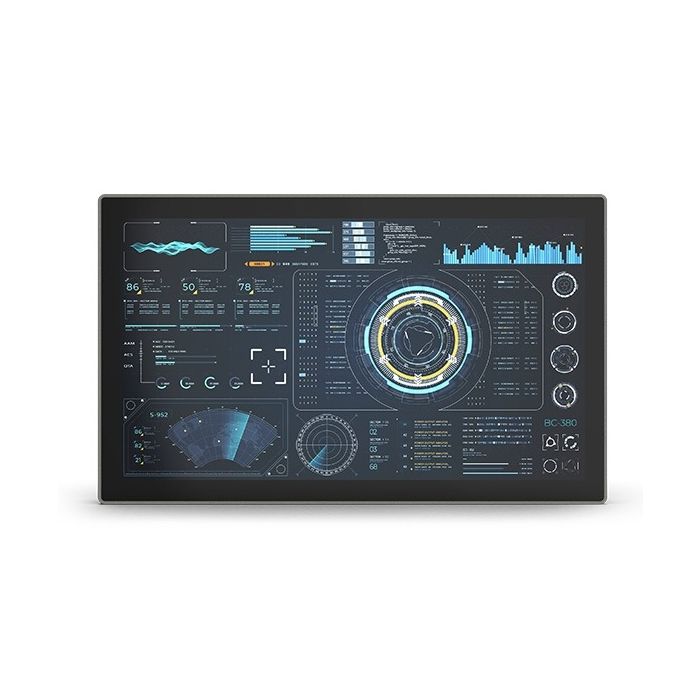

The Cincoze CV-221C / P2102 Series is a 21.5" Full HD industrial panel PC designed for HMI, smart manufacturing and industrial automation applications. Featuring a slim bezel design, projected capacitive touch and anti-glare coating, it provides a modern and durable interface for machine control and industrial visualisation. Powered by Intel Core embedded computing platforms, the series combines responsive processing performance, rugged construction and flexible expansion for demanding industrial environments.

Key Features

21.5 Inch Full HD Industrial Display

21.5-inch Full HD display with 1920 × 1080 resolution
16:9 widescreen format for industrial visualisation and monitoring
Projected capacitive multitouch interface for responsive operation
Anti-glare coating improves visibility in bright environments

Intel Core Embedded Performance

Intel Core embedded computing platform for industrial workloads
Designed for responsive multitasking and machine interface applications
Supports industrial visualisation, control and edge processing
Suitable for continuous operation in demanding environments

Slim Bezel Industrial Design

Slim bezel construction for modern machinery and panel integration
Flat front surface for easy cleaning and maintenance
Fanless architecture for silent operation and improved reliability
Compact design suited to industrial cabinets and control systems

Rugged Industrial Construction

Front IP66 compliant protection against dust and water
Built for factory automation and industrial environments
Designed for stable operation under continuous workloads
Suitable for harsh manufacturing and machine control applications

Flexible Expansion and Connectivity

Multiple LAN, USB and serial communication interfaces
Supports industrial peripheral and controller integration
Expansion support for storage, wireless and communication modules
Designed for scalable industrial deployment requirements

Applications and Use Cases

The CV-221C / P2102 Series is suitable for:

Industrial HMI and operator control panels
Smart manufacturing and factory automation
Production line monitoring and visualisation
Machine control and process management
Industrial edge computing systems

CV-221C/P2102 Dimensions/Drawings

CV-221C/P2102E Dimensions/Drawings

Download

Datasheet

More Information

Brand

Cincoze

Specifications

CV-221C

Model Name		CV-221C
Display	LCD Size	• 21.5” (16:9)
	Max. Resolution	• 1920x1080
	Brightness (cd/m2)	• 300
	Contrast Ratio	• 5000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.24825 (H) x 0.24825 (V)
	Viewing Angle (H-V)	• 178 / 178
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touch Type	• Projected Capacitive
	Anti-Glare	• V
	Wet Touch Tracking	• V
Physical	Dimension ( W x D x H )	• 522.4 x 318.3 x 63.4 mm
	Weight Information	• 5.28 kg
	Mechanical Construction	• Die-Casting Flat Surface
Power	Power Consumption	• 24.8 W (Max.)
Environment	Front Panel Protection	• IP 66 Compliant
	Operating Temperature	• 0°C - 60°C (32°F to 140°F) - With Industrial Grade peripherals; Ambient with air flow
	Storage Temperature	• -20°C - 60°C (-4°F to 140°F)
	Relative Humidity	• 90% RH @ 40°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50/60 Hz, 30A/m • EN/IEC 61000-4-11 (50/60 Hz): Voltage dips duration up to 25/30 cycles; interruptions up to 250/300 cycles.
	Industrial Environment	• EMC: - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019
	Railway	• EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 (w/ M1101 only) - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019

P2102 Series

Model Name		P2102	P2102E
System	Processor	Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) • TDP: 15 W
System	Memory	2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 64 GB
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 620
	Maximum Display Output	Supports Triple Independent Display
	CDS	1x CDS Connector for Cincoze Display Module
	VGA	1x VGA Connector(1920 x 1200 @60Hz)
	DP	1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210
	USB	3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A)
	Serial Port	4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	PCI Express		1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
	M.2 E Key Socket	1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
	SIM Socket	1 x Front Accessible SIM Socket
	Universal Bracket		2x Universal I/O Bracket
	CFM (Control Function Module) Interface	2x CFM Interface for optional IGN or PoE Module Expansion
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
Other Function	Clear CMOS Switch	1 x Clear CMOS Switch
	Instant Reboot	Support 0.2sec Instant Reboot technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Reset Button	1x Reset Button
Power	Power Button	1x ATX Power On/Off Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	254.5 x 190 x 41.5 mm	254.5 x 190 x 61 mm
	Weight Information	2.2 kg	2.7 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS / DIN Rail
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	231,243 hours
Operating System	Microsoft® Windows®	Windows®10
Operating System	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 70°C
	Relative humidity	95% RH @ 70˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)	• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN62368-1
	Fire Protection	EN 45545-2

Ordering Information

**Available Models**
Model No.	Product Description
CV-221C-R10/P2102-i5-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-8365UE Quad-Core Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2102E-i5-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i5-8365UE Quad-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2102-i3-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-8145UE Dual-Core Embedded Computer, Projected Capacitive Touch, and AG Coating
CV-221C-R10/P2102E-i3-R10	21.5" FHD 16:9 Slim Bezel Panel PC with Intel® Core i3-8145UE Dual-Core Expandable Embedded Computer, Projected Capacitive Touch, and AG Coating

**Model Configuration**
	CV-221C	P2102 (i3/i5)	P2102E (i3/i5)
CV-221C/P2102	V	V	--
CV-221C/P2102E	V	--	V

**Package Checklist**
CV-221C/P2102 Series Panel PC x 1	Power Terminal Block Connector (Female) x 1
Panel Mounting Kit x 14	Screw Pack x 5
Thermal Pad (for CPU Thermal Block) x 1	Remote Power On/Off Terminal Block Connector x 1
DIO Terminal Block Connector (Female) x 2	PCI / PCIe Card Installation Kit x 1(For P2102E only)

**Optional Modules and Accessories**
Model No.	Description
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only)
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only)
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2102E only)
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P2102E only)
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE04	CFM Module with PoE Control Function, Individual Port 25.5W (For P2102 only)
CFM-PoE05	CFM Module with PoE Control Function, Individual Port 25.5W (For P2102E only)
RC-E4-02	Riser Card with 1x PCIe x4 Slot (For P2102E only)
RC-PI-02	Riser Card with 1x PCI Slot (For P2102E only)
UB1203	Universal Bracket with 2x DB9 Cutout (For P2102E only)
UB1211	Universal Bracket with 2x RJ45 Cutout (For P2102E only)
UB1214	Universal Bracket with 2x USB Cutout (For P2102E only)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
GST360A24-CIN	Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
