NDiS-B338 Fanless Embedded PC Celeron J6412

In stock
SKU:
NDiS-B338
Brand: Nexcom

Slim/fanless player with extended temperature durability, HDMI display, USB 3.0 ports, and a RS232/RS422/RS485 interface

Key Features:

  • Intel Celeron J6412 processor
  • Support 3 x HDMI 2.0 output
  • Support 12V~24V DC input
  • Compact and slim design (H: 38.8mm)
  • 2 x DDR4 up to 32G
  • 1 x M.2 2280 Key M for optional storage device
  • 1 x M.2 3042/3052 Key B for optional LTE or 5G modules
  • 1 x mini-PCIe for optional Wi-Fi and LTE
  • Fanless design

Downloads:

pdf
Datasheet
pdf
User Manual
Enquire Now
Enquire about this product

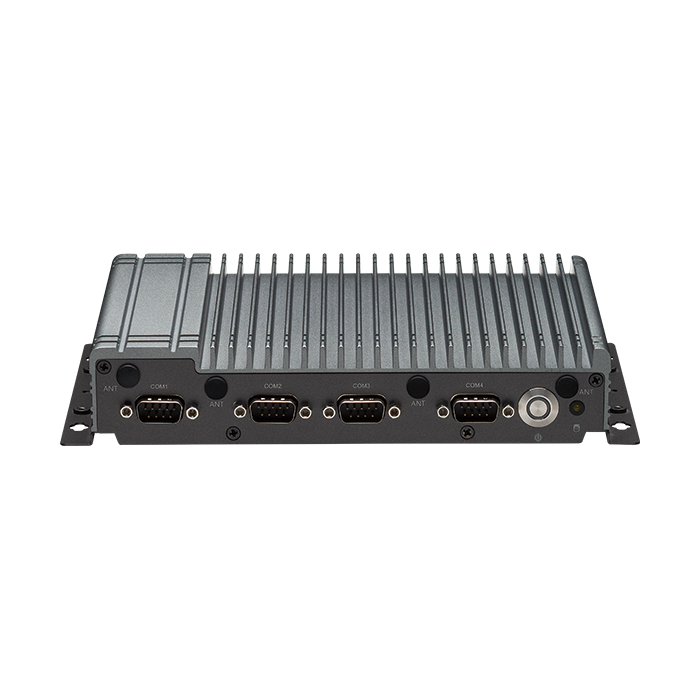

main product photo
We build to order
CPU Support
  • Intel Celeron J6412 processor, 10W
Graphic
  • Intel UHD graphics
Main Memory
  • 2 x 260-pin SO-DIMM sockets, supports DDR4 3200MT/s MHz, Non-ECC, un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front
  • Power button with LED
  • 4 x COM port
    - COM1: RS232/422/485
    - COM2~COM4: RS232
  • 4 x Antenna holes
I/O Interface-Rear
  • 3 x HDMI 2.0
  • 2 x RJ45 Gigabit LAN with LEDs
  • 1 x USB 3.1
  • 5 x USB 2.0
  • 1 x Mic-in
  • 1 x Line out
  • 12V~24V DC input
Internal I/O
  • 8 x GPIO (4 x GPI, 4 x GPO)
  • 1 x 4-pin connector for smart FAN
  • TPM 2.0 onboard
  • 1 x USB 2.0 pin header
  • 1 x Speaker-out pin header with 2.5W/8Ω amplifier
Expansion
  • 1 x M.2 3042/3052 Key B (USB 3.2, USB 2.0) for optional LTE or 5G modules
  • 1 x mini-PCIe slot (USB 2.0, PCIe x1, SATA) for optional Wi-Fi and LTE
  • 1 x SIM slot
Storage
  • 1 x M.2 2280 Key M (PCIe Gen3 x4) for optional storage modules
Power Supply
  • 1 x External 60W AC/DC power adapter
  • Input: 100VAC to 240VAC
  • Output: DC+12VDC
Environment
  • Operating temperature: -20°C to 60°C
  • Storage temperature: -20°C to 80°C
  • Humidity: 10 to 95% (non-condensing)
Dimensions
  • 224mm (W) x 150mm (D) x 38.8mm (H) (with wall mount bracket)
Certifications
  • CE (EN55035 + EN55032)
  • FCC Class A (EMI Part 15B)
  • LVD (EN62368-1)
Operating System
  • Win10
