LGAM-7-27-24-58 GPS+MIMO 5G/4G + WIFI 3m SMA P

SKU: LGAM-7-27-24-58

Low Profile Multifunction MiMo Antenna with GPS, MIMO 5G/4G, WIFI 3m cable SMA

Key Features:

Compact low profile MiMo LTE antenna
1x or 2×2 MiMo dual-band WiFi
Optional GNSS version available
High performance in a distinctive design
Covers all 2G/3G/4G/5G LTE cellular band
Dual-band 2.4/5GHz WiFi
Weatherproof IP66 Certified design
Single hole mount with a small footprint

Datasheet

Description

Product Overview

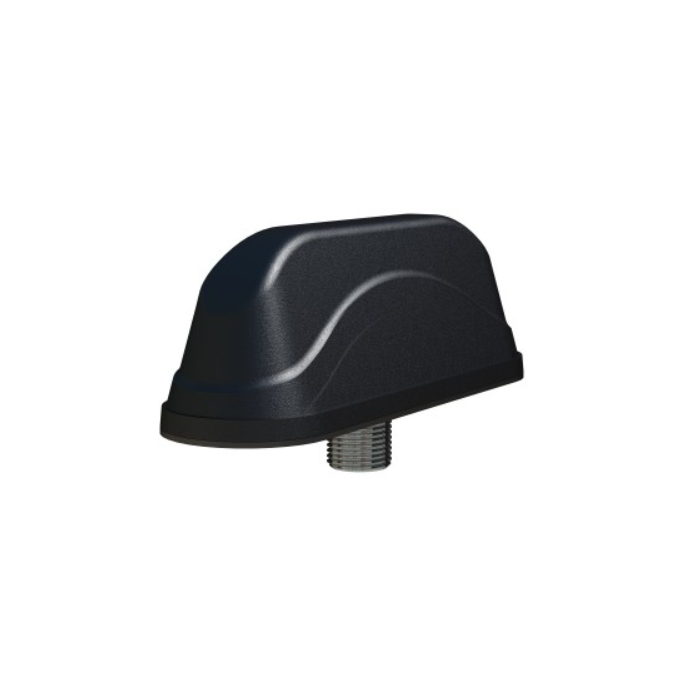

The Panorama LGAM-7-27-24-58 is a black multifunction MIMO antenna designed for reliable cellular, GPS and WiFi connectivity in vehicle and mobile applications. It combines 2 x 2 MIMO cellular, one GPS module and 2 x 2 MIMO WiFi in a single low profile housing, helping simplify installation while supporting multiple radio systems from one antenna position. With 3 metre cable lengths and SMA connectors, it is suited to transport, fleet, public safety and industrial mobile networking applications.

Key Features

Multifunction Antenna Design

Combines cellular, GPS and WiFi in one compact antenna
Reduces the need for multiple separate antennas on the vehicle roof
Black low-profile housing suited to discreet vehicle installations
Designed for mobile routers, gateways and onboard communication systems

Cellular Connectivity

2 x 2 MIMO cellular configuration
Supports multiband cellular operation across 4G and 5G router deployments
Supplied with 3 metre cellular cables
SMA male connectors for cellular interfaces

GPS Positioning

Integrated GPS module for location tracking and fleet applications
Supports vehicle tracking, routing and telematics systems
Supplied with 3 metre GPS cable
SMA male connector for GPS interface

WiFi Connectivity

2 x 2 MIMO WiFi configuration
Supports onboard wireless networking for passengers, devices or service equipment
Supplied with 3 metre WiFi cables
Reverse polarity SMA connectors for WiFi interfaces

Transport and Mobile Use

Suitable for buses, trucks, emergency vehicles and service fleets
Designed for routers requiring cellular, GPS and WiFi from a single antenna platform
Helps improve installation efficiency and cable management
Ideal for mobile broadband, telematics and onboard connectivity systems

Download

Datasheet

More Information

Brand

Panorama Antennas

Specifications

Electrical Data
LTE Frequencies	698-960/1710-2170/2500-3800MHz
Global Positioning	Optional GPS L1 1575; GPS L1 1575
Wifi Frequencies	2.4/5.0GHz - (Optional)
Peak Gain (dBi)	5
LTE MiMo	2x2
WiFi MiMo	2x2
Max Input Power (W)	25
Pattern	Omni-directional
Ground Plane Independent	Yes
Global Positioning Data
LNA Gain (dB)	26
Mechanical Data
Length (mm)	150
Width (mm)	44
Height (mm)	50
Mounting Data
Mounting Type	Panel Mount
Mounting Method	18mm (3/4\") Mounting Bush
