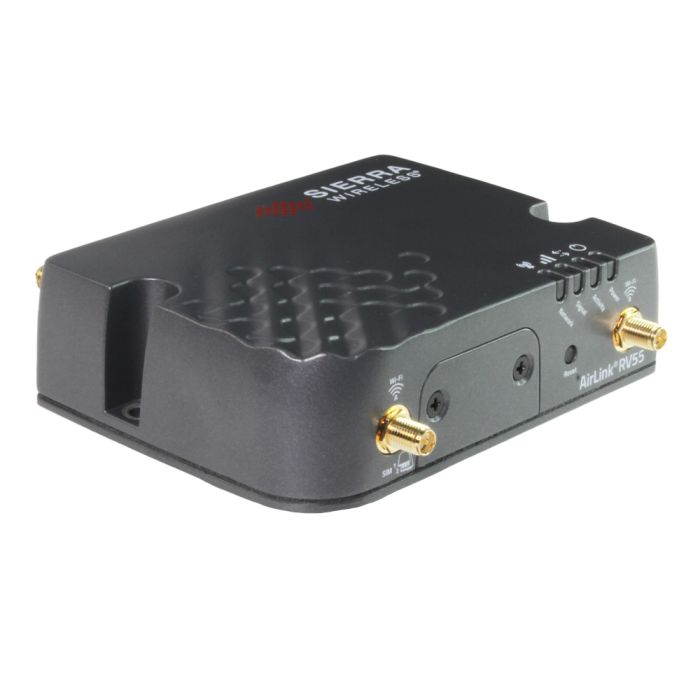

AirLink RV55 Rugged LTE-A Pro Router
In stock
SKU:
RV55
Brand: Sierra Wireless
The industry's most rugged, compact, LTE-A Pro router, designed for connecting critical remote assets & infrastructure, and vehicles.
Key Features:
- LTE-A PRO up to 600/150Mps
- Dual SIM automatic network failover
- High performance GNSS
- 1 x GbE, 2 x RS232 (DB9), 1 x Digital inputs
- Optional Dual-Band – Dual Chipset Wi-Fi
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management: Cloud – ALMS, Hosted – AMM
Enquire Now
Enquire about this product
|
CELLULAR
|
|
|---|---|
|
Peak D/L
|
RV55 LTE – Up to 150 Mbps, Cat 4 (WP7610 | WP7607)
RV55 LTE-A PRO – Up to 600 Mbps, Cat 12 (EM7511 | EM7565) RV55 LTE – Up to 50 Mbps
RV55 LTE-A PRO – Up to 150 Mbps |
|
Peak U/L
|
|
|
4G LTE
|
|
|---|---|
|
Frequency Bands
|
RV55 LTE-A PRO – 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 1800(B9), 700(B12), 700(B13), 850(B18), 850(B19), 800(B20), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B41, TDD B42, TDD B43, TDD B46, CBRS B48, 1700(B66)
|
|
3G HSPA/HSPA+
|
|
|---|---|
|
Frequency Bands*
|
RV55 LTE-A PRO – 2100(B1), 1900(B2), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
|
|
2G EDGE/GSM/GPRS
|
|
|---|---|
|
Frequency Bands
|
RV55 LTE-A PRO – 850, 900, 1800, 1900
|
|
APPROVALS
|
|
|---|---|
|
Regulatory**
|
RV55 LTE-A PRO – FCC, IC, PTCRB, GCF, CE, RCM, IFT, Anatel
RV55 LTE-A PRO – Verizon, AT&T, Telstra (Planned)
|
|
Carrier**
|
|
|
PART NUMBER
|
|
|---|---|
|
Part Number
|
RV55 LTE-A PRO – 1104332, 1104331 (Wi-Fi), 1104331 (Wi-Fi)
|
*For carrier-specific band support please refer to the hardware user guide.
**All approvals are either granted or in progress. Call for the latest approval status.
|
HOST INTERFACES
|
|
|---|---|
|
10/100/1000 Ethernet (RJ45)
RS-232 serial port (DB-9) USB 2.0 Micro-B Connector 3 SMA antenna (cellular, diversity, GNSS) 2 RP-SMA antenna (1×1 Wi-Fi, Optional) Active GPS antenna support |
|
|
SECURITY
|
|
|---|---|
|
Remote Authentication (LDAP, RADIUS, TACACS+, DMZ)
Inbound and Outbound Port filtering Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update |
|
|
WI-FI (OPTIONAL)
|
|
|---|---|
|
Dual Band 2.4/5GHz Wi-Fi
Dual Radio, 802.11 b/g/n/ac (Wave2 Client Mode) Support for 10 clients, WPA2 Enterprise per radio Output power 16dBm Configurable as Dual Band Access Point (AP) or AP+Client Mode Single SSID Support per radio Captive Portal |
|
|
SATELLITE NAVIGATION (GNSS)
|
|
|---|---|
|
LTE-A Pro Variant: 30 Channel GPS and GLONASS Receiver (Tracking Sensitivity: -160dBm)
LTE Variant: 48 Channel Dedicated GNSS Receiver (Tracking Sensitivity: -162 dBm) Accuracy: <2 m (50%), <5 m (90%), <0.2 m/s Acquisition Time: 1s Hot Start Reports: NMEA 0183 V3.0, TAIP, RAP, XORA Multiple Redundant Servers Reliable Store and Forward |
|
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-40°C to +70°C / -40°F to +158°F
|
|
Operating Temperature (Wi-Fi variant)
|
-30°C to +70°C / -22°F to +158°F
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64-rated ingress protection |
|
|
POWER
|
|
|---|---|
|
Input/Operating Voltage
|
Input Voltage: 7 to 36 VDC
Configurable I/O pin on the power connector
|
|
Power Modes
|
Idle Power: 900mW (75 mA @ 12VDC)
Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption |
|
NETWORK AND ROUTING
|
|
|---|---|
|
Network Address Translation (NAT)
Reliable Static Route Port Forwarding Dynamic DNS Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP |
|
|
VPN**
|
|
|---|---|
|
IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels Split Tunnel Dead Peer Detection (DPD) FIPS 140-2 compatible |
|
|
INDUSTRY CERTIFICATION
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL 60950****
|
|
Vehicle Usage
|
E-Mark (UN ECE Regulation 10.04)
|
|
Environmental
|
RoHS, REACH, WEEE
Hazardous Environments: Class 1 Div 2– Ambient temperatures of -30°C to +60°C |
|
Rail Usage
|
EN50155, ISO7637-2, SAE J1455 (Shock & Vibration)
|
|
SUPPORT AND WARRANTY
|
|
|---|---|
|
1 year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription.
Unrestricted critical firmware updates. |
|
|
LAN (ETHERNET/USB)
|
|
|---|---|
|
DHCP Server Host Interface Watchdog
IP Passthrough PPPoE VLAN |
|
|
SERIAL
|
|
|---|---|
|
TCP/U DP PAD Mode
Modbus (ASCII, RTU, Variable) PPP DNP3 Interoperability Dual Serial option (with an accessory) |
|
|
APPLICATION FRAMEWORK
|
|
|---|---|
|
ALEOS Application Framework (AAF)
LUA Scripting Language |
|
|
NETWORK MANAGEMENT
|
|
|---|---|
|
Secure mobile network & asset management application available in the cloud or licensed platform in the enterprise data centre
Fleet-wide firmware upgrade delivery Router configuration and template management Router staging over the air and local Ethernet connection Over-the-air software and radio module firmware updates Device Configuration Templates Configurable monitoring and alerting Remote provisioning and airtime activation (where applicable) |
|
|
ROUTER MANAGEMENT
|
|
|---|---|
|
ALMS
Local web user interface AT Command Line Interface (Telnet/SSH/Serial) SMS Commands SNMP |
|
|
EVENTS ENGINE
|
|
|---|---|
|
Custom event triggers and reports
Configurable interface, no programming |
|
|
Event Types
|
Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
|
|
Report Types
|
RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
|
|
Event Actions
|
Drive Relay Output
|
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
RV55, DC Power Cable, and Quick Start Guide
|
|
Other Accessories (Sold Separately)
|
|
|
DIMENSIONS
|
|
|---|---|
|
AirLink RV55 – Main Body
|
119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors)
4.69 in x 1.34 in x 3.35 in (3.70 in including connectors) Weight: 320 g |
*For carrier-specific band support please refer to the hardware user guide
**All approvals are either granted or in progress. Call for the latest approval status
*** IPsec, GRE and OpenVPN Client are not available in the member states of the EAEU
**** Ambient temperatures of -30C to +60C
