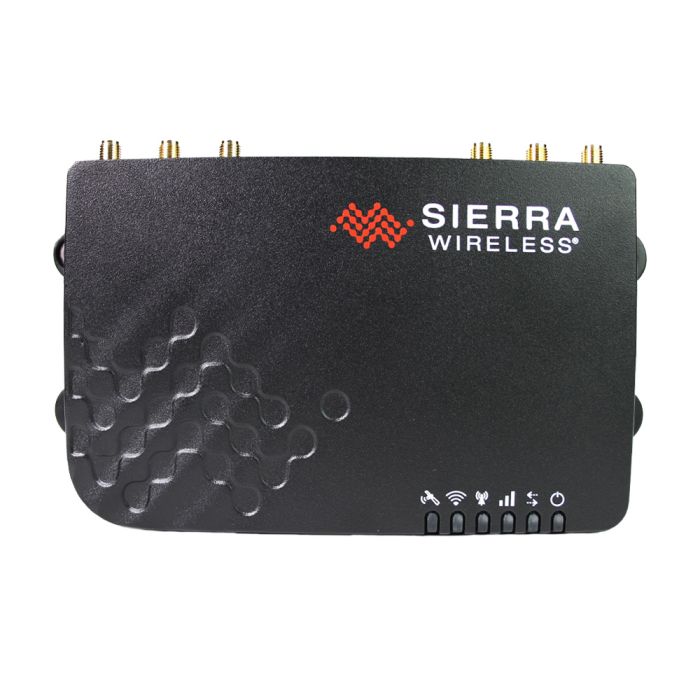

Airlink MP70 High Performance LTE Vehicle Router
In stock
SKU:
MP70-PRO+WIFI
Brand: Sierra Wireless
High-performance, LTE-Advanced vehicle router with GPS+CAN for mission-critical applications.
Key Features:
- LTE-A up to 300/50Mps, LTE-A PRO version 600/150Mbps
- Dual SIM automatic network failover
- Opt. Dual band 2.4/5GHz 802.11ac Wifi AP/Client/WAN mode
- GNSS - GPS, GLONASS, Galileo, Beidou
- 4 x GbE with WAN failover
- OBD II/ J1939/ J1708 interface over serial
- -30 ~ +70°C operation
- MIL 810-G, IP64 rated
- 7~36VDC input
- Remote, secure network management - Cloud – ALMS, Hosted – AMM
Enquire Now
Enquire about this product
|
CELLULAR
|
|
|---|---|
|
Peak D/L
|
Up to 600 Mbps, Cat 12
Up to 150 Mbps
|
|
Peak U/L
|
|
|
4G LTE
|
|
|---|---|
|
Frequency Bands
|
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
Band 26, 28
|
|
Public Safety Bands
|
|
|
3G WCDMA/HSPA+
|
|
|---|---|
|
Frequency Bands
|
B1, B2, B4, B5, B6, B8, B9, B19
|
|
Approvals
|
|
|---|---|
|
Regulatory
|
CE, GCF, RED, RCM
|
|
Carrier*
|
Telstra
|
|
Part Numbers
|
|
|---|---|
|
Part Numbers
|
1104072, 1104074 (Wi-Fi)
|
|
HOST INTERFACES
|
|---|
| 4 Gigabit RJ-45 Ethernet ports
RS-232 serial port (DB-9)
USB 2.0 Micro-B Connector 3 SMA antenna connectors (cellular, diversity, GNSS) Active GNSS antenna support |
|
SECURITY
|
|---|
| Remote Authentication (LDAP, RADIUS, TACACS+) DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP MAC Address Filtering PCI compatible Secure Firmware Update FIPS 140-2 |
|
SATELLITE NAVIGATION (GNSS)
|
|---|
| Dedicated GNSS Receiver supporting GPS, GLONASS, BeiDou, Galileo
Tracking Sensitivity: -162 dBm
Reports: NMEA 0183 V3.0, TAIP, RAP, XORA Multiple Redundant Servers Reliable Store and Forward Inertial Navigation Sensors (Accelerometer and Gyro) |
|
WI-FI (OPTIONAL)
|
|---|
| Dual Band 2.4/5GHz Wi-Fi
802.11 b/g/n/ac with support for 128 clients
WPA2 Enterprise High output power Simultaneous AP/Client Mode WiFi as WAN Mode (Multiple SSIDs, Captive Portal) |
|
LAN (ETHERNET/USB)
|
|---|
| DHCP Server
IP Passthrough
VLAN Host Interface Watchdog PPPoE |
|
ENVIRONMENTAL
|
|
|---|---|
|
Operating Temperature
|
-30°C to +70°C / -22°F to +158°F
|
|
Storage Temperature
|
-40°C to +85°C / -40°F to +185°F
|
|
Humidity
|
95% RH @ 60°C
|
|
Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
IP64-rated ingress protection |
|
|
POWER
|
|
|---|---|
|
Input/Operating Voltage
|
7 to 36 VDC
|
|
Power Modes
|
Low voltage disconnect to prevent battery drain
Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown |
|
INPUT/OUTPUT
|
|---|
|
Configurable I/O (5 pins total)
|
|
SERIAL
|
|---|
| TCP/UDP PAD Mode
Modbus (ASCII, RTU, Variable)
PPP DNP3 Interoperability |
|
NETWORK AND ROUTING
|
|---|
| Network Address Translation (NAT) Reliable Static Route
Port Forwarding Dynamic DNS
Policy Routing Verizon PNTM NEMO/DMNR IPV6 Gateway VRRP |
|
VPN
|
|---|
| IPsec, GRE, and OpenVPN Client
Up to 5 concurrent tunnels
Split Tunnel Dead Peer Detection (DPD) |
|
ROUTER MANAGEMENT INTERFACES
|
|---|
| Local web user interface
AT Command Line Interface (Telnet/SSH/Serial)
SNMP SMS Commands |
|
APPLICATION FRAMEWORK
|
|---|
| ALEOS Application Framework (AAF)
LUA Scripting Language
|
|
EVENTS ENGINE
|
|---|
| Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV) Event Actions: Drive Relay Output |
|
INDUSTRY CERTIFICATIONS
|
|
|---|---|
|
Safety
|
IECEE Certification Bodies Scheme (CB Scheme), UL60950
|
|
Vehicle Usage
|
E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical)
|
|
Environments
|
RoHS2, REACH, WEEE
|
|
Rail Usage
|
EN50155 (Rolling Stock)
|
|
SUPPORT AND WARRANTY
|
|---|
| 1-year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription. Unrestricted critical firmware updates. |
|
ACCESSORIES
|
|
|---|---|
|
In The Box
|
MP70, DC Power Cable and Quick Start Guide
|
|
Other Accessories (Sold Separately)
|
|
|
DIMENSIONS
|
|
|---|---|
|
190mm x 45mm x 105mm (112mm including connectors)
7.5in x 1.75 in x 4.1 in (4.4 in including connectors) |
|
|
Weight
|
0.76kg / 1.68 lb
|
*For carrier specific band support please refer to the hardware user guide.
