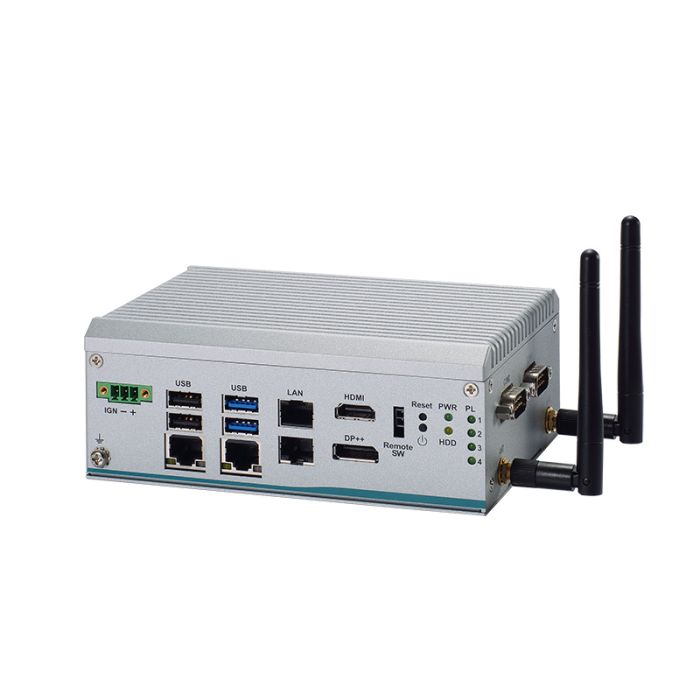

Shop eBOX100A Low Power Fanless Embedded System

SKU: eBOX100A-xxxx-xx

Fanless Embedded System with N97/Atom/i3-N305, 2/4 LAN, HDMI, DP++, 2 COM

Key Features:

Intel® processor N97/Core™ i3-N305 SoC
1 DDR5 SO-DIMM, up to 16GB
Operating temperature range from -40°C to +60°C
Available in 2-port or 4-port 2.5GbE configurations
Intelligent power management for USB power on/off control
Supports HDMI (FHD) and DisplayPort++ for dual displays
Front-access I/O design

Datasheet

Description

The Axiomtek eBOX100A is a powerful and versatile embedded system featuring the Intel® processor N97 quad-core SoC (Alder Lake-N). With support for up to 16GB of DDR4 SO-DIMM memory, it ensures robust performance for various applications. The eBOX100A is engineered to operate reliably in extreme temperatures, ranging from -20°C to +60°C, making it suitable for challenging environments.

Designed with flexibility in mind, this compact system offers two or four 2.5GbE ports for high-speed networking. It includes four USB ports with power on/off capabilities and two COM ports for diverse connectivity options. For enhanced visual output, the eBOX100A supports both HDMI (FHD) and DisplayPort++ for dual-view displays.

The front-access I/O design simplifies installation and maintenance, ensuring seamless integration into your setup. The Axiomtek eBOX100A is an ideal solution for demanding industrial applications, delivering high performance, reliability, and ease of use.

Download

Datasheet

User Manual

More Information

Brand

Axiomtek

Specifications

CPU	Intel® processor N97 (Alder Lake-N) (up to 3.6 GHz, 12W) Intel® Core™ i3-N305 (Alder Lake-N) (up to 3.8 GHz, 15W) Intel Atom® x7211E (Alder Lake-N) by request
Chipset	SoC integrated
System Memory	1 x 262-pin DDR5-4800 SO-DIMM, up to 16GB
BIOS	AMI
COM	2 x RS-232/422/485 with autoflow
USB	2 x USB 3.2 Gen1 2 x USB 2.0
Ethernet/PoE	2 x 2.5GbE LAN or 4 x 2.5GbE LAN (Intel® I226-V) Two 2.5GbE version: Supports 1 PCIe Mini Card and 1 M.2 Key E Four 2.5GbE version: Supports only 1 PCIe Mini Card
Display	1 x HDMI (FHD) 1 x DisplayPort++ 1.4a
Digital I/O	N/A
Audio	N/A
Storage	1 x 2.5" SATA HDD/SSD (up to 15 mm height)
Expansion	1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM signal) 1 x M.2 Key E 2230 socket for Wi-Fi 6E (USB 2.0 + PCIe signal), supporting two 2.5GbE version only 1 x Internal SIM slot for PCIe Mini Card slot
Others	TPM 2.0 2 x Antenna opening 1 x Reset switch 1 x Power button 1 x Phoenix-type VDC power input connector 1 x Remote switch connector
Power	9 to 36 VDC with ignition Inrush current: 1.39 to 6.67 A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +60°C (-40°F to +140°F) (with W.T. DRAM & SSD)
Relative Humidity	10% to 90%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)	155 x 110 x 60 mm (6.1" x 4.33" x 2.36")
Weight (net/gross)	1.1 kg (2.4 lb)/1.5 kg (3.3 lb)
Certifications	CE, FCC Class A, UKCA, UL 62368-1, and IEC 60945
EOS Support	Win 10 IoT, Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit VESA mount kit

Ordering Information

eBOX100A-N97-2E (P/N-E36K100A00)
Fanless embedded system with Intel® processor N97 quad-core SoC (Alder Lake-N), 2 LAN, HDMI, DisplayPort++, 2 COM, 4 USB, and 9 to 36 VDC
eBOX100A-N97-4E (P/N-E36K100A01)
Fanless embedded system with Intel® processor N97 quad-core SoC (Alder Lake-N), 4 LAN, HDMI, DisplayPort++, 2 COM, 4 USB, and 9 to 36 VDC
