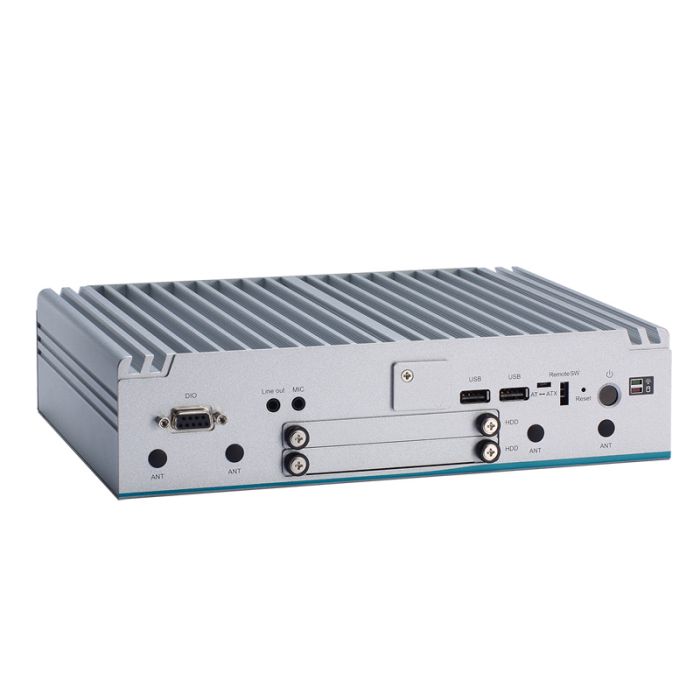

eBOX630A Fanless Embedded System with 11th Gen Core

In stock

SKU

eBOX630A-11U

Brand: Axiomtek

Fanless Embedded System with 11th Gen Intel Core i7/i5/i3 or Celeron Processor, 2 HDMI, 1 DisplayPort, 3 LANs, 6 USB, 4 COM, and 9 to 48 VDC

Key Features:

11th gen Intel Core i7/i5/i3 or Celeron Quad-core ULT processor (Tiger Lake UP3)
Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
Supports 3x 2.5 GbE, 6 USB, 4 COM
-40°C to +60°C wide operating temperatures
9 to 48 VDC wide range DC power input
Supports triple displays with 2 HDMI, and 1 DisplayPort++
Intel Iris Xe integrated graphics (i7 & i5 SKUs)
Trusted platform module (TPM 2.0 onboard)

Enquire Now

Enquire about this product:

Name

Phone

Message

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

The eBOX630A is a fanless embedded system powered by an 11th generation Intel Core i7/i5/i3 or Celeron processor. The IP40-rated heavy-duty aluminium extrusion and steel case of the rugged embedded system. With an operating temperature range of -40°C to +60°C and vibration endurance of up to 3G, the industrial-grade eBOX630A can operate in harsh environments. Because of the 9 to 48 VDC power input, it can be used to improve AI inference capabilities in factory automation. The feature-rich, highly customizable, and simple-to-deploy eBOX630A is an ideal solution for a wide range of AIoT applications such as edge computing, machine vision, deep learning, and robotic control.

The dependable eBOX630A has dual 260-pin DDR4-3200 SO-DIMM slots that can hold up to 64GB of system memory. It has two 2.5" SATA HDD/SSD drive bays for large amounts of storage. It also includes a full-size PCI Express Mini Card slot and a SIM card slot for wireless communication. The eBOX630A has onboard TPM 2.0 to emphasise the foundation for a hardware root of trust. The eBOX630A is compatible with both Windows 10 IoT and Linux operating systems.

Key Features:

11th gen Intel Core i7/i5/i3 or Celeron Quad-core ULT processor (Tiger Lake UP3)
Dual-channel DDR4-3200 SO-DIMM for up to 64GB of memory
Supports 3x 2.5 GbE, 6 USB, 4 COM
-40°C to +60°C wide operating temperatures
9 to 48 VDC wide range DC power input
Supports triple displays with 2 HDMI, and 1 DisplayPort++
Intel Iris Xe integrated graphics (i7 & i5 SKUs)
Trusted platform module (TPM 2.0 onboard)

Specifications

CPU	Intel Core i7-1185G7E/i5-1145G7E/i3-1115G4E or Celeron® 6305E (TDP up to 15W)
Chipset	SoC integrated
System Memory	2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB
BIOS	AMI
COM	2 x RS-232/422/485 2 x RS-232
USB	2 x USB 2.0 4 x USB 3.2 Gen1
Ethernet/PoE	2 x 10/100/2500 Mbps Ethernet (Intel® i226-IT) 1 x 10/100/2500 Mbps Ethernet (Intel® i226-LM)
Display	2 x HDMI 1.4b 1 x DisplayPort++ 1.4a
Digital I/O	1 x 8-CH TTL DIO via DB9 female (4-in/4-out)
Audio	N/A
Storage	2 x 2.5” swappable SSD/HDD drive bay (max. up 9.5 mm height; RAID 0,1 supported) 1 x M.2 Key M 2280 (PCIe x 4 only)
Expansion	1 x Full-size PCI Express Mini Card (USB + PCIe signal) 1 x M.2 Key E 2230 (for WiFi) 1 x Front-access SIM slot
Others	TPM 2.0 1 x ATX power switch 1 x Remote power switch 1 x Reset switch 1 x AT/ATX quick switch 4 x Antenna opening
Power	9 to 48 VDC 1 x Phoenix-type VDC power input connector
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-40°C to +60°C (-40°F to +140°F) with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 15W)
Relative Humidity	10% - 95%, non-condensing
Vibration	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock	IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)	250 x 170 x 60 mm (9.84” x 6.69” x 2.36”)
Weight (net/gross)	2.4 kg (5.29 lb)/3.2 kg (7.0 lb)
Certifications	CE, FCC Class A , UKCA
EOS Support	Win 10 IoT, Win 11 IoT, Linux
Software Support	N/A
Mounting	Wall mount kit DIN-rail kit
