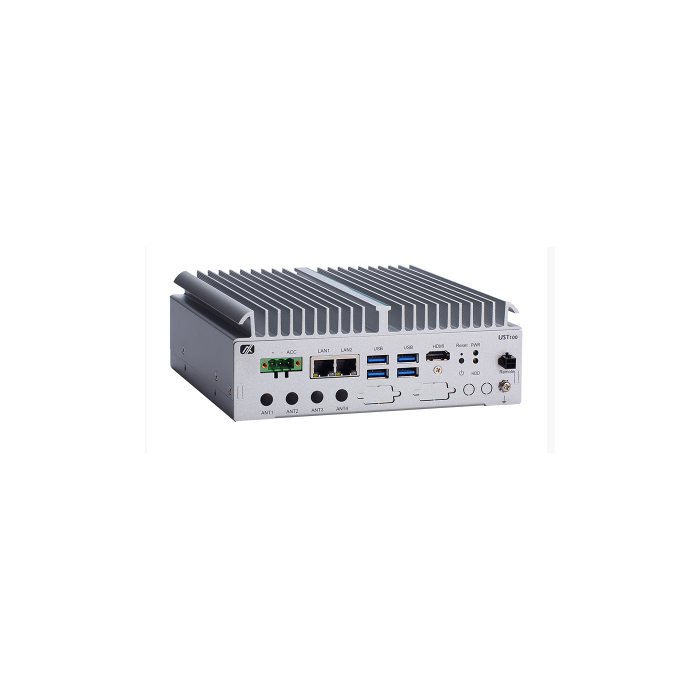

UST100-504-FL Fanless Embedded PC 7th/6th Gen

End of Life

SKU: UST100-504-FL-ix-TDC

Fanless Embedded System with 7th/6th Gen Intel® Core™, Pentium® and Celeron® Processor for Video Analytics in Vehicle PC Market

Datasheet

Description

Fanless Embedded System with 7th/6th Gen Intel® Core™, Pentium® and Celeron® Processor for Video Analytics in Vehicle PC Market

· CE, FCC certified; ISO 7637-2 compliant

· LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 35W) with Intel® H110

· Fanless and Wide operating temperatures from -40°C to +60°C

· 12/24 VDC power input, with power management (ACC ignition)

· Single-sided I/O design for easy maintenance

· Expansion capability for three PCI Express Mini Card slot and two internal SIM card slot

Download

Datasheet

More Information

Brand

Axiomtek

Specifications

CPU	LGA1151 7th gen Intel® Intel® Core™ & Intel® Pentium® processors, TDP: 35W LGA1151 6th gen Intel® Intel® Core™ & Intel® Pentium® processors, TDP: 35W
Chipset	Intel® H110
System Memory	1 x DDR4-1866/2133/2400 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x DB9 Serial console or RS-232/422/485 (optional)
USB	4 x USB 3.0
PoE	N/A
Ethernet	2 x RJ-45 10/100/1000 Mbps (Intel® i211-IT)
Display	1 x HDMI
CANbus	N/A
Digital I/O	1 x DB9 4-in/4-out programmable DIO (optional)
Audio	1 x Mic-in, 1 x Line-out (optional)
Storage	1 x Internal 2.5” SATA drive (9.5 mm height) 1 x Full-sized mSATA (occupied 1 x PCI Express Mini Card slot) 1 x half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion	1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket) 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe with SIM socket) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB)
Others	1 x Reset button 1 x Power switch 1 x Remote switch 4 x Antenna opening
Power Supply	1 x Terminal block, 12/24 VDC with ACC ignition
Power Consumption	12V, 5.06A; 24V,2.72A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature	-40°C to +60°C (-40°F to +140°F) with W.T. peripheral
Relative Humidity	0% to 95%, non-condensing
Vibration	3 Grms w/ SSD, 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VL Category 4 compliant
Shock	N/A
Dimensions (W x D x H)	185 x 150 x 65.15 mm (7.09” x 5.91” x 2.56”)
Weight (net/gross)	1.71 kg (3.77 lb)/2.19 kg (4.83 lb)
Certifications	CE (Class A), FCC (Class A) certified ISO 7637-2 compliant
EOS	Windows® 10 64-bit, Windows® 7 64-bit, Ubuntu 18.04
Software Support	AMS.AXView 2.0
