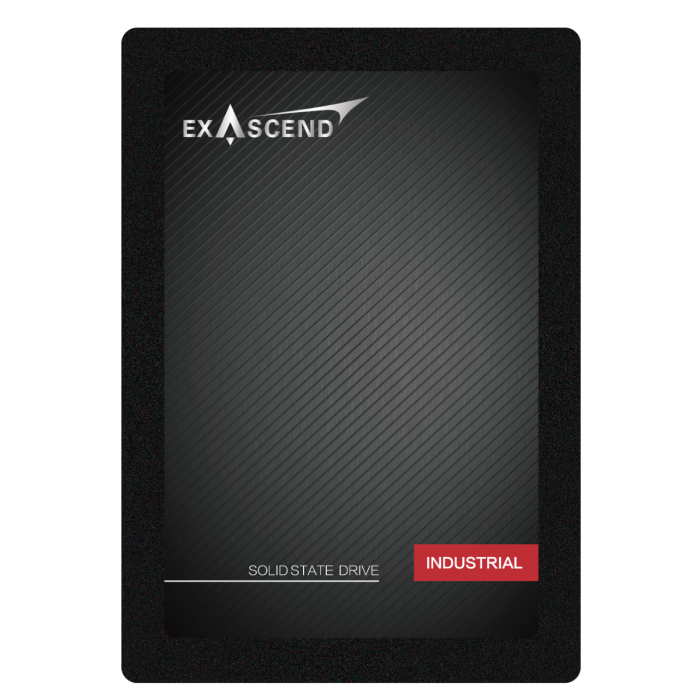

Buy Exascend SI4 2.5" SSD Up to 7TB

SKU: EXSI3A*****B

SATA-III, 6.0Gb/s 2.5" SSD Drives 240GB to 7.68TB

Key Features:

3D TLC/pSLC NAND Flash for Tailored DWPD Requirements
ISO 16750 certified for vibration resistance, with conformal coating
Versatile Temperature Range: (0°C to 70°C) and wide (-40°C to +85°C)
Hardware-Based Power Loss Protection (PLP)

Datasheet

Description

The SI3 series delivers exceptional performance with high capacities of up to 7.68TB, especially in M.2 2280 and 2.5-inch form factors. Specifically designed for industrial applications, it excels in extreme temperatures and challenging environments, ensuring reliability in demanding settings.

Download

Datasheet

More Information

Brand

Exascend

Specifications

Edition	SI3 Series
Interface	SATA-III, 6.0Gbps
Flash type	3D TLC
Form factor	2.5-inch	M.2 (2280)	mSATA
Capacity	240 GB to 7.68 TB	240 GB to 7.68 TB	120 GB to 960 GB
Input voltage	5V ±5%	3.3V ±5%	3.3V ±5%
Power consumption	Active <5W; Idle <0.9W
Sequential read/write up to	550/535 MB/s
4K random read/write up to	98,000/20,000 IOPS
Operational temperature	-40°C to 85°C
Storage temperature	-50°C to 95°C
Humidity (non-condensing)	5–95% (Operating)
Vibration	10 G (peak, 10–2000 Hz)
Shock	Operating: 50 G (11 ms duration, half sine wave) Non-operating: 1500 G (0.5 ms duration, half sine wave)
Features	TCG Opal 2.0. AES-256. Advanced LDPC error correction. Firmware & hardware power loss protection.	TCG Opal 2.0. AES-256. Advanced LDPC error correction. Firmware power loss protection.
TBW (JESD219 enterprise) up to	4,800 TB	4,800 TB	600 TB
DWPD (JESD219 enterprise)	0.6 @ 3 years
MTBF	2,000,000 hours
Warranty	3 years

Ordering Information

Model Name	Form factor	Capacity (GB)	Max. seq. read (MB/s)	Max. seq. write (MB/s)	TBW (max.)
EXSI3A240GB	2.5"	240	550	300	150
EXSI3A480GB	2.5"	480	550	535	300
EXSI3A960GB	2.5"	960	550	535	600
EXSI3A1920GB	2.5"	1920	550	535	1200
EXSI3A3840GB	2.5"	3840	550	535	2400
EXSI3A7680GB	2.5"	7680	550	535	4800
