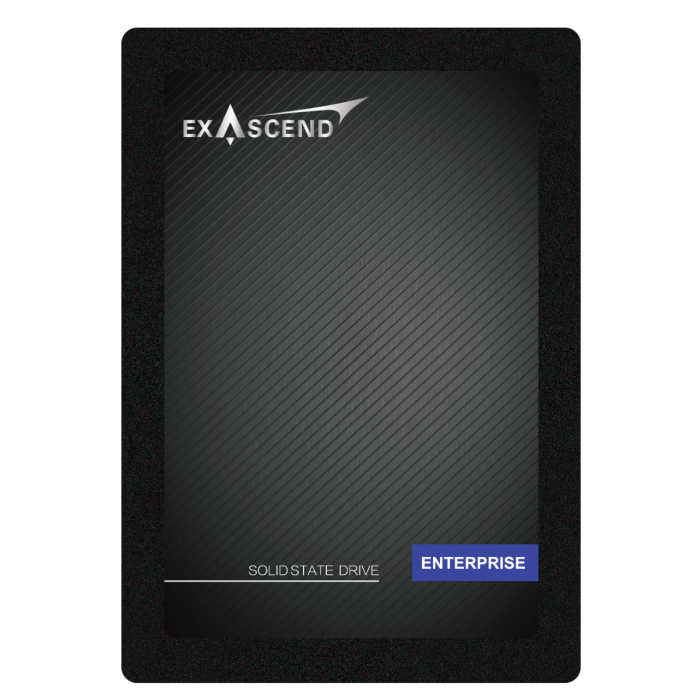

SE4 2.5" Enterprise SSD with SATA-III Interface up to 15.36TB
SATA-III, 6.0Gb/s 2.5" SSD Drives 480GB to 15.36TB
Key Features:
- State-of-the-art 176-layer NAND flash
- High I/O and throughput performance
- Consistent I/O latency and high QoS
- Optional hardware power loss protection
Description
The SE4 series is an advanced SATA-III product line engineered with 176-layer 3D NAND storage technology innovation. In a wide variety of configurations, the SE4 can satisfy any enterprise application’s storage demands.
130/755 μs read/write latency and 97,000/50,000 random 4K read/write IOPS enable Exascend enterprise SATA SSDs to deliver uncompromising quality of service (QoS) and seamless, uninterrupted data operations under the most intensive workloads
Download
More Information
| Brand | Exascend | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
| Model Name | Form factor | Flash type | Capacity (GB) | Max. seq. read (MB/s) | Max. seq. write (MB/s) | DWPD (JESD219 enterprise workload) |
|---|---|---|---|---|---|---|
| EXSE4A960GB-0P | 2.5" | 3D TLC | 960 | 545 | 520 | 1 |
| EXSE4A960GB | 2.5" | 3D TLC | 960 | 545 | 520 | 0.6 |
| EXSE4A960GB-0X | 2.5" | pSLC | 960 | 555 | 535 | 5 |
| EXSE4A7680GB-0P | 2.5" | 3D TLC | 7680 | 550 | 525 | 1 |
| EXSE4A7680GB | 2.5" | 3D TLC | 7680 | 550 | 530 | 0.6 |
| EXSE4A480GB-0P | 2.5" | 3D TLC | 480 | 545 | 520 | 1 |
| EXSE4A480GB | 2.5" | 3D TLC | 480 | 545 | 515 | 0.6 |
| EXSE4A480GB-0X | 2.5" | pSLC | 480 | 550 | 520 | 5 |
| EXSE4A3840GB-0P | 2.5" | 3D TLC | 3840 | 545 | 525 | 1 |
| EXSE4A3840GB | 2.5" | 3D TLC | 3840 | 545 | 520 | 0.6 |
| EXSE4A3840GB-0X | 2.5" | pSLC | 3840 | 545 | 535 | 5 |
| EXSE4A240GB-0P | 2.5" | 3D TLC | 240 | 550 | 505 | 1 |
| EXSE4A240GB | 2.5" | 3D TLC | 240 | 545 | 415 | 0.6 |
| EXSE4A240GB-0X | 2.5" | pSLC | 240 | 560 | 535 | 5 |
| EXSE4A1920GB-0P | 2.5" | 3D TLC | 1920 | 545 | 520 | 1 |
| EXSE4A1920GB | 2.5" | 3D TLC | 1920 | 545 | 520 | 0.6 |
| EXSE4A1920GB-0X | 2.5" | pSLC | 1920 | 560 | 535 | 5 |
| EXSE4A0153TB | 2.5" | 3D TLC | 15360 | 555 | 450 | 0.6 |
