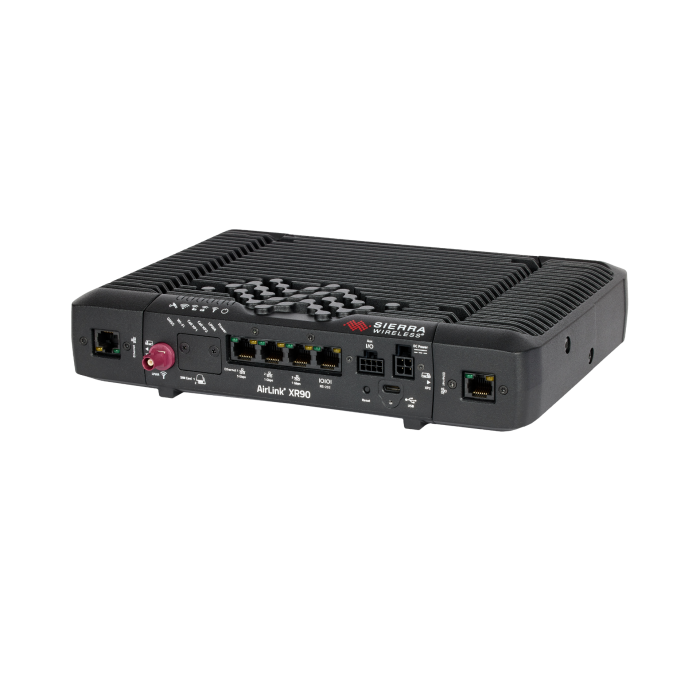

AirLink® XR90 5G High-Performance Multi-Network Vehicle Router

In stock
SKU:
XR90

5G High-Performance Multi-Network Vehicle Router for Transit, Rail and First Responder Fleets.


Downloads:

pdf
Lock You have to Login or Register to download this file
Enquire Now
Enquire about this product
We build to order

Cellular Connectivity Supported
5G
Up to 4.14 Gbps DL/660 Mbps UL

4G LTE-A Pro CAT20

Up to 2 Gbps DL/210 Mbps UL

Optional dual 5G cellular

LPWA exclusively for ALMS Out-of-Band Management

Navigation
All
Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN
Wi-Fi
All

Dual independent 4x4 Wi-Fi 6 AP/STA up to 2.4Gbps

Support for 128 clients. WPA2/3 Enterprise. High output power 21 dBm (per chain)

Host Interfaces
All

All WAN/LAN interfaces use Sierra Cognitive Wireless and Data Path Acceleration Architecture

Single 5G: 4x RJ-45 Ethernet ports (1x 5Gbps, 3x 1Gbps)

Dual 5G: 5x RJ-45 Ethernet ports (1x 5Gbps, 4x 1Gbps)

Dual SIM Slots. Dual RS-232 serial on RJ-45

Aux Port (GPIO/CAN). USB 3.2 type-C port. Bluetooth 5.1 (future support)

Security
All

All Sierra Wireless security features including secure boot and secure firmware update.

AAA: 802.1x/Radius authentication

Stateful firewall with port forwarding and DMZ

WPA2/3 Personal/Enterprise WLAN Encryption and FIPS 140-2

Construction
All
Aluminum die cast housing rated to IP-64 and Mil-STD 810G
Industry Certifications
All

Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950

Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637-2, SAE

J1455 (Shock & Vibration)

Environmental: RoHS2, REACH, WEEE

Rail Usage: EN50155 (Rolling Stock)

Dimensions
All

Single 5G: 220mm x 220mm x 53mm (8.66in x 8.66in x 2.08in)

Dual 5G: 268mm x 220mm x 53mm (10.55in x 8.66in x 2.08in)
