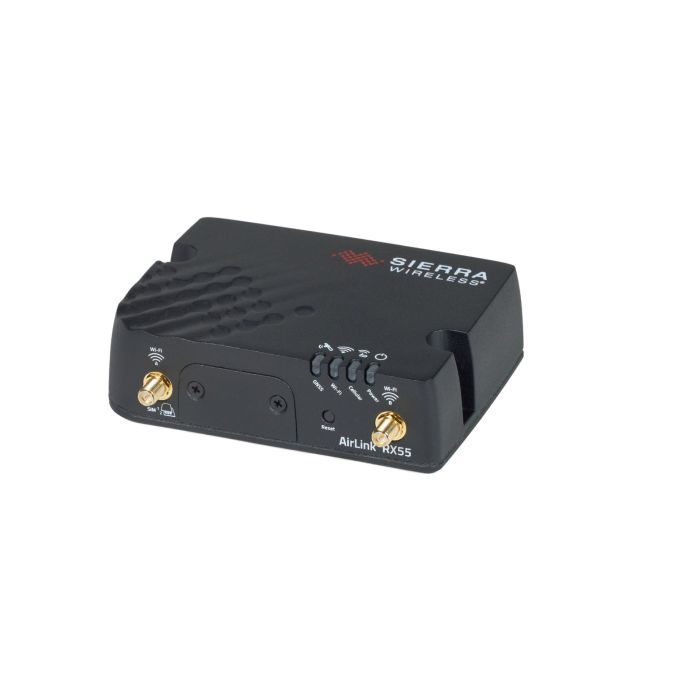

RX55 AirLink Industrial LTE IoT Router (WiFi Optional)
Industrial IoT Router 4G LTE-A Dual 1×1 WiFi 5 Single/Dual Serial IP64 Rated
Enquire Now
Enquire about this product:
The AirLink RX55 is built tough for use in harsh environments and has extremely low power consumption. The RX55 offers intelligence safely at the edge for mission-critical applications on both public and private networks thanks to powerful networking and industry-standard container support features.
Key Features:
- 4G LTE-A
- 1 Gigabit Ethernet
- GNSS
- AirLinkOS with AirLink Complete
- Dual 1×1 WiFi 5
- Single/Dual Serial
- IP64 Rated
| NAM | EMEA-APAC | |
| Cellular | ||
| Technology | 4G LTE-A | |
| Cellular | 4G, 3G | |
| Peak Downlink (Theoretical) |
300 Mbps | |
| Peak Uplink (Theoretical) |
150 Mbps | |
| LTE Category | Cat-7 | |
| Region | NAM | EMEA, APAC |
| Radio | EM7411 | EM7421 |
| MIMO | 2x2 | |
| RF Connectors | SMA | |
| SIM | Dual SIM (Mini-2FF) | |
| Frequency Bands | ||
| 4G LTE Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71 |
B1, B3, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43 |
| 3G HSPA+ Bands | B2, B4, B5 | B1, B5, B8 |
| Wireless Certification | ||
| Regulatory | FCC, IC, PTCRB | GCF, CE, RED, RCM |
| Carrier | Verizon, AT&T, T-Mobile Planned: Bell, Telus, Rogers |
Planned: Telstra |
| Public Safety | FirstNet® | |
| Part Numbers | 1104927 Base 1104928 Wi-Fi 1104934 Wi-Fi Plus |
1104929 Base 1104930 Wi-Fi 1104933 Wi-Fi Plus |
| Wi-Fi (Optional) | ||
| Wi-Fi Standard | Wi-Fi 5 802.11ac | |
| Access Point | Dual | |
| Client (Depot/WAN) | Yes | |
| Client & AP | Yes | |
| Peak Throughput (Theoretical) | 433 Mbps | |
| MIMO | Dual 1x1 | |
| Security | WPA2 Enterprise | |
| Clients | 10 per radio | |
| SSID | 1 per radio | |
| Output Power | 16 dBm | |
| Frequency | 2.4/5GHz | |
| RF Connectors | SMA (Reverse Polarity) | |
| Environmental | ||
| Operating Temperature |
-40°C to +70°C / -40°F to +158°F -30°C to +70°C / -22°F to +158°F (Wi-Fi variant) |
|
| Storage Temperature | -40°C to +85°C / -40°F to +185°F | |
| Humidity | 95% RH @ 60°C | |
| Military Specification | MIL-STD-810G (shock, vibration, thermal shock, humidity) | |
| IP Rating | IP64 | |
| Industry Certifications | ||
| Safety | IECEE Certification Bodies Scheme (CB Scheme) | |
| Vehicle Usage | E-Mark (UN ECE Regulation 10.04), ISO7637-2, SAE J1455 (Shock, Vibration, Electrical) |
|
| Environmental Directives | RoHS2, REACH, WEEE, Prop 65 | |
| Hazardous Environments | Class 1 Div 2 – Ambient temperatures of -30°C to +60°C IECEx & ATEX |
|
| Rail Usage | EN50155 (Pending) | |
| Power | ||
| Input Voltage | 7 to 36 VDC | |
| Power Consumption | LTE Idle Power: 900mW (75 mA @ 12VDC) Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer |
|
| Power Modes | Low voltage disconnect to prevent battery drain Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump Ignition Sense with time delay shutdown Configurable features and ports to optimize power consumption |
|
| Security | ||
| AAA | 802.1x /Radius authentication with Wi-Fi and Ethernet | |
| Firewall | Stateful firewall with port forwarding, DMZ | |
| WLAN Encryption | WPA2/WPA3 Personal/Enterprise | |
| Firmware Update | Secure Firmware Update | |
| Network and Routing | ||
| Sierra Cognitive Wireless IPv4 and IPv6 Routing Network Address Translation (NAT) Port Forwarding DHCP Server IP Passthrough LAN Segmentation IPv4 Passthrough and IPv6 Prefix Extension WAN/LAN Connection Policy Management Policy-Based Routing Configurable MTU size Static Routing WAN Ethernet |
||
| QoS | Application/Traffic Priority Queuing | |
| WAN Monitors | Connection Failure Recovery | |
| VPN | ||
| Integrated with ACM VPN Server IPsec protocol with IKEv1/IKEv2 FIPS 140-2 Level 1 compliant |
||
| Encryption | AES128/AES192/AES256 | |
| Hashing | SHA256/SHA384/SHA512 | |
| Key Exchange | DHGroup14/15/16/17/18/19/20/21 | |
| LAN to LAN and Host to LAN Up to 10 concurrent tunnels per link MOBIKE protocol IP compression Full/Split Tunnel Dead Peer Detection (DPD) |
||
| Router Management Interfaces | ||
| ALMS Local web user interface REST API (Beta) |
||
| Edge Computing | ||
| Support for Edge Compute Containerized Applications (Beta) |
||
| RAM¹,² | 50 MB (Base & Wi-Fi) 200 MB (Wi-Fi Plus) |
|
| Storage (Flash)¹ | 200 MB (Base & Wi-Fi) 2.8 GB (Wi-Fi Plus) |
|
| CPU | Dual Core ARMv7 32-bit | |
| Airlink Complete | ||
| Services | AirLink Complete | |
| Support | 24/7 with current AirLink Complete subscription | |
| Warranty | 1-year standard warranty with up to 5 years extended warranty with current AirLink Complete subscription |
|
| Device Management | ALMS with current AirLink Complete subscription | |
| Software Updates | Unrestricted critical firmware updates | |
| Accessories | ||
| In The Box | RX55, DC Power Cable and Quick Start Guide | |
| Other Accessories (sold separately) |
2000579 AC Adapter, 12VDC 6000659 DIN Rail Bracket 6001238 Dual Serial Y-cable 6001479 Serial CAN Y-cable For Antenna options please enquire |
|
| Dimensions | ||
| Size | 119 mm x 33 mm x 85 mm (102 mm including wi-fi connectors) 4.69 in x 1.34 in x 3.35 in (3.70 in including connectors) |
|
| Weight | 320 g | |
