NISE-106-N3710 Pentium N3710 Quad Core Fanless System

In stock
Brand: Nexcom

Intel® Celeron® Processor N3160 Quad Core Fanless System

Enquire Now
Enquire about this product:

The NISE 106 is a highly integrated fanless embedded PC with optional Mini-PCIe module and 4 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications.



·         Onboard Intel® Celeron® Processor N3160 Quad Core, 1.6GHz

·         3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port

·         2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE

·         4 x USB 3.0

·         2 x DB9 for RS232/422/485, 2 x DB9 for RS232

·         1 x optional interface for optional Wi-Fi/3.5G/LTE modules

·         Support -5°C~55°C extended operating temperature

·         Support 9~30V DC input


CPU Support Onboard Intel® Celeron® Quad Core Processor N3160, 2M Cache, 1.6GHz
Main Memory 1 x DDR3L SO-DIMM socket, support DDR3L 1600 8GB RAM max., un-buffered and non-ECC
Display Option 1 x HDMI + 1 x DVI-D + 1 x DP display port
I/O Interface-Front ATX power on/off switch1 x Power status/1 x HDD access/1 x battery low/1 x programing/4 x Tx/Rx LEDs2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE1 x HDMI + 1x DVI-D display output4 x USB 3.0 (900mA per each)1 x 3-pin DC input, support +9 to 30VDC input

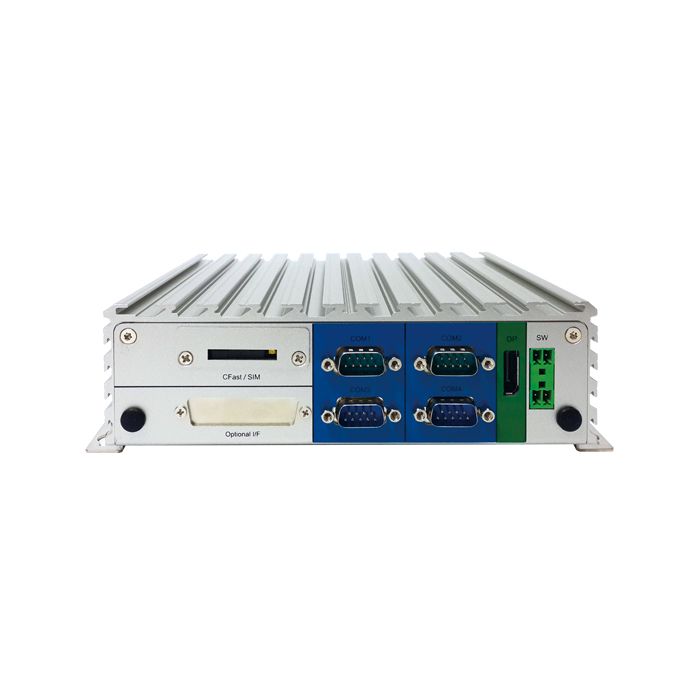

I/O Interface - Rear 1 x Display Port1 x SIM Card holder1 x external CFast socket2 x DB9 for RS232/422/485 with auto flow control (COM1 and COM2)2 x DB9 for RS232 (COM3 and COM4)2 x Antenna holes for optional Wi-Fi/3.5G antenna1 x remote power on/off switch1 x optional I/F for optional Mini-PCIe Wi-Fi/3.5G/LTE/NEXCOM's automation module output
I/O Interface - Internal 4 x GPI and 4 x GPO (5V, TTL type)
Storage Device 1 x 2.5" HDD (SATA3.0)
Expansion Slot 1 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G modules
Power Requirement Power input: +9 to 30 Vdc1 x optional 24V, 60W power adapter
Dimensions 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction Aluminum chassis with fanless design
Environment Operating Temperature:
Ambient with air flow: -5°C to 55°C
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -30°C to 85°CRelative Humidity: 10% to 95% (non-condensing)Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27
Vibration protection w/HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Vibration protection w/CFast & SSD condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications CEFCC Class A
Support OS Windows 7, 64-bit onlyWindows 8.1 , 64-bit onlyWindows Embedded Standard 7 , 32-bit and 64-bitWindows 10 IoT Enterprise, 64-bit onlyLinux Kernel version 4.4
