RG255C-GL 5G RedCap Sub-6 GHz M.2 Module

SKU: RG255CGL00AB-4M2-M20

5G RedCap Sub-6 GHz M.2 Module

Key Features:

  • M.2 form factor
  • Worldwide 5G/LTE coverage
  • 5G SA mode with features of 5G LAN/URLLC/Slicing
  • Multi-constellation GNSS receiver available (Optional)
  • Feature refinements: DFOTA and VoNR/VoLTE (Optional)
  • PCIe 2.0 interface for Wi-Fi/Bluetooth
Datasheet

Description

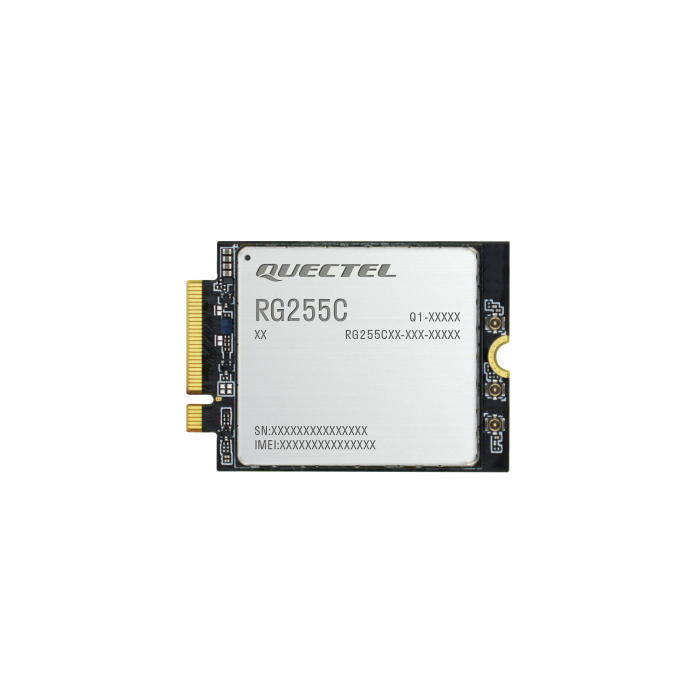

Quectel RG255C-GL M.2 is a 5G Sub-6 GHz M.2 module. Adopting the 3GPP Rel-17 RedCap technology, with 5G LAN/ URLLC/ Slicing features, the module supports a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink. The module supports LTE Cat 4 and 5G Sub-6 SA mode and is backward compatible with Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design.

RG255C-GL M.2 module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo & NavlC). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, PCM, etc.), and abundant functionalities (USB drivers for Windows 8.1/10/11, Linux, and Android) extend the module's applicability to a wide range of RedCap applications.

Download

Datasheet

More Information

Brand Quectel
Specifications

Specification

Details

Model

5G RedCap Sub-6 RG255C-GL M.2

Region/Operator

Global

Dimensions (mm)

30 × 42 × 3.25

Weight (g)

8.4

Temperature Range

Operating: -30 °C to +75 °C Extended: -40 °C to +85 °C

Frequency Bands



5G NR

3GPP Rel-17 RedCap SA operation, Sub-6 GHz



SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79

DL MIMO (5G NR)

2 × 2 MIMO: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78/ 79

LTE-FDD

B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 66/ 70/ 71

LTE-TDD

B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48

DL MIMO (LTE)

2 × 2 MIMO: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 66/ 70/ 71

GNSS (Optional)

GPS/ GLONASS/ BDS/ Galileo/ NavIC

Certifications

Regulatory: CE*/ RCM*/ FCC*/ IC* Others: RoHS

Carrier

TBD

Data Rates (Max.)

5G SA Sub-6: 223 Mbps (DL)/ 123 Mbps (UL) LTE: 195 Mbps (DL)/ 105 Mbps (UL)

Interfaces



USIM

×2

USB 2.0

×1

PCIe 2.0

×1

RESET#

×1

PCM

×1

Antennas

Cellular: ×2; GNSS: ×1

Voice (Optional)

Digital Audio and VoNR/ VoLTE

Enhanced Features

eSIM: ○ DTMF: ● DFOTA: ● (U)SIM Card Detection: ○

Drivers



USB Serial Driver

Windows 8.1/ 10/ 11; Linux 2.6–6.7; Android 4.x–13.x

RIL Driver

Android 4.x–13.x

PCIe MHI Driver

Linux 3.10–6.7

USB MBIM Driver

Windows 10/ 11; Linux 3.18–6.7

USB RNDIS Driver

Windows 8.1/ 10/ 11; Linux 2.6–6.7

USB GobiNet Driver

Linux 2.6–6.7

USB QMI_WWAN Driver

Linux 3.4–6.7

Electrical Features



Supply Voltage Range

3.135–4.4 V, typ. 3.7 V

Power Consumption

Typical 3 mA @ Sleep Typical 26 mA @ Idle

Notes

① Theoretical only; actual values depend on network conditions.



* Under development/In progress.



● Supported.



○ Optional.



TBD: To be determined.
