GPCL-LA4GN 3MP POE Global Shutter LPR Camera

SKU: GPAL-0S3G

3MP POE Wide View Global Shutter LRP/ANPR Camera

Key Features:

1/3.1” 3.2MP Global Shutter CMOS
Max. 60FPS@3M (1920x1440), 60FPS@2M (1920x1080)
1.2TOPs NPU Built-In
Individual shutter speed and AEW settings for Day mode and Night mode
Quadruple Streaming (H.265, H.264, M-JPEG, JPEG)
ONVIF (Profile S) standard
IP68-rated, nitrogen-filled
855nm 4 Power IR LED
Compact size

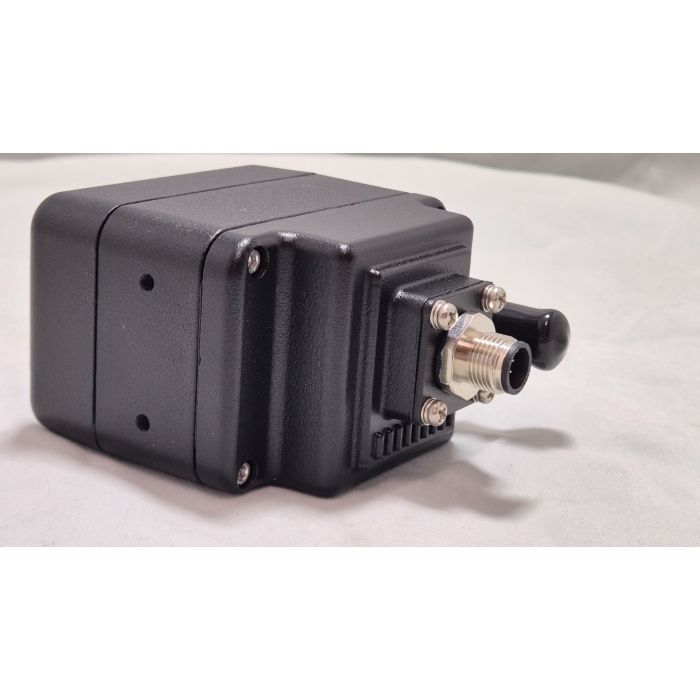

M12 A-Code 8PIN Male Connector

Datasheet

Description

The GPCL-xxxS3G POE Fixed Single Lens LPR Global Shutter camera is suitable for law enforcement, parking and other authorities to track and capture license plates.
Rated IP68 and nitrogen-filled to operate and withstand the harshest conditions the high power LED detect virtually all kinds of reflective and non-reflective license plates.
IP-based using OnVif std and Power-over Ethernet (POE) interface allows a single wire connection for both data Transfer and power transmission. The
Global Shutter allows the capture the number plate without distortion while high speed. Optional strobe out can synchronize with the external LED to support a range of applications for the LPR camera.

Available in 4mm, 6mm, 8mm, 12mm, 16mm, 24mm lens configurations.

Download

CGI Commands V1.5

Compare GPI Camera LPR Range vs LENS Size

Datasheet

Default settings to use

Drawing

M12 A coded Main cable-GPCL_GPAL

Multi Shutter Mode

Quick Start Guide

More Information

Brand	GPI Korea
Specifications	3MP Global Shutter Sensor Fixed 4mm, 6mm, 8mm, 12mm, 16mm, 24mm Lens 4 x Power IR 855nm LED Quad Stream - H.265, H.264, M-JPEG, JPEG Max frame 30fps RTP/RTSP(Uni/Multicast) Day & Night Support POE 10/100BaseT Ethernet Power Consumption Max 4.8W Operating Temp -10℃~+70℃ IR LED Strobe-Out A5GN model IP 68 rated, Nitrogen filled
