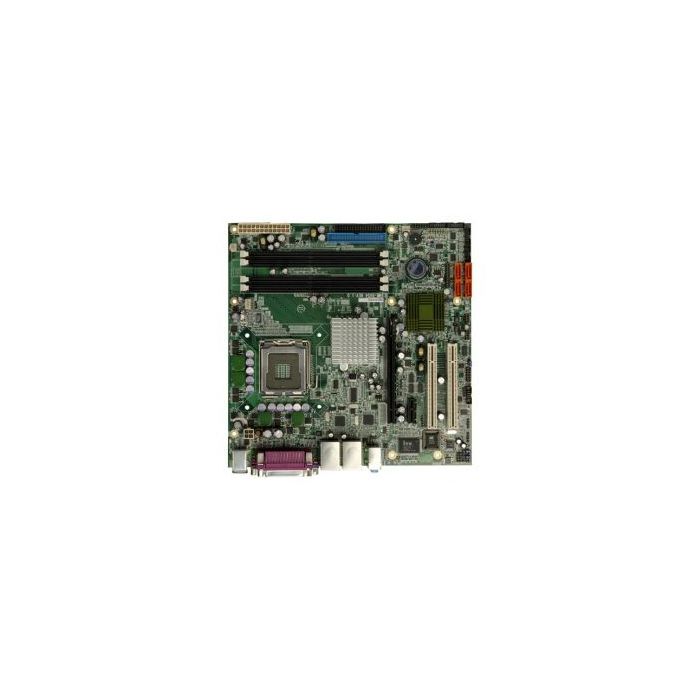

micro-ATX Motherboard with Intel Core 2 Duo, Pentium® 4/ Pentium® D/ Celeron® D FSB 533/800/1066MHz CPU, VGA, Dual PCIe GbE, SATA II, USB 2.0, 6 COM, & Audio

Datasheet

Description

micro-ATX Motherboard with Intel Core 2 Duo, Pentium® 4/ Pentium® D/ Celeron® D FSB 533/800/1066MHz CPU, VGA, Dual PCIe GbE, SATA II, USB 2.0, 6 COM, & Audio

· Intel® Core 2 Duo, Pentium® 4/ Pentium® D/ Celeron® D CPU support up to FSB 533/800/1066MHz

· VGA integrated in Intel® 945G

· Dual channel DDRII 533/667MHz support up to 4GB

· FDD, LPT, 4 x SATA II, 8 x USB 2.0 and 6 x COM

Download

Product Data Sheet

More Information

Brand	IEI Integration Corp.
Specifications	CPU LGA 775 Intel® Core 2 Duo, Pentium® 4/D/Celeron® D with 533/800/1066 MHz FSB System Chipset Intel® 945G + ICH7 BIOS AMI BIOS System Memory 4 x 240-pin Dual channel DDRII 533/667MHz up to 4GB Ethernet Dual PCIe Broadcom BCM5787 GbE chipsets with ASF2.0 support. I/O Interface 8 x USB 2.0 4 x SATA II 1 x LPT 1 x FDD 5 x RS-232, 1 x RS-232/422/485 1 x 20-pin LPC for TPM modules support 2 x PS/2 for KB/MS 1 x IDE Expansions 1 x PCIe x 16 (Support PCIe x1/16 PCIe add on cards) 1 x PCIe x 1 2 x PCI Digital I/O 8-bit digital I/O, 4-bit input/ 4-bit output IrDA 1x IrDA by pin header Super I/O ITE8712 Audio Realtek ALC655 with AC'97 codec Display VGA integrated in Intel® 945G Watchdog Timer Software programable 1-255 sec. by super I/O Power Supply ATX power supply Power Consumption [email protected],[email protected],[email protected],[email protected] (Pentium® 4 3.2GHZ,DDRII 533 512MB*4) Temperature Operation: 0°C ~ 60°C (32 ~ 140° F) Humidity Operation: 5% ~ 95% non-condensing Dimensions 244 mm x 244 mm Weight GW: 1200 g; NW: 680 g

Brand

IEI Integration Corp.

Specifications

CPU
LGA 775 Intel® Core 2 Duo, Pentium® 4/D/Celeron® D with 533/800/1066 MHz
FSB
System Chipset
Intel® 945G + ICH7
BIOS
AMI BIOS
System Memory
4 x 240-pin Dual channel DDRII 533/667MHz up to 4GB
Ethernet
Dual PCIe Broadcom BCM5787 GbE chipsets with ASF2.0 support.
I/O Interface
8 x USB 2.0
4 x SATA II
1 x LPT
1 x FDD
5 x RS-232, 1 x RS-232/422/485
1 x 20-pin LPC for TPM modules support
2 x PS/2 for KB/MS
1 x IDE
Expansions
1 x PCIe x 16 (Support PCIe x1/16 PCIe add on cards)
1 x PCIe x 1
2 x PCI
Digital I/O
8-bit digital I/O, 4-bit input/ 4-bit output
IrDA
1x IrDA by pin header
Super I/O
ITE8712
Audio
Realtek ALC655 with AC'97 codec
Display
VGA integrated in Intel® 945G
Watchdog Timer
Software programable 1-255 sec. by super I/O
Power Supply
ATX power supply
Power Consumption
[email protected],[email protected],[email protected],[email protected]
(Pentium® 4 3.2GHZ,DDRII 533 512MB*4)
Temperature
Operation: 0°C ~ 60°C (32 ~ 140° F)
Humidity
Operation: 5% ~ 95% non-condensing
Dimensions
244 mm x 244 mm
Weight
GW: 1200 g; NW: 680 g
