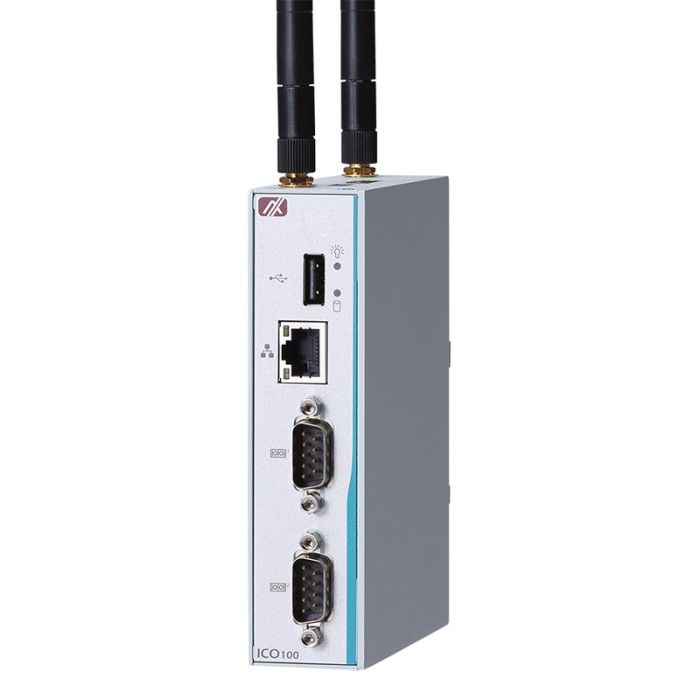

Shop ICO100-839 DIN-Rail Fanless Embedded PC

SKU: ICO100-839-N3350-2COM-DIO-DC

DIN-rail Fanless Embedded System with Intel Celeron Processor N3350, 2 COM, LAN, 2 USB, and DIO

Key Features:

Extreme cost-effective with fanless and cableless design
Intel Celeron processor N3350, reliable F1 stepping version CPU
2 COM, 2 USB, and GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -20°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS.AXView intelligent remote monitoring software for IIoT

Datasheet

Description

The ICO100-839 is a fanless DIN-rail embedded system that supports the low-power Intel Celeron processor N3350. This DIN-rail industrial IoT gateway has one DDR3L SO-DIMM slot and can support up to 8 GB of system memory. With an extended temperature range of -20°C to 70°C and anti-vibration up to 2G, its proven rugged construction ensures reliable operation in harsh environments. Furthermore, the 12V-24V DC power input with a lockable terminal block type connector is appropriate for industrial automation fields. Overvoltage and reverse protection reduces the possibility of critical data loss. The exceptional Intel® AtomTM-based ICO100-839 is ideal for industrial IoT applications such as smart factory automation and smart energy. The DIN-rail industrial IoT gateway has an excellent price/performance ratio and high quality.

Key Features:

Extreme cost-effective with fanless and cableless design
Intel Celeron processor N3350, reliable F1 stepping version CPU
2 COM, 2 USB, and GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -20°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS.AXView intelligent remote monitoring software for IIoT

Download

Datasheet

More Information

Brand

Axiomtek

Specifications

CPU	Intel Celeron N3350 2C @1.1 GHz, TDP: 6W
Chipset	SoC integrated
System Memory	1 x DDR3L-1866 SO-DIMM, up to 8GB
COM	2 x DB9 RS-232/422/485
USB	2 x USB 2.0
Ethernet	1 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT) Isolation voltage: 1.5 kV
PoE	N/A
CANbus	N/A
Analog Input	N/A
Digital I/O	1 x DB9 8-bit programmable DIO
Display	1 x VGA
Expansion	2 x Full-size Rev. 1.2 PCI Express Mini Card slot: • 1 x mSATA/PCIe/USB • 1 x USB/PCIe with SIM socket
Storage	1x mSATA (occupied 1 x PCI Express Mini Card slot)
Others	TPM 2.0 2 x Antenna opening
Power	1 x Terminal block, 12 to 24 VDC Power 12 to 24 VDC,1.15-0.62A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Extruded aluminum and heavy-duty steel, IP30
Operating Temperature	-20°C to +70°C (-4°F to +158°F) with W.T. peripheral
Relative Humidity	0% to 95%
Vibration	2 Gms with storage (5 to 500Hz, X/Y/Z direction; random operating)
Dimensions (W x D x H)	31 x 100 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)	0.3 kg (0.67 lb)/0.51 (1.12 lb)
Certifications	CE (Class A) FCC (Class A)
EOS Support	Windows® 10 IoT, Linux
Software Support	AMS.AXView
Mounting	DIN-rail Wall Mounting
