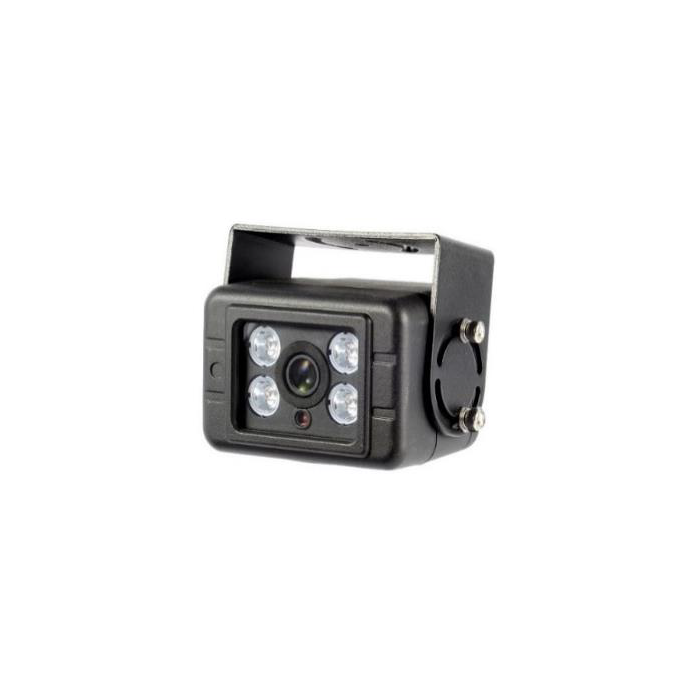

GPAL 2MP IP Rolling Shutter LPR AI Camera

SKU: GPCL-675A5GN_2.8mm, 4mm, 6mm, 8mm, 12mm, 16mm, 24mm

Single Lens Rolling Shutter, high-quality video image at 60fps @ 2M (1920x1080)

Key Features:

64bit Quad Core RISC CPU
1.2Tops NPU (AI)
Up to 60FPS@2M (1920x1080)
1/2.8” SONY IMX307 Rolling Shutter
CMOS Sensor
Quadruple Streaming
H.265, H.264, M JPEG, JPEG
ONVIF Profile S
Individual Day & Night camera setting
Support PoE
IP 68 rated
-40~80°C operating temp

Datasheet

Description

Activate your exclusive AI-powered recognition software on the AI-Ready camera. This technology is a game-changer for law enforcement, parking management, and various authorities, offering them a more efficient way to investigate and resolve cases with precision and adaptability.

Enhance your system's IR illumination capabilities by harnessing the power of IR LEDs. This ensures optimal performance for detecting both reflective and non-reflective license plates. The camera's outdoor housing is not only rugged and compact but also nitrogen-filled and boasts an IP68 rating, making it impervious to the most challenging environmental conditions.

Featuring the most sensitive sensor, this camera excels in low-light situations, providing top-notch video quality at 60 frames per second with a resolution of 2 megapixels (1920x1080) in progressive mode.

Download

CGI Commands

Compare GPI Camera LPR Range vs LENS Size

Datasheet

Drawing

More Information

Brand

GPI Korea

Specifications

CAMERA
SoC	EN675
Image Sensor	2.13MP 1/2.8” SONY IMX307 Rolling Shutter CMOS
Lens	2.8mm,4mm, 6mm, 8mm, 12mm, 16mm, 25mm
Image Sensor	2.13MP 1/2.8” SONY IMX307 Rolling Shutter CMOS
Number of Effective Pixels	2.13MP effective pixels
Min. Illumination	0.01 Lux
Video Compression	H.265, H.264, Motion JPEG, JPEG
Video Resolution	1920x1080, 1280x1024, 1280x720, 704x480, 640x480, 320x240
Max Frame rate	60FPS, 50FPS@2M
Video Streaming	Motion JPEG and H.264/265 Triple Streaming (Simultaneously) Additional JPEG streaming (total quadruple streaming) Independently Controllable frame rate and bandwidth
Time Stamp	Supported (Date/Time Only) in primary stream
Simultaneous clients	Live-cast for up to 16 clients
Video Analytics	Intrusion Detection, Line Crossing, Object Counting, Object Tracking, Tampering, General Detection, Abnormal Detection
AI	Object Detection (Humans/Vehicles/Bicycles etc.), Face Detection
Noise Reduction	2DNR, 3DNR
NETWORK
LAN interface	10/100BaseT Ethernet auto-sensing
Supported protocols	HTTP, RTP/RTSP(Uni/Multicast), TCP/IP(v4/v6), UDP, FTP, Telnet, HTTPS, RARP, PPPoE, SNMP, PAP, CHAP, DHCP, NTP, SMTP client, uPnP& etc
ONVIF	Profile S
Web browsing	Video access from a Web browser
OPERATION ENVIRONMENTS
Operating Humidity	0~80% (non-condensing)
Operating Temperature	-40℃~ + 80℃
Power	IEEE 802.3af, PoE, 48VDC (MAX 57VDC)
Power Consumption	Max 550mA
