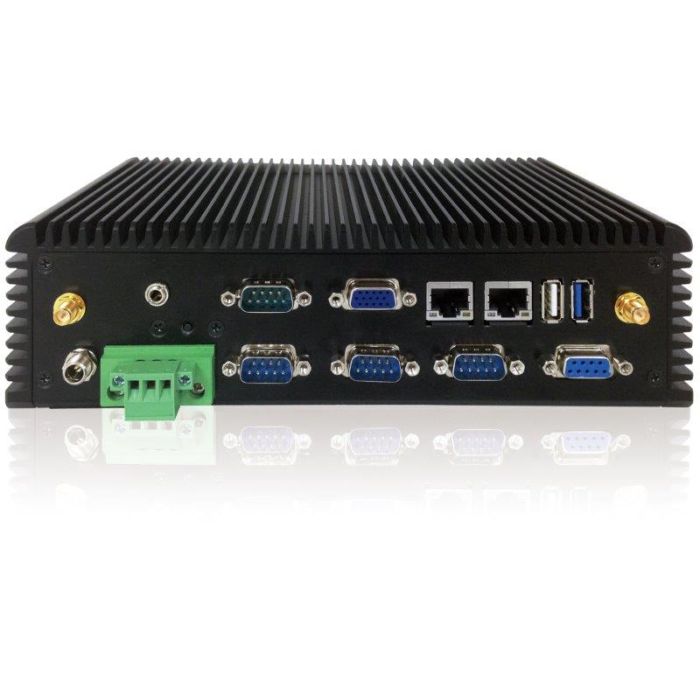

ECW-281B-BT Fanless Embedded System with Celeron J1900

SKU: ECW-281B-BTI-J1/2GB

Fanless embedded system with WAFER-BTi, Intel Celeron J1900 2.42 GHz processor

Key Features:

  • Fanless system with Intel Celeron J1900 Processor
  • Supports four COM ports (three RS-232, one RS-422/485)
  • Wide operating temperature: -20°C ~ 60°C with SSD
  • 1 x Wall mount bracket
  • Optional VESA 100 to DIN-Rail mounting kit
Datasheet

Description

Fanless embedded system with WAFER-BTi, Intel Celeron J1900 2.42 GHz processor

Key Features:

  • Fanless system with Intel Celeron J1900 Processor
  • Supports four COM ports (three RS-232, one RS-422/485)
  • Wide operating temperature: -20°C ~ 60°C with SSD
  • 1 x Wall mount bracket
  • Optional VESA 100 to DIN-Rail mounting kit

Download

Datasheet
User Manual

More Information

Brand IEI Integration Corp.
Specifications

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
Chipset:SoC
System Memory:
1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)
I/O Interface
I/O Ports 1 x USB 3.0
3 x USB 2.0
Ethernet:
LAN 1: PCIe GbE by Intel® I210 controller
LAN 2: PCIe GbE by Intel® I211 controller
COM Port:
3 x RS-232
1 x RS-422/485
Digital I/O:8-bit digital I/O
Display:1 x VGA
Resolution:VGA: Up to 2560x1600@60Hz
Audio:1 x Line out
Wireless:1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card slot (supports mSATA)
1 x Half-size PCIe Mini card (only for iRIS)
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5” SATA 3Gb/s HDD bay
Color
Color Black
Dimensions
Dimensions 229 x 64 x 132
Weight
Weight 2.1 kg / 3.9 kg
Environment
Operating Temperature -20°C~60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing

Ordering Information

ECW-281B-BTi-J1/2GB-R20 Fanless embedded system with WAFER-BT-R20,with Intel® Celeron J1900 2GHz, 4 serial ports,with 2GB DDR3L pre-installed SO-DIMM memory,12VDC in, 60W power adapter, black, RoHS

Package Contents

Package Content

  • 1 x Power cord

  • 1 x Wall mount bracket

  • 1 x 12V 60W power adapte

  • 1 x Screw set
