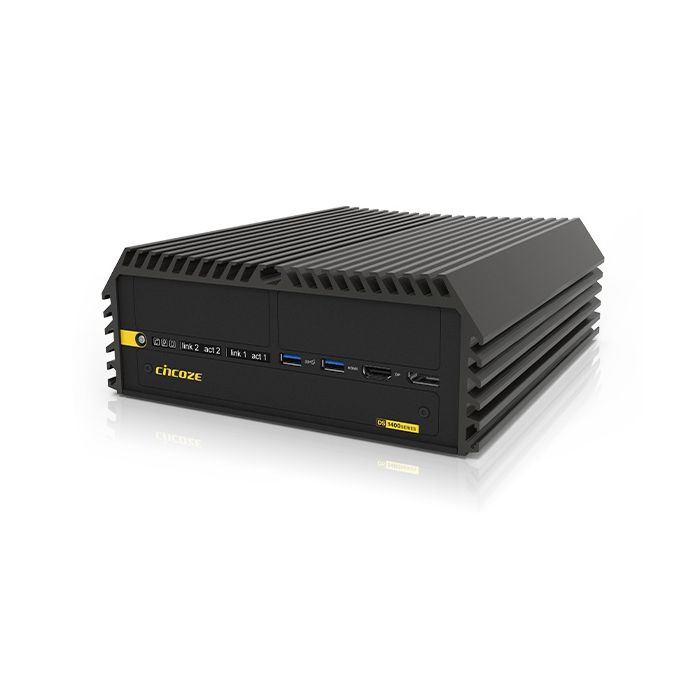

DS-1400 13/12th Gen High Performance Rugged Embedded Computer
13/12th Gen. Intel Core, Supports up to 2x PCI/PCIe Expansion Slot
Key Features:
- Intel® 13/12th Gen Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHz, 64GB
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- Up to 2x PCI/PCIe expansion slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
- Support Intel® OpenVINO™ Dev Kit
- Intel® ESDQ (Edge Software Device Qualification) Certified: the Edge Insights for AMR software package
Description
The DS-1400 Series is a high-performance, expandable, and rugged embedded computer, boasting outstanding performance as well as rich industrial I/O interfaces and robust functionalities. To meet various application needs, it has dual PCI/PCIe expansion capability and it can also flexibly expand the required I/O and specific functions through Cincoze's unique CMI, CFM, and MEC modules. Moreover, the DS-1400 Series has passed multiple international certifications, ensuring stable and reliable performance in diverse harsh environments. It is an ideal choice for manufacturing and railway applications.
Rapid Processing and Inference
The DS-1400 Series supports 13/12th gen Intel® Core™ i9/i7/i5/i3 (Raptor Lake-S/Alder Lake-S) processors based on the Intel 7 process, with up to 24 cores (8P + 16E) and 32 threads, delivering more than 1.35x the speed of Comet Lake-S platform. The Intel® Xe architecture of the UHD 770 graphics chip boosts GPU image classification inference performance to 2.8x the speed of Comet Lake-S, providing the processing performance needed for AI and edge computing.
Industrial I/O and Modular Expansion
The DS-1400 Series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and quad independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and IGN (power ignition sensing).
PCI/PCIe Add-on Cards
The DS-1400 Series accommodates up to dual PCI/PCIe expansion slots. It can support a maximum of one 110W add-on card with dimensions of 111 x 235 mm. This flexible slot allows integration of I/O, GPU, image capture, data acquisition, and motion control cards to suit specific application needs.
Adjustable PCIe Card Retainer
A patented adjustable PCIe card retainer can securely fasten add-on cards. This unique design effectively prevents the cards from loosening due to vibrations in high-vibration environments, ensuring the stable operation of the system.
Robust and Reliable
The DS-1400 Series is built tough, reflected in its industrial-grade protection design and industry certifications in different fields. In addition to features such as wide temperature (-40 - 70°C), wide voltage input (9 - 48 VDC), overvoltage, overcurrent, and ESD protection, it also complies with the US military shock vibration standard MIL-STD-810G. Product safety and reliability are further ensured with internationally recognized UL 62368-1 safety certification. For more secure railway computing, it also passes the EMC EN 50121-3-2 standard in EN 50155.
Download
More Information
| Brand | Cincoze | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering Information
|
Model No. |
Description |
|---|---|
|
DS-1400-R10 |
13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
|
DS-1401-R10 |
13/12th Generation Intel Core Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
|
DS-1402-R10 |
13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slot |
|
√ DS-1400 Series Embedded System x1 |
√ Heatsink Pack x1 |
|
√ Wall Mounting Kit x1 |
√ Screw Pack x1 |
|
√ Power Terminal Block Connector x 1 |
√ Remote Function Terminal Block Connector x 2 |
|
√ Fan Terminal Block Connector x 1 |
|
Model No. |
Description |
|---|---|
|
CMI-LAN01-R12 |
CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
|
CMI-M12LAN01-R12 |
CMI Module with 4x M12 Intel I210 GbE LAN Ports |
|
CMI-XM12LAN01-R10 |
CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
|
CMI-10GLAN03-R10 |
CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
|
CMI-COM02 |
CMI Module with 4x RS232/422/485 Serial Ports |
|
CMI-ICOM01 |
CMI Module with 4x Electrical Isolated RS-232 Serial Ports |
|
CMI-DIO02 |
CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
|
MEC-LAN-M102-30 |
Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
|
MEC-USB-M102-30 |
Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
|
MEC-COM-M212-DB9 |
Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
|
UB1004 |
Universal Bracket with 4x DB9 Cutout |
|
UB1010 |
Universal Bracket with 4x M12 Cutout |
|
UB1012 |
Universal Bracket with 4x RJ45 Cutout |
|
UB1018 |
Universal Bracket with DIO Cutout |
|
UB1028 |
Universal Bracket with 2x RJ45 Cutout |
|
UB1030-R10 |
Universal Bracket with 4x M12 X-Coded Cutout |
|
UB0303 |
2x Universal Bracket each with 1x DB9 Cutout |
|
UB0311 |
Universal Bracket with 2x RJ45 Cutout |
|
UB0314 |
Universal Bracket with 2x USB Cutout |
|
CFM-PoE03 |
CFM Module with PoE Control Function, Individual Port 25.5W |
|
CFM-IGN101 |
CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
|
FAN-EX101 |
External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
|
FAN-UB100 |
Exhaling fan with 4pin Connector, Universal Bracket |
|
FAN-UB101 |
Inhaling fan with 4pin Connector, Universal Bracket |
|
GST120A24-CIN |
Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST220A24-CIN |
Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
|
GST360A24-CIN |
Adapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug and TUBES, Level VI |
|
RSD-200D-24 |
Railway Single Output DC-DC Converter 200W / DC 24V |
|
RC-E16-01 |
Riser Card with 1 x PCIex16 Slot |
|
RC-PI-01 |
Riser Card with 1 x PCI Slot |
|
RC-E8E8-R10 |
Riser Card with 2 x PCIex8 Slots |
|
RC-E16E1-01 |
Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 75W. |
|
RC-E16E1-02 |
Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 130W. |
|
RC-E16PI-01 |
Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
|
RC-PIPI-01 |
Riser Card with 2x PCI Slots |
