4x4 MiMo 4G/5G + Wifi, GNSS Sharkfin Antenna

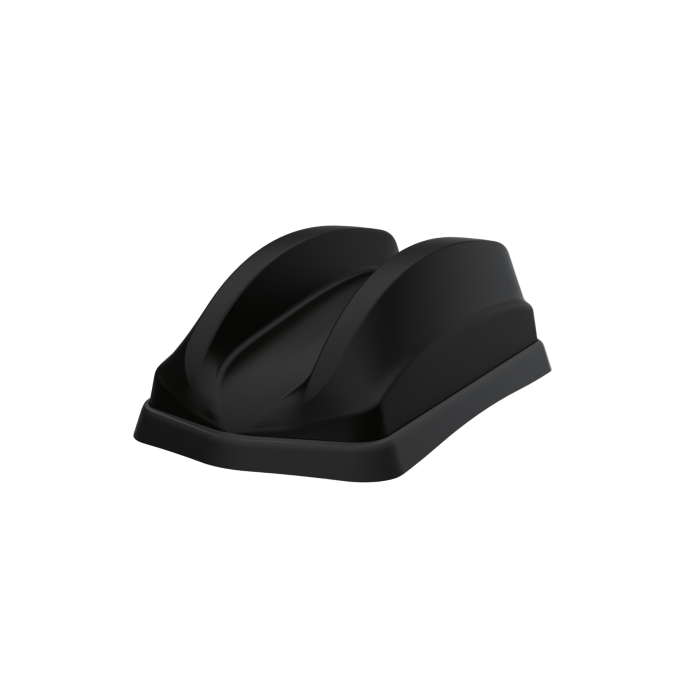

The GPS[X]D4[X]-6-60[-X] is a dual sharkfin style housing advanced 4G/5G, GPS/GNSS, and WiFi antenna. The housing has a 4x4 MiMo antenna for 4G/5G (617-960/1427-6000MHz), as well as a 6x6 MiMo dual-band WiFi antenna that supports WiFi 6e. For LTE Band 13/14 operation, it can include up to four active GPS/GNSS antennas, each with a 26dB gain LNA and advanced filtering. There is an integral mounting stud for an external antenna whip, as well as a blanking cap if this function is not needed. When a comms whip is used, the antenna must be mounted on a metal panel; otherwise, it can be mounted on a non-metallic panel and still provide similar performance.

The dual fin design provides multiple antenna functions while remaining unobtrusive, making it ideal for public safety (overt/covert), industrial, and transportation applications that require a cost-effective, efficient, and robust antenna. The antenna protects a vehicle's resale value by requiring only a single hole for installation. It also reduces vehicle damage, installation time, cost, and visual impact.

Key Features:

• Distinctive Automotive SharkFin design
• Up to a 15-in-1 Combination Antenna Solution
• Covers all 4G/5G LTE bands, WiFi 6e and GPS/GNSS bands
• 4x4 MiMo 600-6000MHz LTE antenna elemments
• Offers up to 6x6 MiMo WiFi 6e, and up to 4x GPS/GNSS
• Allows for external VHF, UHF or combination whip for voice radio connectivity
• Can come as a complete antenna kit with extension cables for a plug-and-play solution for any 5G vehicle router
• IP69K certified and UN ECE 118 certified
• Provides the user with an overt/covert all-in-one antenna solution
• Applications include:
  • Public safety
  • Mass transit
  • Utilities & Industrial
