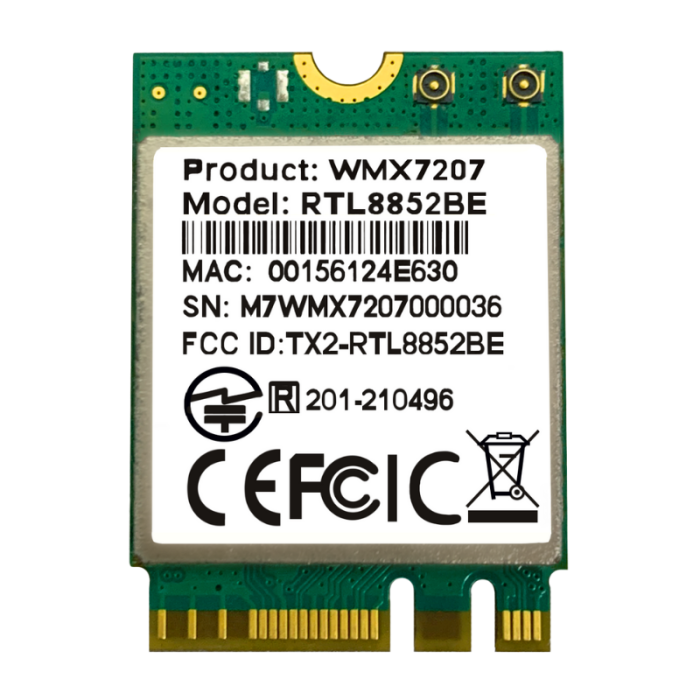

WMX7207 Wi-Fi 6 802.11ax 2x2 Dual-band M.2 2230 Module
Wi-Fi 802.11ax 2x2 Dual-band M.2 2230 Module
Key Features:
- Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- Dual-band 2.4 GHz and 5 GHz
- 2x2 MU-MIMO
- Bluetooth 5.2
- Realtek RTL8852BE chipset
- PCIe (Wi-Fi), USB 2.0 (Bluetooth)
- Two I-PEX MHF4 antenna connectors
- M.2 2230 form factor (22 × 30 × 2.21 mm)
- –40°C to +85°C operating range
- CE, FCC, IC certified
Description
The EmWicon WMX7207 is a high-performance M.2 2230 wireless module featuring 2x2 MU-MIMO Wi-Fi 6 (802.11ax) and Bluetooth 5.2, based on the Realtek RTL8852BE chipset. It supports PCIe for WLAN and USB 2.0 for Bluetooth, with two I-PEX MHF4 antenna connectors. Designed for industrial and embedded applications, it operates in a temperature range of –40°C to +85°C and meets CE, FCC, and IC certification standards.
Download
More Information
| Specifications |
|
|---|
Ordering Information
WMX7207 Wi-Fi 802.11ax 2x2 Dual-band M.2 2230 Module
