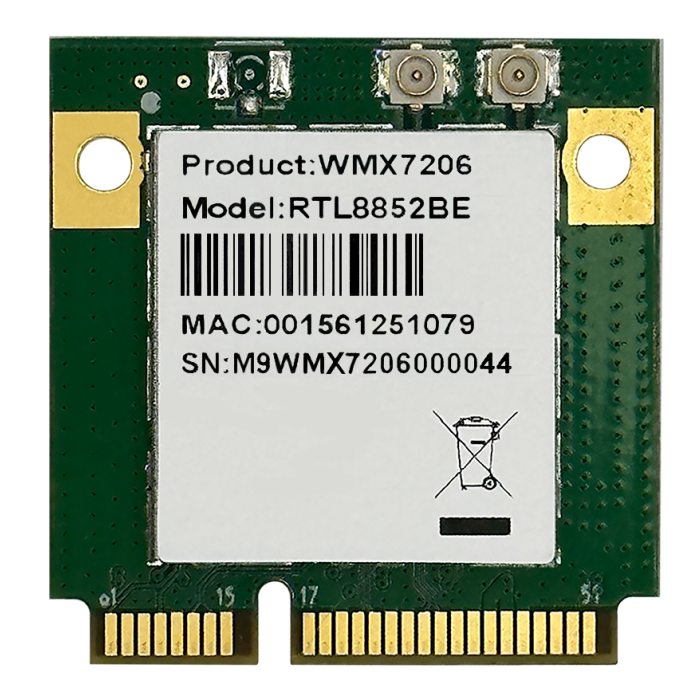

WMX7206 Wi-Fi 802.11ax 2x2 Dual-band mPCIe Module
Wi-Fi 802.11ax 2x2 Dual-band mPCIe Module
Key Features:
- Wi-Fi 6 support (802.11a/b/g/n/ac/ax)
- Dual-band 2.4 GHz and 5 GHz
- 2x2 MU-MIMO for efficient data transmission
- Bluetooth 5.2
- Realtek RTL8852BE chipset
- PCIe v2.1 (WLAN), USB 2.0 (Bluetooth)
- Half-size Mini PCIe (29.9 × 30 × 2.8 mm)
- CE, FCC, IC certified
Description
The EmWicon WMX7206 is a half-size Mini PCIe module that supports IEEE 802.11a/b/g/n/ac/ax wireless standards and Bluetooth 5.2. It features a 2x2 MU-MIMO design and operates on both 2.4 GHz and 5 GHz bands. Built on the Realtek RTL8852BE chipset, it interfaces via PCIe v2.1 for WLAN and USB 2.0 for Bluetooth. The module includes two U.FL connectors for antenna connection and is designed for industrial environments with an operating temperature range of –40°C to +85°C. The WMX7206 is certified for CE, FCC, and IC compliance.
Download
More Information
| Specifications |
|
|---|
Ordering Information
WMX7206 Wi-Fi 802.11ax 2x2 Dual-band mPCIe Module
