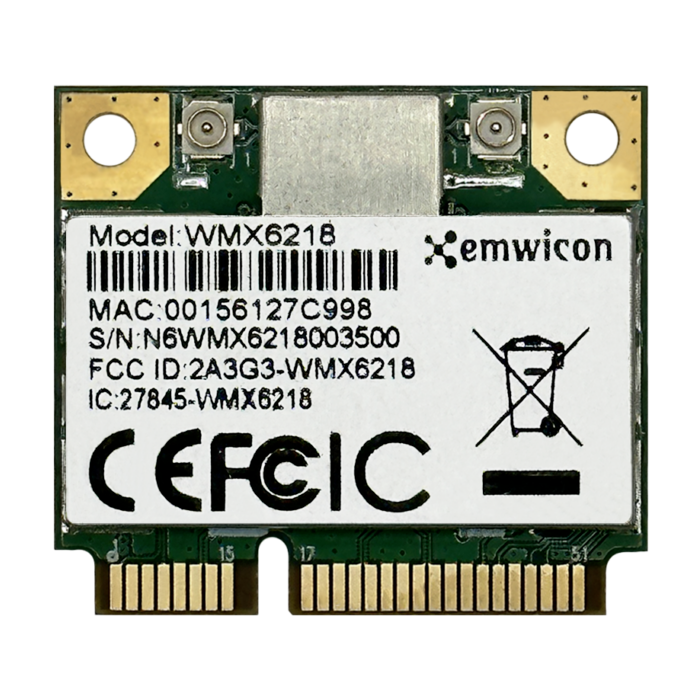

WMX6218 Wi-Fi 5 802.11ac Dual-band Half-mPCIe Module
WiFi 5 802.11ac 2×2 MU-MIMO module for 2.4/5 GHz Wireless & Bluetooth 5.0 mPCIe (Half) Module
Key Features:
- Wi-Fi 5 (802.11ac/a/b/g/n)
- Dual-band 2.4 GHz and 5 GHz
- 2x2 MU-MIMO for efficient data transmission
- Bluetooth 5.0
- Realtek RTL8822CE chipset
- PCIe (WLAN), USB 2.0 (Bluetooth)
- Two U.FL antenna connectors
- Half-size Mini PCIe (29.9 × 30 × 2.8 mm)
- –40°C to +85°C operating range
- CE, FCC, IC certified
Description
The EmWicon WMX6218 is a compact half-size Mini PCIe module that integrates dual-band Wi-Fi 5 (802.11ac/a/b/g/n) and Bluetooth 5.0 connectivity. Powered by the Realtek RTL8822CE chipset, it supports 2T2R (two transmit, two receive) MIMO technology, delivering wireless data rates up to 867 Mbps across 2.4 GHz and 5 GHz bands. The module features two U.FL connectors for antenna connections and complies with PCI Express Base Specification Revision 2.1 for WLAN and USB 2.0 for Bluetooth. Designed for industrial and embedded applications, it operates within a temperature range of –40°C to +85°C and is compatible with Windows 10, Linux, and Android platforms. The WMX6218 is CE, FCC, and IC certified, ensuring reliable performance in various environments.
Download
More Information
| Specifications |
|
|---|
Ordering Information
WMX6218 Wi-Fi 5 802.11ac Dual-band Half-mPCIe Module
