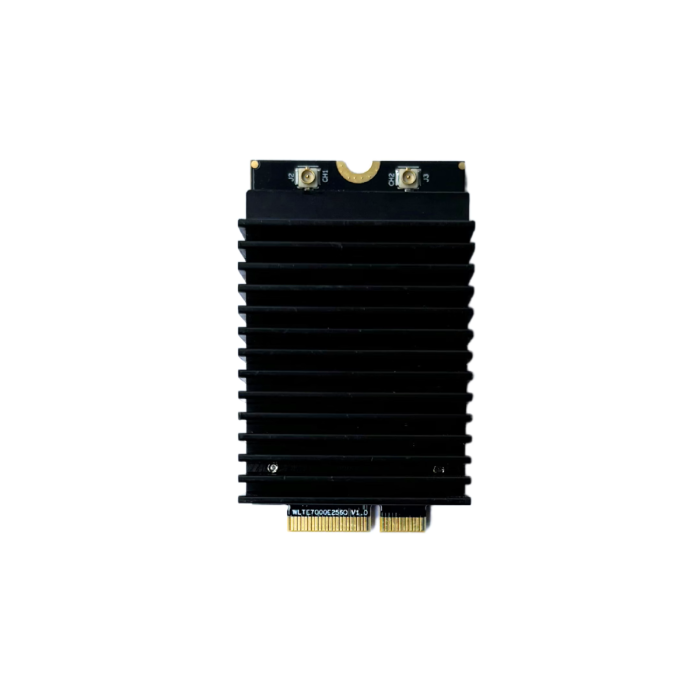

WLTE7002E55 Dual-Band Concurrent WiFi 7 Module (802.11be)

Product Overview

The WLTE7002E55 is a high-performance 2×2 MU-MIMO WiFi 7 module operating concurrently on two 5 GHz bands. It utilizes Qualcomm’s QCN6274 (commercial grade) or QCN9274 (industrial grade) “Waikiki” series chipsets, offering advanced features like OFDMA, Multi-Link Operation (MLO), and support for up to 4096-QAM. This module is ideal for applications requiring high throughput and low latency, such as enterprise networks, industrial automation, and IoT devices.

Key Features

Dual-Band 5 GHz Concurrent Operation

• Operates simultaneously on 5 GHz Low (5.180–5.320 GHz) and 5 GHz High (5.500–5.825 GHz) bands
• Reduces interference between bands, enhancing overall network performance

2×2 MU-MIMO Technology

• Supports multiple clients simultaneously, improving efficiency in high-density environments

• Delivers up to 4324 Mbps physical data rate per band

Advanced Modulation and Channel Support

• Supports up to 4096-QAM for higher data throughput

• Compatible with channel widths of 20/40/80/160/240 MHz at both 5 GHz Low and High bands

Multi-Link Operation (MLO) and Preamble Puncturing

• MLO reduces latency and aggregates throughput across multiple links

• Preamble Puncturing improves spectral efficiency by allowing the use of portions of the spectrum that are not occupied by legacy devices

Industrial and Commercial Grade Options

• Available with QCN6274 for commercial applications

• QCN9274-I variant offers extended temperature range (-20°C to 70°C) and FIPS L2 security for industrial-grade deployments.

Dimensions Drawings
