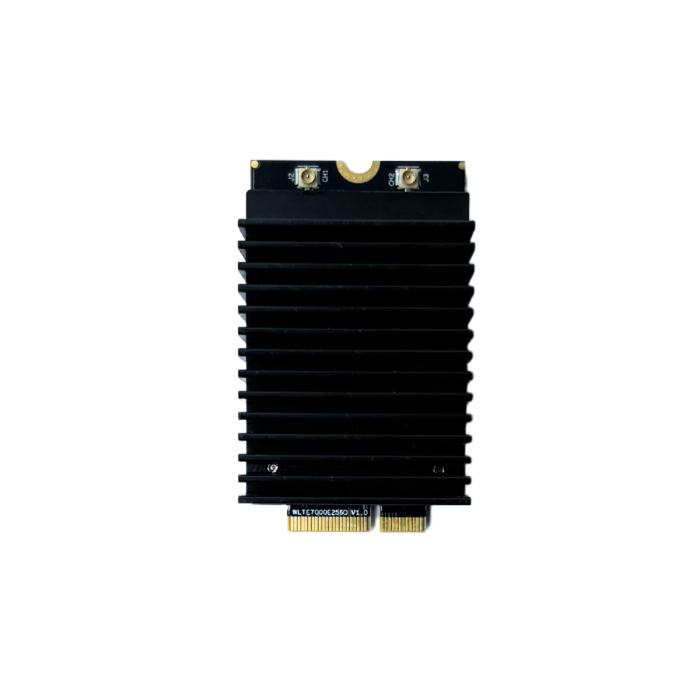

WLTE7002E26 Dual-Band Concurrent WiFi 7 Module (802.11be)
QCN6274 WiFi 7 (802.11be) 2×2 MU-MIMO 2.4+6GHz Dual Band Module with Diplexer
Key Features:
- Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade
- Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade
- M.2 E Key Interface with PCIe 3.0
- The diplexer combines the 2.4GHz and 6GHz signals into one single dual-band antenna
- Based on WK03.2 reference design
- Supports up to 4096-QAM
- -20°C to 70°C operating temperature
Description
Product Overview
WLTE7002E26 is a Dual-Band Concurrent 2.4+6GHz WiFi 7 (802.11be) module. It is based on Qualcomm’s QCN6274 or QCN9274 ‘Waikiki’ series radio solution. This is a 2T2R (2×2) MU-MIMO 2.4+6GHz solution and is available in both commercial grade (QCN6274) and industrial grade (QCN9274).
Key Features
Dual Band Concurrent Operation
- Transmit and receive simultaneously on 2.4 GHz and 6 GHz
- Enables flexible connectivity and better spectrum usage
2×2 MU-MIMO
-
Supports multiple clients at the same time
-
Improves network efficiency in dense environments
High Performance WiFi 7
-
Supports up to 4096-QAM for higher throughput
-
Includes Multi-Link Operation for aggregated bandwidth and reduced latency
Compact and Easy Integration
-
M.2 E-Key form factor fits small devices
-
Diplexer design allows a single dual-band antenna
Industrial and Commercial Options
-
Commercial grade for standard environments
-
Industrial-grade supports a wider temperature range and enhanced security
Dimensions Drawings
Download
More Information
| Brand | Compex Systems | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
Standard
|
Ordering Information
WLTE7002E26
QCN6274 2x2
802.11b/g/n/ax/be support
2.4+6GHz Dual-Band Concurrent
M.2 E Key interface with PCIe 3.0 Module
WLTE7002E26-I
QCN9274-I 2x2
802.11b/g/n/ax/be support
2.4+6GHz Dual-Band Concurrent
M.2 E Key interface with PCIe 3.0 Module
