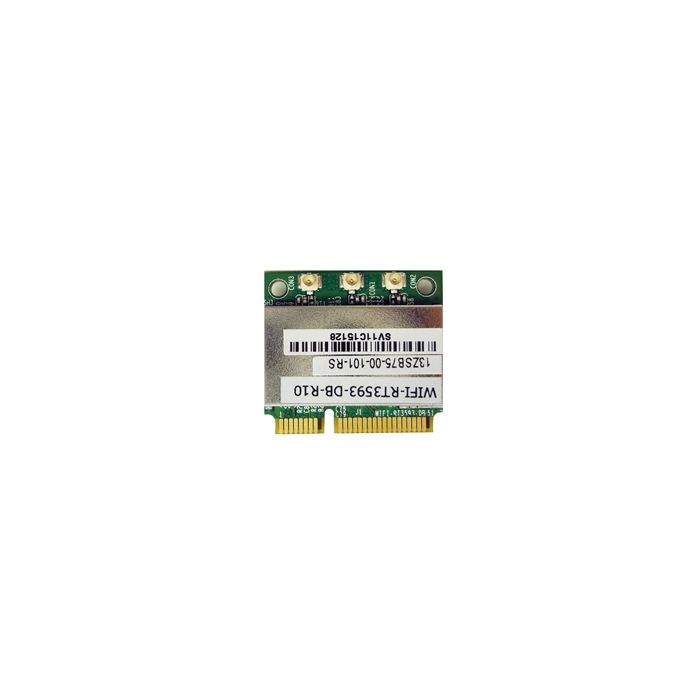

WIFI-RT3593-DB

_Standards

_{IEEE 802.11a/b/g/n, Wi-Fi compliant}

_Interface

_{PCIe Mini card}

_Rate

_{450 Mbps PHY rate in 3T3R mode}

_{Controller Chip}

_{Ralink RT3593}

_Connectors

_{3 x U.FL (I-PEX) antenna connectors}

_Security

_{WEP 64/128, WPA, WPA2, WAPI}

_{Frequency Range}

_2.4/5GHz

_{Modulation Type}

_{802.11a (OFDM)}

_{802.11b (DSSS): CCK, DQPSK, DBPSK}

_{802.11g (OFDM): BPSK, QPSK, 16-QAM, 64-QAM}

_{802.11n (OFDM): BPSK, QPSK, 16-QAM, 64-QAM}

_{Supported OS}

_{Windows XP, CE6.0, XPE, 2000, ME, 98SE, Vista 32/64, Windows 7 32/64, Linux, MAC}

_{Receiver Sensitivity}

_{802.11 a: -71dBm (Tpyical) at 54 Mbps}

_{802.11 b: -80dBm (Tpyical) at 11 Mbps}

_{802.11 g: -73dBm (Tpyical) at 54 Mbps}

_{802.11 n: -71dBm (Tpyical) at 450 Mbps}

_{Power Consumption}

_{[email protected] in continue Tx}

_{[email protected] in continue Rx}

_Temperature

_{Operating: -10°C ~ 70°C Storage: -40°C ~ 150°C}

_Humidity

_{Operating: 10% ~ 90%, non-condensing}

_{Storage: 5% ~ 95%, non-condensing}

_Dimensions

_{28 mm x 30 mm x 4 mm}

_Weight

_{NW: 11g}
