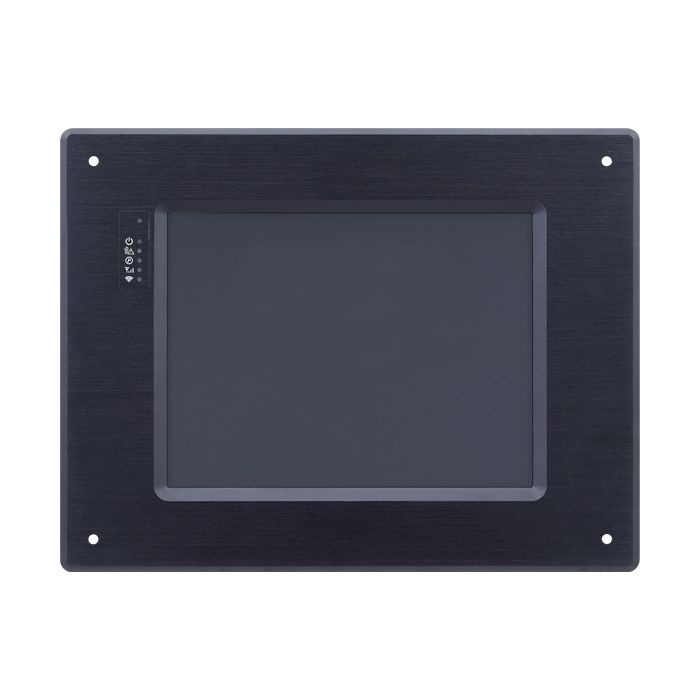

vROK3030-A-B 10.4” Railway Panel PC with Atom x6414RE

SKU: vROK3030-A-B


10.4” Railway Panel-Mount Computer with Intel Atom® x6414RE Processor

Key Features:

  • Intel Atom® x6414RE processor, TDP 9W
  • 10.4” TFT LCD monitor with PCAP touch
  • IPS LCD with a wide viewing angle and resolution 1024x768
  • Sunlight readable capability: 1,200nits LCD brightness
  • 1 x HDMI®, 1 x DP video outputs for triple displays
  • 1 x Isolated CAN bus 2.0
  • 4 x CVBS input for analog cameras (work with optional capture card)
  • 2 x PoE ports for IP cameras (optional)
  • Panel-mount design suitable for diverse applications
  • EN 50155, class OT3, certificated for railway
Datasheet

Description

Product Overview

The vROK3030-A-B is a 10.4-inch panel-mount railway computer built for human-machine interfaces and passenger information systems. It runs on the Intel Atom® x6414RE processor, supports both Windows and Linux, and is designed to deliver clear displays and dependable performance in rail environments.

Key Features

Display & Visibility

  • 10.4-inch IPS panel with 1024×768 resolution and PCAP touch input

  • Sunlight-readable display with up to 1,200 nits brightness for high visibility in bright ambient light

Video & Display Outputs

  • HDMI and DisplayPort video outputs allow up to three displays for information signage, infotainment, or advertising

Camera & Security Inputs

  • Supports four analog camera inputs with an optional capture card

  • Optional dual PoE ports for connecting IP cameras

Interfaces & Expansion

  • Isolated CAN bus 2.0 for secure vehicle network connections

  • Mini PCIe and two M.2 slots for storage, capture cards, and wireless (WLAN/WWAN) connectivity

Railway-Grade Certifications & Design

  • Compliant with EN 50155 railway standard, Class OT3

  • Panel-mount design that integrates cleanly into train interiors

Processor & Operating Systems

  • Intel Atom x6414RE processor, 9 W TDP for efficient performance

  • Supports Windows and Linux for flexible deployment

Dimensions Drawings





Download

Datasheet

More Information

Brand Nexcom
Specifications

LCD Panel

  • 10.4-inch TFT LCD panel with LED backlight

  • 1024x768 pixels

  • Brightness: 1200cd/m² (typical)

  • Viewing angle: 170° (H)/170° (V)

  • Contrast ratio: 900:1 (typical)

Touch Screen

  • Projected capacitive

  • Anti-glare coating surface

  • Transmission rate: 85% ± 3%

CPU

  • Intel Atom® x6414RE processor, TDP 9W

Memory

  • 1 x 260-pin DDR4 3200 SO-DIMM, up to 32GB

  • Default 2666MHz 4GB with In-Band ECC (IBECC)

Video Output

  • 1 x HDMI® 1.4b, up to 3840x2160@30Hz

  • 1 x DP 1.4, up to 4096x2160@60Hz

Storage

  • 1 x M.2 Key M 2280 socket (SATA 3.0 or PCle 3.0 x1)

  • 1 x mSATA (occupied Mini PCIe slot)

Expansion

  • 1 x M.2 Key E 2230 socket (USB 2.0, PCIe 3.0 x2)

  • 1 x Full size Mini PCIe socket (USB 2.0, PCIe 3.0/SATA 3.0)

  • 1 x M.2 Key B 3042/3050/3052 socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module, BOM optional 1 x full size Mini PCIe socket (USB 2.0, USB 3.2 Gen 2 (BOM optional)) for LTE module, with 1 x external micro-SIM slot, 1 x internal micro-SIM slot

GNSS and Onboard Sensor

  • 1 x Default u-blox NEO-M9N GNSS module for GPS + QZSS/Glonass/Galileo/Beidou

  • 1 x 3D accelerometer and 3D gyroscope

LAN and Power over Ethernet

  • 2 x LAN M12 X-coded, 10/100/1000/2500Mbps, Intel® I225-IT
    (optional PoE 802.3 af/at, max. 30W, w/ VIOD-POE2-01)

Security

  • TPM 2.0: Infineon SLB 9670VQ2.0 FW7.62

I/O Interface-Lateral

  • Right side
    - 1 x System reset button
    - 1 x USB 3.2 Gen 2 Type-A connector
    - 1 x micro-SIM slot w/ cover

I/O Interface-Rear

  • 2 x DB9 (COM1/COM2) for full RS-232/422/485 (w/ isolation)

  • 1 x Power connector, M12 A-coded 5-pin

  • 2 x 10/100/1000/2500Mbps LAN, M12 X-coded 8-pin

  • 1 x M12 A-coded 8-pin for 2 x USB 2.0

  • 1 x Line in (stereo), 2 x Line out (setreo) (AUDIO, DB9, female)

  • 1 x HDMI® output

  • 1 x DP output

  • 1 x M12 (MULTI PORT, A-coded 17-pin)
    - 4 x DI (w/ isolation)
    - 2 x DO (w/ isolation)
    - DC 14V~48V power input for DIO isolation
    - 1 x Isolated CAN bus 2.0B
    - 1 x Power button
    - 4 x Composite video input

  • 1 x RP-SMA connector hole for Bluetooth

  • 3 x RP-SMA connector hole for WLAN

  • 2 x SMA connector hole for WWAN

  • 1 x SMA connector for GNSS

  • 1 x Ground connector

Mechanical

  • Cooling system: fanless

  • Enclosure: metal

  • Ingress protection: front panel IP65

  • Mounting: panel mount, VESA 75 mount

  • Dimensions: 336.0mm (W) x 257.6mm (D) x 73.7mm (H)

  • Cutout dimension: 285.6mm x 207.2mm

  • Weight: 3.9kg

Power Management

  • DC 24V/36V (14V~48V) input, w/o isolation

  • DC 24V/110V input, w/ isolation (BOM optional)

  • Reverse protection, OCP & UVP

  • Selectable boot-up & shut-down voltage for low power protection by software

  • Setting 8-level power on/off delay time by software

  • 10~255 seconds WDT supported, setup by software

  • SDK (Windows/Linux) including utility and sample code

Environment

  • Operating temperature:
    - -30°C~70°C, 85°C for 10 minutes (w/ 9W TDP CPU, industrial SSD) with air flow
    - -30°C~60°C, w/ 9W TDP CPU, industrial SSD, PoE, with air flow

  • Storage temperature: -40°C~80°C

  • Relative humidity: 10%~90% (non-condensing)

  • Vibration (random): 2g@5Hz~500Hz (in operation, SSD)

  • Vibration
    - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4
    - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24

  • Shock
    - Operating: MIL-STD-810H, Method 516.6,
    Procedure I, trucks and semi-trailers = 40g
    - Crash hazard: MIL-STD-810H, Method 516.6,
    Procedure V, ground equipment = 75g

Operating System

  • Windows 10

  • Windows 11

  • Linux

Standards/Certifications

  • CE

  • FCC Class A

  • EN 50155:2017
    - Ambient temperature EN 50155, Class OT3
    - Interruptions of voltage supply class S1
    - Supply change over class C1
    - EMC EN 50121-1:2017, EN 50121-3-2:2016+A1:2019
    - Environment EN 60068-2-1, EN 60068-2-2, EN 60068-2-30
    - Shock and vibration IEC 61373 Class B
    - Protective coating class PC1 (PC2, by request)

  • EN 45545-2:2020 (PCB)

Ordering Information

vROK 3030-A-B (P/N: 10A30303003X0)
10.4” railway panel-mount computer with Intel Atom® x6414RE
processor, 4GB DDR4, DC 24V/36V input (w/o isolation), 1 x M.2 Key M
2280 socket for storage
