VNS-15W01 15.6" Ultra Slim Panel PC
15.6" Venus Panel PC
Key Features:
- Intel Atom x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
- 2GB / 4GB RAM, 32GB / 64G eMMC
- PCAP Touch
- 10/100/1000 Ethernet (PXE Boot)
- Touch button (Power/ Brightness/ Volume/ LED)
- DC 12~24V Input or Powered LAN 802.3AT
- NFC Reader
- Smart Card Reader
- AMIC
- 2.0MP Camera
- Speak 4Ω 2.0W/2.5W(MAX)
- LED Indicating Light Bar (Light colour: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
- 75 x 75mm VESA Mount
Enquire Now
Enquire about this product:

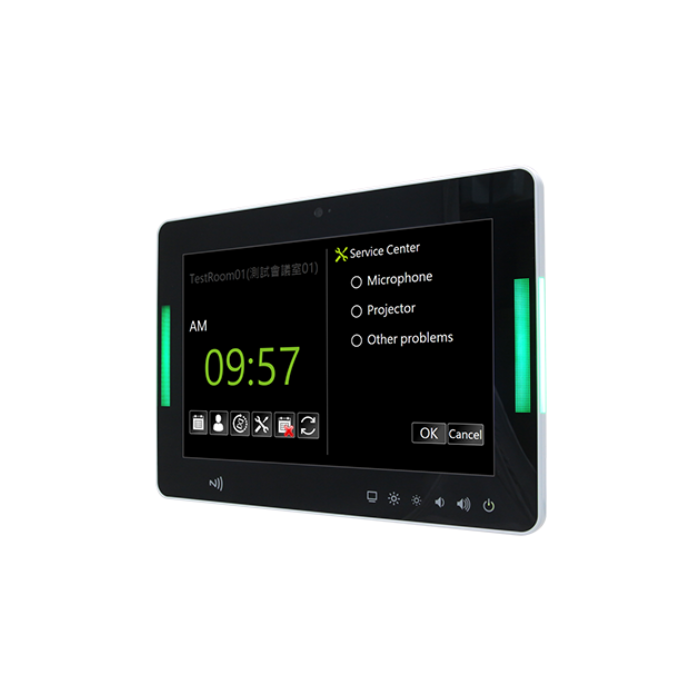

The VNS-15W01 is an ultra-slim panel PC measuring only 28mm thick. It is based on the Intel® Atom™ x5-Z8350 Processor. The unit is available with 2GB or 4RAM together with a choice of 32 or 64GB onboard eMMC storage.
The VNS-10W01 can be powered by DC 12/24v or POE which greatly reduced the cost of field installation
Other features include an NFC reader, a 2MP camera and Green or Red LED light bar illumination.
It's the ideal solution for a range of applications such as point of information, Check-in terminal and Access Control
Key Features:
- Intel Atom x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
- 2GB / 4GB RAM, 32GB / 64G eMMC
- PCAP Touch
- 10/100/1000 Ethernet (PXE Boot)
- Touch button (Power/ Brightness/ Volume/ LED)
- DC 12~24V Input or Powered LAN 802.3AT
- NFC Reader
- Smart Card Reader
- AMIC
- 2.0MP Camera
- Speak 4Ω 2.0W/2.5W(MAX)
- LED Indicating Light Bar (Light colour: Green and Red, Illuminating area: 70*8mm(front),70*5mm(side))
- 75 x 75mm VESA Mount
| -System Information- | |
| Processor | Intel® Atom™ x5-Z8350: 2M Cache, up to 1.92 GHz |
| Platform Controller Hub | Intel x5-Z8350 |
| System Memory | 2GB / 4GB DDR3L RAM |
| Storage | |
| Storage | 32GB eMMC / 64GB eMMC |
| Panel | |
| LCD Size | 15.6" |
| Resolution | 1920x1080 |
| Luminance | 220 |
| Viewing angle | 178°(H/V) |
| Touch Type | PCAP |
| I/O | |
| External I/O Connector | 1 x RJ45 for RS232 or RS422 or RS485 2 x USB 2.0 Type A 1 x 10/100/1000 Ethernet 1 x 4-Pin 3.5mm Audio Jack |
| Internal I/O Connector | 1 x Touch Button interface 1 x eDP & Dual channel 24bit LVDS 1 x I2C interface for PCAP 5 x USB interface for PCAP, Camera and others 1 x Micro USB2.0 client (reserved) 1 x Micro SD connector 2 x LED Bar interface 1 x AMIC |
| Camera | 2.0MP Camera |
| Data Collection | |
| Camera | 2M pixel |
| NFC | NFC Reader |
| Wireless Communication | |
| WLAN | 802.11 b/g/n |
| Display | |
| Spec. & Resolution | LVDS: Max. resolution 1920x1280 @ 60Hz |
| Multiple Display | Windows support extended mode |
| Audio | |
| Speaker Output | 4Ω 2.0W/2.5W(MAX) |
| Certifications | |
| Certification Information | CE, FCC Class B |
| Ethernet | |
| LAN Chipset | Realtek RTL8111H(S)-CG |
| LAN Port | 1 x RJ45 |
| Power Requirement | |
| DC Input | Input: 100~240 Vac/50~60 Hz Output: 60W Adapter (12V @ 5A Adapter) |
| Mechanical & Environmental | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 60°C |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 2.5 kg |
| VESA | 75 x 75 |
| Dimensions(W x L x D) | 472.1 x 269 x 70.1 mm |
| Power Requirement | DC Input, 12~24V |
| Power Mode | DC jack or Powered LAN 802.3AT |
| Software Support | |
| OS Information | Windows 10 IoT (64 bit), Android 5.1(64 bit), Linux (64bit) |
| Ordering Information | |
| Ordering Information | VNS-15W01-BV37C-1R_15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, Ubuntu 19.04 VNS-15W01-BV38C-1R _15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, 2016 Windows 10 IoT VNS-15W01-BV38C-3R_15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, 2019 Windows 10 IoT VNS-15W01-BV39C-1R _15.6" Intel Atom Z8350, 2GB RAM, 32GB eMMC, Android 5.1 VNS-15W01-BW47C-1R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, Ubuntu 19.04 VNS-15W01-BW48C-1R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2016 Windows 10 IoT VNS-15W01-BW48C-3R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2019 Windows 10 IoT VNS-15W01-BW48C-5R_15.6" Intel Atom Z8350, 4GB RAM, 64GB eMMC, 2019 Windows 10 IoT w/ Handset |
