SKU: VMD3110

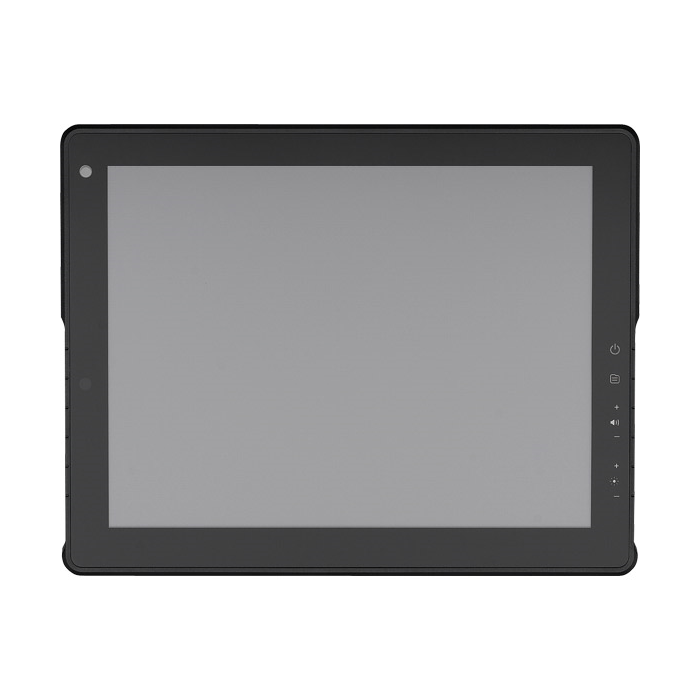

10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, ultraONE+ and CVBS Interfaces

Datasheet

Description

10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, ultraONE+ and CVBS Interfaces

· 10.4" XGA TFT LCD panel

· Slim bezel and compact design

· Can power off PC system with button on display

· ultraONE+ for multi-IO 10M transmission distance

· Projected capacitive touch screen with multi-touch

· Support four CVBS inputs to connect rear view camera

· High brightness display for outdoor applications

· Compliant with IP65

Datasheet

User Manual

* You have to Login or Register to download this file

Specifications

General	Enclosure: plastic PC + ABS Mounting: support VESA 75/100 Power input: 24VDC Power consumption: 12W Ingress protection: IP65 Dimension: 256.5 x 202.1 x 31.5 mm Weight: 1.64Kg, 4.16Lb
LCD Panel	10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical, after touch screen is 1080cd/m2) Contrast ratio: 500: 1 (typical)
Touch Screen Sensor	Projected capacitive touchscreen Surface hardness: 3H Multiple touch
I/O Interface-Front	1 x LED indicators (power on/off, auto back-light, MCU update) 2 x Built-in 1W 8ohm speakers IR remote sensor
I/O Interface-Lateral	On screen display buttons x 7 - Display power on/off - PC system power off - Volume control (+/-) - Brightness control (+/-)
I/O Interface-Bottom	1 x DB9 connector (male, integrating USB 2.0, 24VDC power-in, video and power button) to connect with NEXCOM telematics computer 1 x DB9 connector (female, CVBS1, CVBS2, CVBS3, CVBS4) to connect up to 4 x analog cameras
Environment	Operating temperature: -20°C to 60°C Storage temperature: -30°C to 80°C Vibration (random): 2.5g@5 ~ 500 Hz Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=20g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment=75g
Standards/Certifications	CE approval FCC Class B

VMD 3110-4PH1 (P/N: 10VD0311001X0)

10.4" XGA vehicle mount display with touch screen, ultraONE+ and CVBS input
