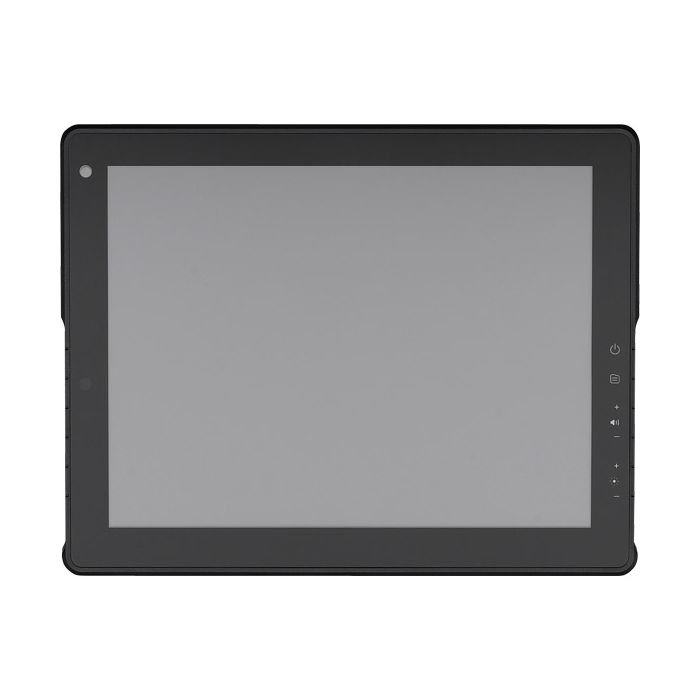

VMD3002 10.4" Vehicle Touch Display

SKU: VMD3002

10.4" XGA Vehicle Mounted Display with Projected Capacitive Touch Screen, VGA and CVBS Interfaces

Key Features:

  • 10.4" XGA TFT LCD panel
  • Slim bezel and compact design
  • Automatic/manual brightness control
  • Wide range power input from 9~36VDC
  • Projected capacitive touch screen with multi-touch
  • Support four CVBS inputs to connect rear view camera
  • High brightness display for outdoor applications
  • Compliant with IP65
Datasheet

Description

The VMD 3002 is a sturdy 10.4-inch TFT LCD monitor with improved brightness, a projected capacitive touchscreen, and a high-performance loud speaker. It is designed with a single cable to consolidate power, display, and other control signals, making installation easier and the connection more secure. It also has four analogue video inputs for displaying real-time video from the rear view cameras. The mechanical design of the VMD 3002 complies with IP65. It is an ideal solution for in-vehicle and outdoor applications due to its 1000nits ultra high brightness display and adaptive brightness control.

Key Features:

  • 10.4" XGA TFT LCD panel
  • Slim bezel and compact design
  • Automatic/manual brightness control
  • Wide range power input from 9~36VDC
  • Projected capacitive touch screen with multi-touch
  • Support four CVBS inputs to connect rear view camera
  • High brightness display for outdoor applications
  • Compliant with IP65

Download

Datasheet
User Manual
* You have to Login or Register to download this file

More Information

Specifications
General Enclosure: Plastic PC + ABS Mounting: Support VESA 75/100 Power Input: 9~36VDC Power Consumption: 18W Ingress Protection: IP65 Dimension: 256.5 x 202.1 x 31.5 mm Weight: 1.64Kg, 4.16Lb
LCD Panel 10.4-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical, after touch screen is 1080cd/m²) Contrast Ratio: 500:1 (typical)
Touch Screen Sensor Projected capacitive touchscreen Surface Hardness: 3H Multiple touch
I/O Interface-Front 1 x LED indicators (Power on/off, Auto Back-light, MCU update) 2 x Built-in 1W 8ohm speakers IR remote sensor
I/O Interface-Lateral On screen display buttons x 7
Display power on/off
OSD menu
Volume control (+/-)
Brightness control (+/-)
Auto configuration
I/O Interface-Bottom Pigtail with multiple IO interface
4 x CVBS connector
1 x Line-in
1 x VGA
1 x USB
1 x COM (TX/RX)
1 x Power input connector (9 ~ 36Vdc)
Environment Operating temperature: -20°C to 60°C Storage temperature: -30°C to 80°C Vibration (random): 2.5g@5~500 Hz Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers= 20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment= 75g
Standards/ Certifications CE approval FCC Class B

Ordering Information

VMD 3002-BS2 (P/N: 10VD0300205X0)
10.4" XGA vehicle mount display with touch screen, VGA and CVBS Interfaces
