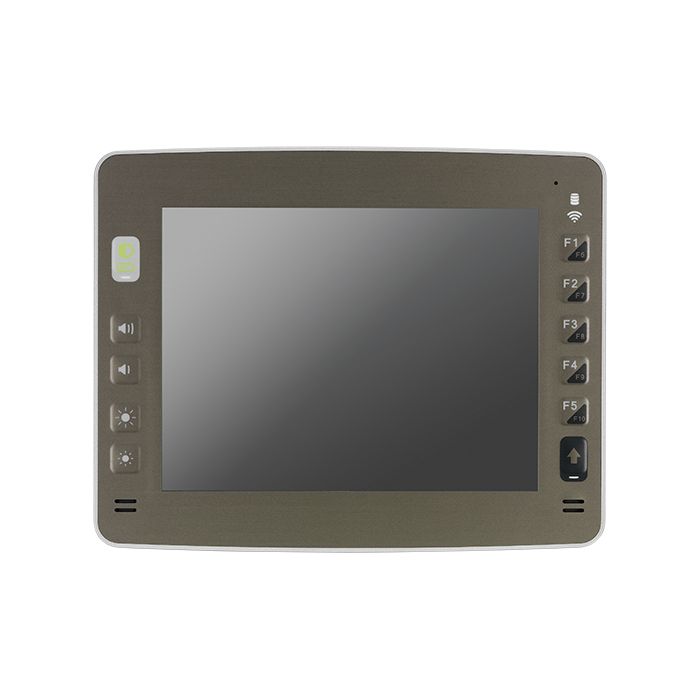

VMC4020 - 12" AIO Vehicle Computer

In stock
SKU
VMC4020
Brand: Nexcom

12.1" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65

Enquire Now
Enquire about this product:

12.1" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65



·         12.1" XGA TFT LCD monitor with 5-wire resistive touch

·         Built-in Intel Atom® x7-E3950 processor, 1.6GHz

·         Aluminum die-casting and fanless design

·         Analog camera x 3 (CVBS)

·         Ether of completer IP65 housing, or IP65 housing without I/O part

·         Automatic/manual brightness control

·         Isolated CANBus 2.0 x 2

·         10/100/1000Mhz for independent ethernet x 2

·         On screen F1 ~ F10 programmable function keys

·         Military standard for vibration and shock

·         UPS Battery & PoE 802.3af/at (optional)

·         iButton and RFID for ID identification

·         Micro SIM x 2

·         Wide range DC input from 9V ~ 60V DC in

·         Sunlight readable capability: 1,200nits LCD brightness

·         One expansion port reserved

·         Operating system: Windows and Linux

·         CE/FCC/EMark


LCD Panel

12.1-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA)

Brightness: 1200 cd/m² (typical)

Viewing angle: 170° (H):170°(V)

Contrast ratio: 750:1 (typical)

Touch Screen Sensor

5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3%

CPU & Chipset

Intel Atom® x7-E3950 processor dual core 1.6GHz

Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 2GB)

Expandable Storage

1 x CFast 1 x 2.5" SATA SSD bay

Expansion

3 x Full-size mini-PCIe socket (PCIe + USB)

1 x Full-size mini-PCIe socket (USB)

1 x CFast 2 x Micro SIM slot

I/O Interface-Front

LCD back light on/off Volume control (+/-) Brightness control (+/-)

Light sensor

4 x LED indicators (power/battery charging, WLAN, shift, storage)

F1 ~ F10 programmable function 2 x Built-in 2W speakers

I/O Interface-Lateral

Right Side:

1 x CFast card slot

1 x System reset button

1 x USB 2.0 host type A connector Left Side:

1 x Antenna for WWAN

I/O Interface-Bottom (VMC 4020-4A1, IP65)

1 x M12 (22 pins)

-1 x 10/100/1000, LAN1 (wake up on LAN)

-1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A)

-1 x DR (Odometer + Speed )

-2 x GPI

Source: 9V ~ 60V-in (default)

Sink: external 0V ~ 60VDC pull-high selected by software settings

Input High "1" Voltage: 3.3 ~ 60 VDC

Input Low "0" Voltage: 0 ~ 2 VDC

-2 x GPO

Source: 9V ~ 60V-in (default)

12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA

Sink: external max. 0.5A pull high 1 x M12 (21-pin)

-1 x Mic-in

-1 x Line-out

-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)

-2 x Isolated CANBus 2.0B

When installing CAN06, CAN2 becomes J1939/ISO15675-4

When installing CAN05, CAN2 becomes J1708

-1 x iButton 1 x M12 (5-pin)

-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) 1 x M12 (8-pin)

-Either of DC output or RFID

1 x DC output (12V/2A )

1 x RFID (Tx/Rx, 12V/2A) 1 x M12 (8-pin)

-1 x 10/100/1000, LAN2 (optional for 802.3af/at) 1 x M12 (8-pin)

-2 x USB Type A 1 x M12 (18-pin)

-Expansion port 1 x GPS Antenna SMA connector (On housing)

I/O Interface-Bottom (VMC 4020-4A0, Front IP65)

1 x Mic in and Line out 2 x RJ45 10/100/1000
-LAN1, wake up on LAN
-LAN2, optional for 802.3at 1 x USB type A

1 x DB9 full RS232/422/485 (RI, 5V/0.5A, 12V/05A)

1 x 26 pins connector:
-1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A)
-1 x RFID ( Tx/Rx )
-2 x Isolated CAN 2.0B
-1 x J1939/ISO15765-4 or J1708 (CAN05 or CAN06)
When installing CAN06, CAN2 becomes J1939/ISO15675-4
When installing CAN05, CAN2 becomes J1708
-1 x DR (Odometer + Speed)
-1 x iButton
-1 x GPI
Source: 9V ~ 60V-in (default)
Sink: external 0V ~ 60DC pull-high selected by software settings
Input High "1" Voltage: 3.3 ~ 60 VDC
Input Low "0" Voltage: 0 ~ 2 VDC
-2 x GPO
Source: 9V ~ 60V-in (default)
12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA
Sink:external external max. 0.5A pull high 1 x DB15 for expansion port 1 x 3-pin terminal block
-9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V)

I/O Interface-Top

2 x Antenna for Wi-Fi

Mechanical

Cooling system: Fanless Enclosure: Aluminum die castig

Mounting: VESA 75 Ingress protection: Complete IP65, or IP65 without covering the

bottom Dimension: 340mm(W) x 262mm(H) x 87mm(D) Weight: 5kg

Power Management

9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V) Reverse protection/over voltage protection/under voltage protection Ignition On/O control & programmable On/O delay timing Wake up by LAN1, SMS, RTC and ignition

Environment

Operating temperatures: Ambient with air -30°C to 60°C

Storage temperatures: -30°C to 70°C

Relative humidity: 10% to 90% (non-condensing)

Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock
Operating: MIL-STD-810G, Method 516.6,

Procedure I, trucks and semi-trailers = 40g

Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment = 75g

Operating System

Windows 10 Linux: YOCTO (by request)

Standards/Certifications

CE/FCC class B/E13
