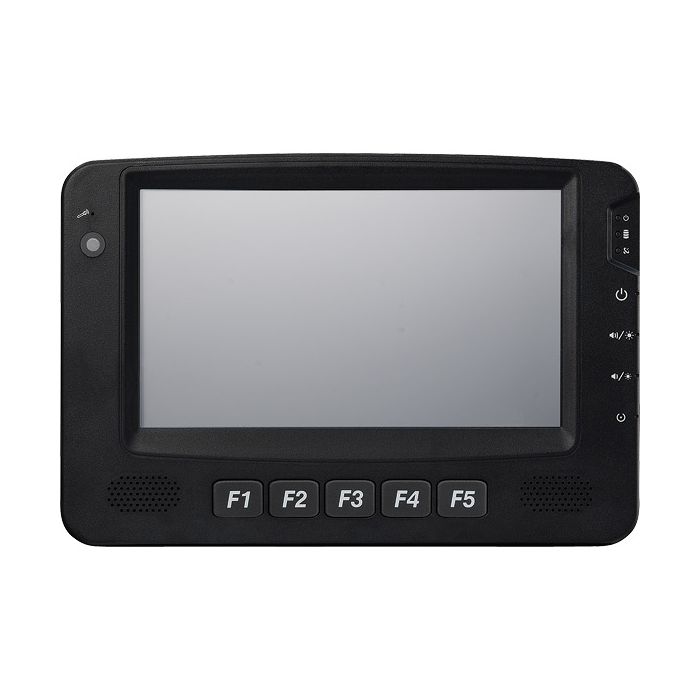

VMC1100 7" All-In-One Vehicle Computer

_{Cooling System: Fanless Enclosure: Plastic PC + ABS with aluminum die casting heatsink}

_{Mounting: Support VESA 75, stand mounting Four SMA Type antenna connectors of BT/Wi-Fi/WWAN/GPS}

_{Power Input: 9 ~ 36VDC input with Ignition}

_{Power Consumption: 26W}

_{Ingress Protection: Front panel IP54 Dimension: 213mm (W) x 145mm (H) x 50mm (D)(8.3" x 5.7" x 1.9")}

_{Weight: TBD}

_{7-inch TFT LCD Panel with LED Backlight 800 x 480 pixels (WVGA)}

_{Brightness: 400 cd/m² (typical)}

_{Contrast ratio: 600:1 (typical)}

_{4-wire resistant touch Anti-glare coating surface Transmission rate: 78 ± 3%}

_{Intel® Atom™ Dual Core E3825 1.33GHz}

<sub>One 204-pin DDR3L 1600MHz SO-DIMM slot (up to 4GB)
- Default 2GB</sub>

_{1 x SATAIII SATA DOM Slot (available option 16G and 32G)}

_{1 x Half mini-PCIe socket (PCIe + USB) for WLAN option}

_{1 x mini-PCIe socket ((USB + UART) for WWAN option)}

_{1 x External module for OBD/Battery module option(UART + USB)}

_{F1 ~ F5 functions key Light Sensor Internal Mic-in}

_{2 x Built-in 2W speakers}

_{3 x LED indicators (Power mode, Storage and WWAN status)}

<sub>Right side
- 1 x Micro SD card socket
- 1 x SIM card socket
- 1 x USB 3.0 host type A connector
- 1 x Mic-in, Line-out Left side
- 1 x Power button
- 1 x System reset button
- Volume up/down or Brightness up/dow</sub>

_{1 x 5-pin Circular connector for Power/Ignition input}

_{1 x RJ45 for LAN}

<sub>1 x RJ45 for Full RS-232 with 0V/5V/12V power supply (0.5A) 1 x DB9 (Male) for
- RX/TX or RS-485
- 2 x CAN Bus 2.0 1 x DB15 (Female) for
- GPS dead reckoning interface (optional)
- 2 x PWM, 2 x Analog Input, 3 x GPO, 3 x GPI
Analog Input requirement for Voltages are measured
Channel: 8
Voltage range: 0 ~ 38V
Resolution: 8 bit
Analog Input requirement for Frequency, Speed
Square wave
Frequency signal offset voltage range: 0 ~ 15VDC
Protection: +/- 500V spike
Frequency signal duty cycle range: 10% ~ 90%</sub>

_{1 x On board GPS module}

_{1 x WLAN or Bluetooth module for optional}

_{1 x WWAN module for optional}

_{Selectable boot-up & shut-down voltage for low power protection HW design ready for 8-level delay time on/off at user's self configuration Power on/off ignition, software detectable Support S3 and S4 suspend mode; wake on RTC and SMS}

_{Windows 8 Professional, WES8 Windows 7, WES7 Linux Fedora (kernel V3.2.0)}

_{Operating temperatures: Ambient with air -20°C to 60°C}

_{Storage temperatures: -30°C to 80°C}

_{Relative humidity: 10% to 95% (non-condensing)}

_{Vibration (random): 3g @5 ~ 500Hz Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers=20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g}

_{Load dump and inductive load protection Cold cranking protection Transient voltage protection Electrostatic discharge protection}

<sub>EMC
- CE, FCC class B Power
- SAE J1113
- SAE J1455
- ISO 7637-2 Safety
- EN 60950-1 LVD</sub>
